Hardware description
The nRF52833 DK board PCA10100 can be used as a development platform for the nRF52833 SoC. It
features an onboard programming and debugging solution.
In addition to radio communication, the SoC can communicate with a computer through USB and a virtual
COM port provided by the interface MCU.
8.1 Hardware drawings

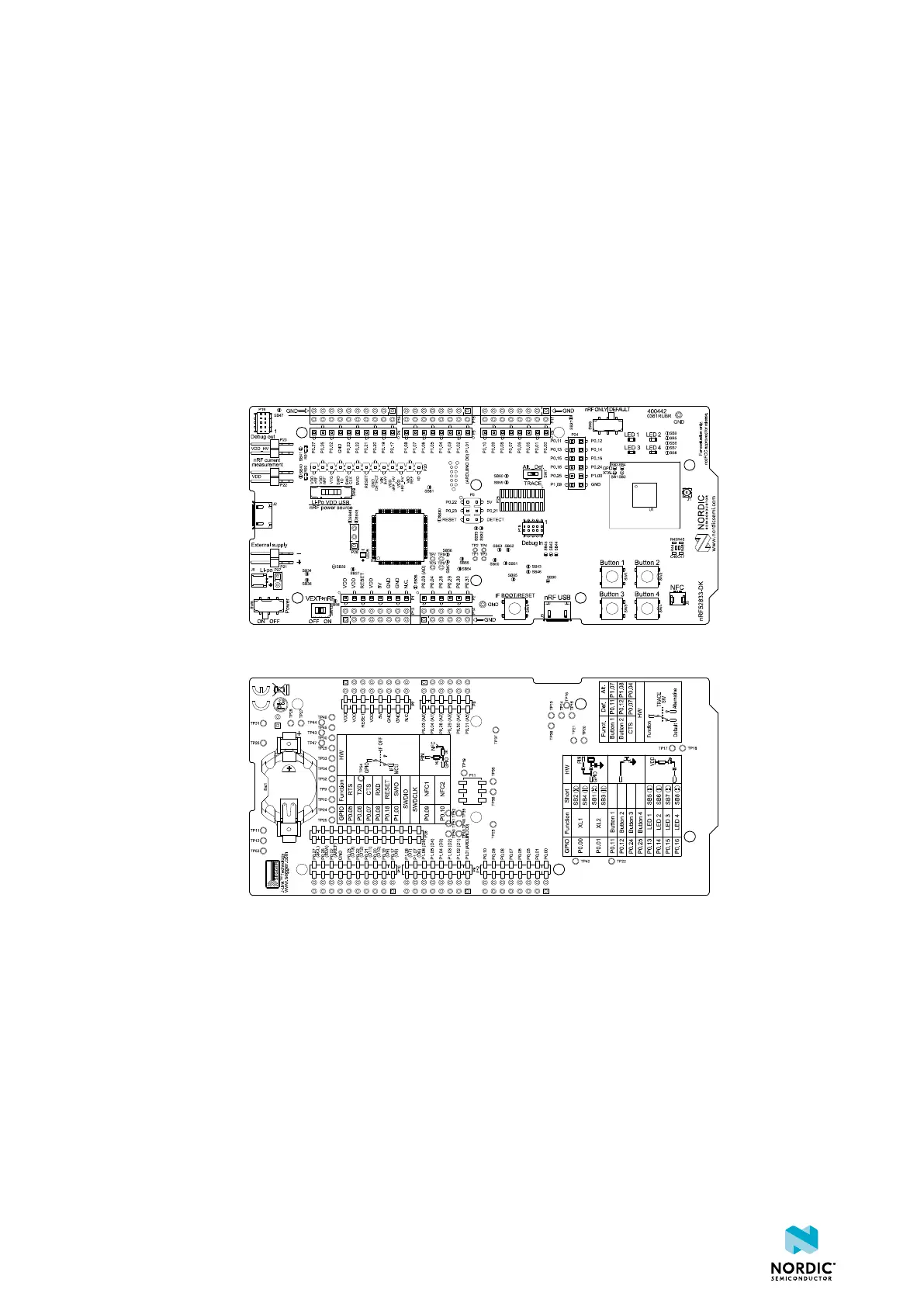

nRF52833 DK hardware drawings show both sides of the PCA10100 board.
Figure 3: nRF52833 DK board (PCA10100) front view
Figure 4: nRF52833 DK board (PCA10100) back view
8.2 Block diagram
The block diagram shows the connections between the different blocks.
