7

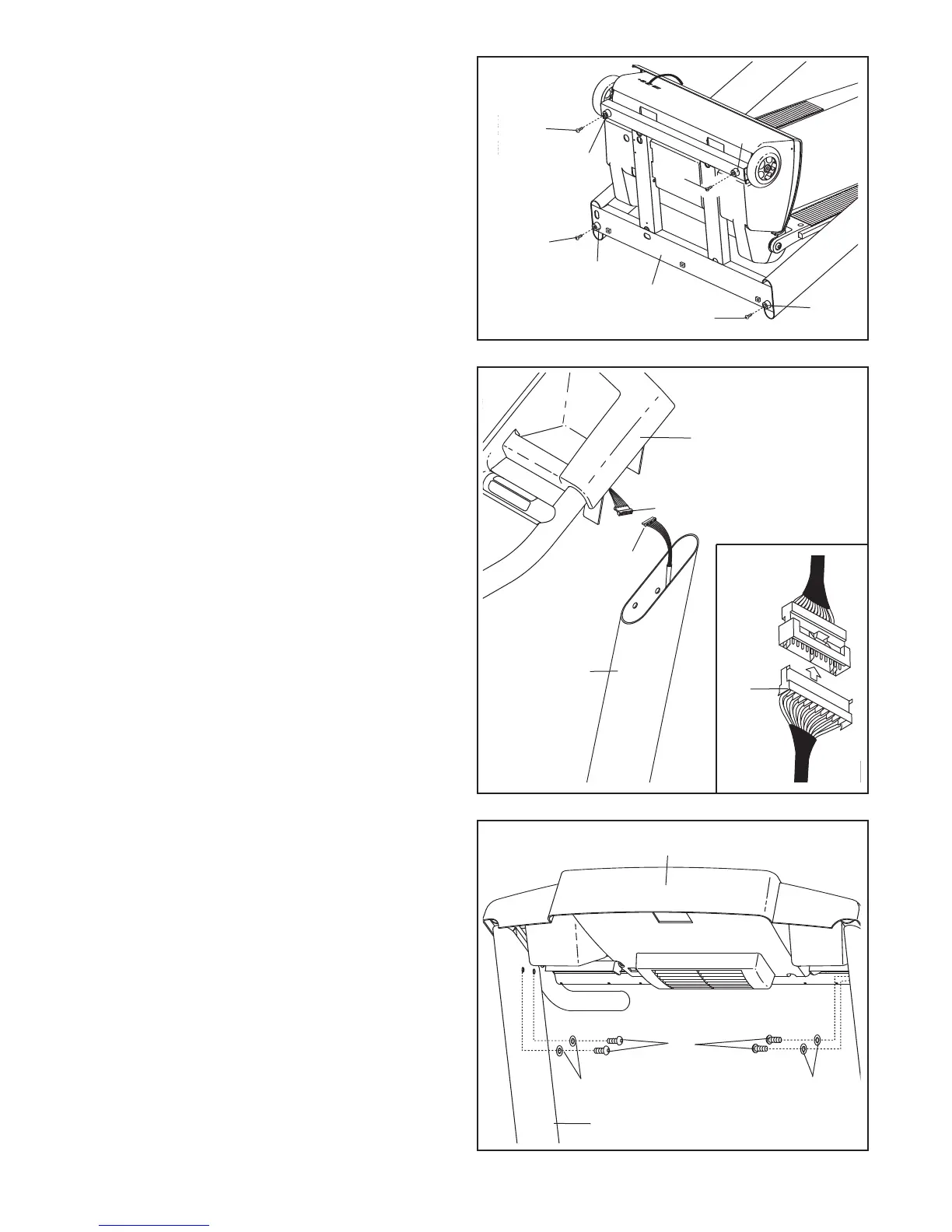

3. With the help of a second person, carefully raise
the Upright (20) to the vertical position. Remove
the band securing the Upright Wire Harness (73)
to the right Upright. Have a second person hold
the console assembly near the right Upright.
Connect the Upright Wire Harness (73) to the
console wire extending from the console assem-
bly. Make sure to connect the connectors
properly (see the inset drawing). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS
TURNED ON. Then, insert the connectors into
the right Upright (20).
3
20
81
82
81
81
81
Console
Assembly
Console Wire
82
82
2
82
2. Attach the four Base Pads (81) to the bottom of
the Upright (20) with the four 1" Tek Screws (82)
in the locations shown.
4. Carefully set the console assembly onto the top
of the Upright (20) as shown.
Make sure that no
wires are pinched. Attach the console assem
-
bly to the Upright with four Star Washers (67)
and four Handrail Bolts (72). Start all four
Handrail Bolts before tightening them.
4
73
20
72
20
67
67
73
Console Assembly
To Next Page
