6
ASSEMBLY
A
ssembly requires two persons.
S
et the treadmill in a cleared area and remove all packing materials.
D
o not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

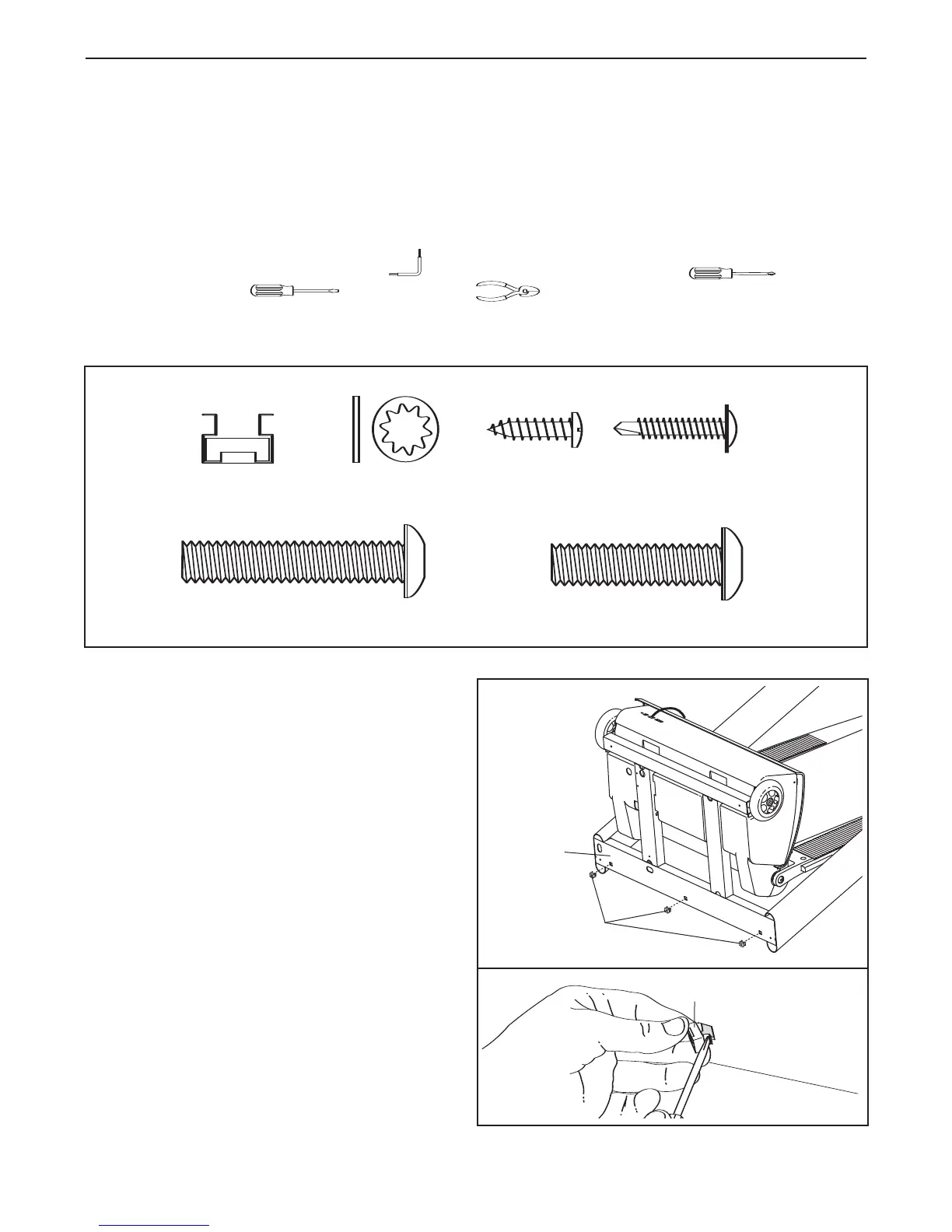

Assembly requires the included hex key and your own Phillips screwdriver ,
standard screwdriver , and wire cutters . For help identifying the assembly hard-
ware, see the hardware drawings below. To avoid damaging plastic parts, do not use power tools for as-
sembly.
1/2” Silver Screw
(48)–1
3/4” Tek Screw (58)–4
3
Spacer Screw (60)–2
1
Star Washer (67)–4
Screw (7)–2
1” Tek Screw (82)–4
Cage Nut (70)–3
P
Base Plate Bolt (77)–3
Handrail Bolt (72)–4
70
20
1
70
1. With the help of a second person, tip the Upright
(20) down as shown.
Insert the three Cage Nuts (70) into the three in-
dicated holes in the treadmill. To insert each
Cage Nut, first hook one side of the Cage Nut
into a hole. Then use a standard screwdriver to
press the other side of the Cage Nut into the
hole, as shown
To Next Page
