8

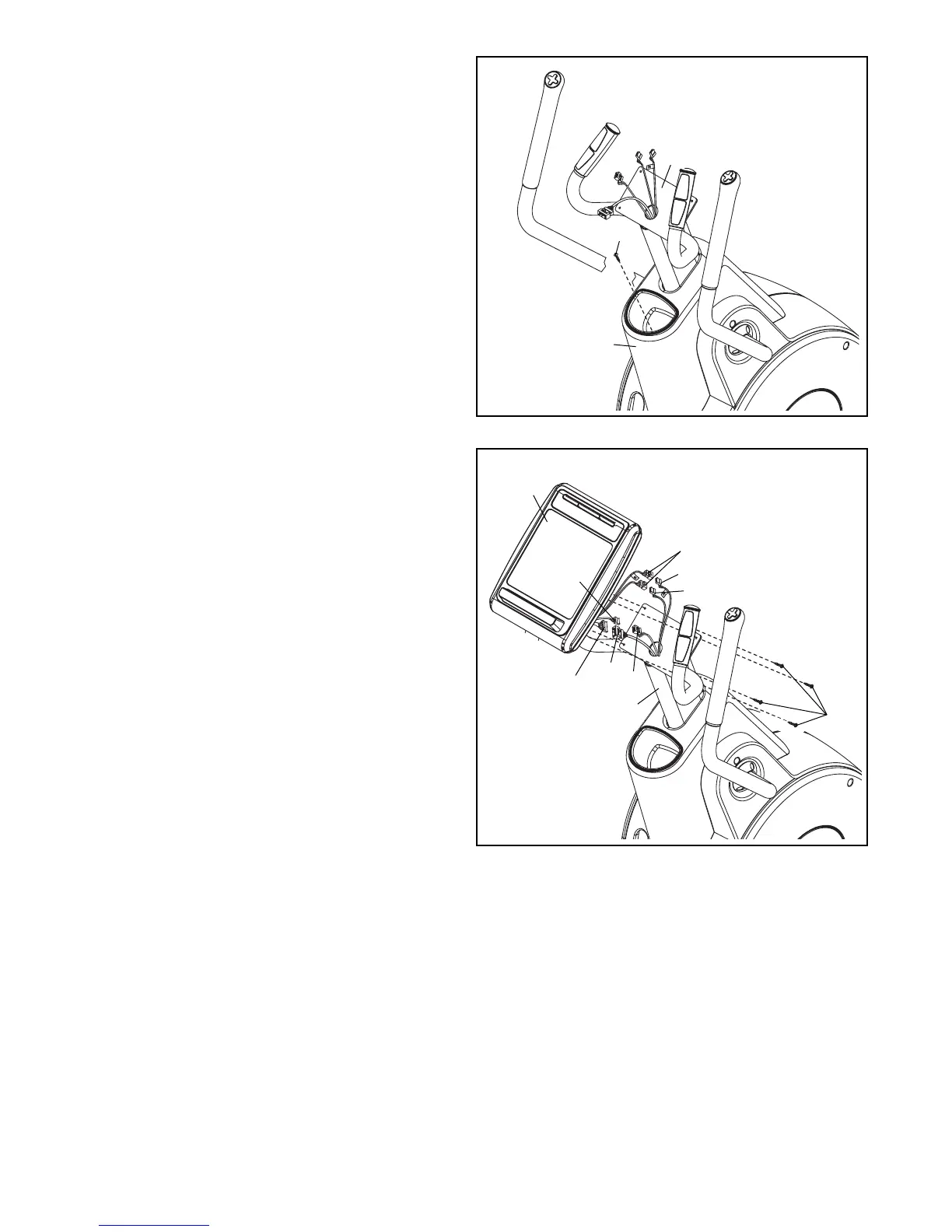

6. While a second person holds the Console (4)
near the Upright (3), connect the console wire to
the Wire Harness (46). Next, connect the con-
sole pulse wire to the Pulse Wire (64). Then,
connect the game wire marked with an “R” tag
to the Right Extension Wire (111), which is also
marked with an “R” tag. Connect the other game
wire to the Left Extension Wire (110). Insert the
excess wire downward into the Upright.
Tip: Avoid pinching the wires during this
step. Attach the Console (4) to the Upright (3)
with four M4 x 16mm Screws (90).
6
90
64
4
Game Wires
Pulse
Wire
5. Slide the Upright Cover (6) downward to the
bottom of the Upright (3). Reattach the Upright
Cover with a #8 x 1.75" Screw (95).
5
95
6
3
111
110
46
Console
Wire
3
Avoid pinching the
wires during this step
