7

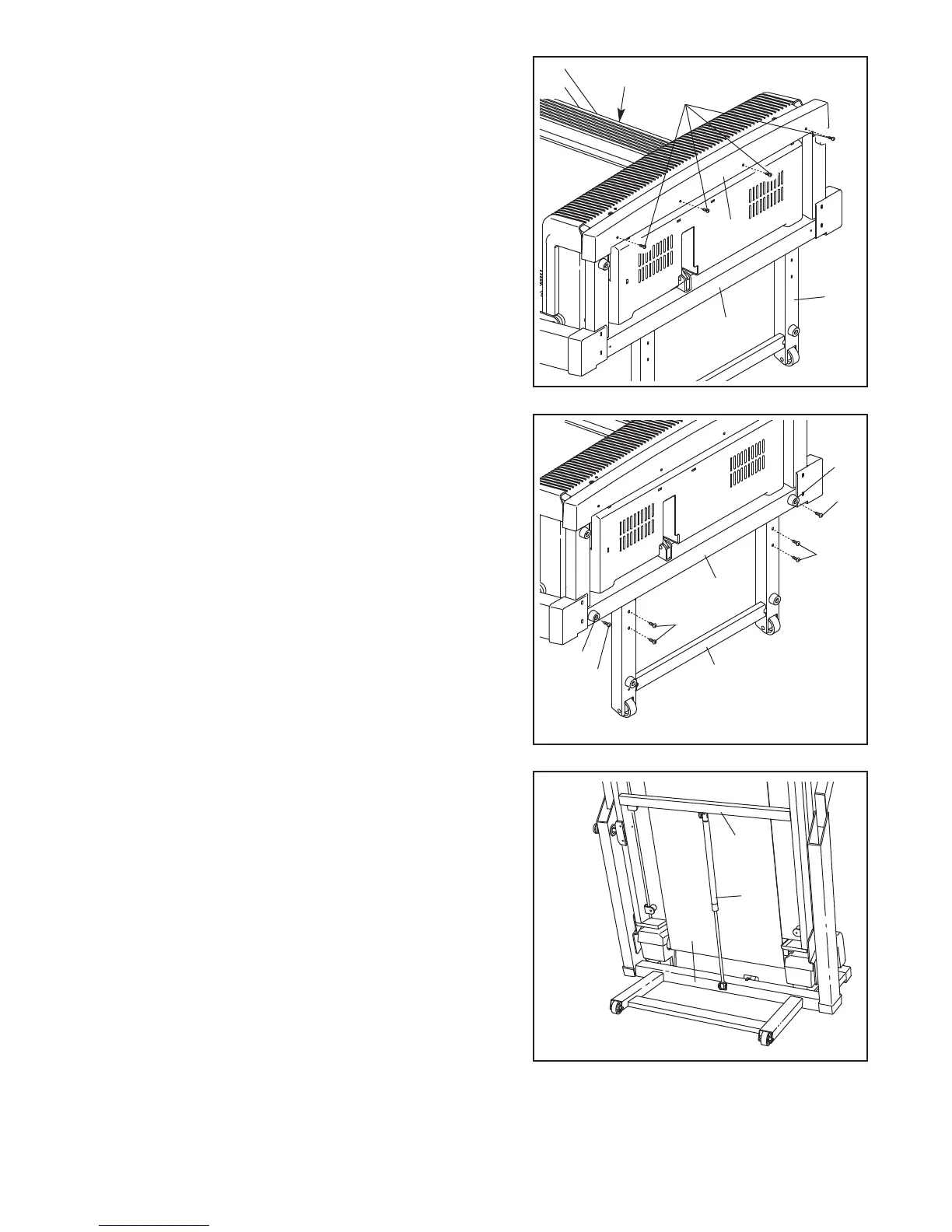

2. With the help of a second person, carefully tip the Frame
(55) and the Upright Base (85) down to the position
shown.
Make sure that the Base Extension (90) remains
in the Upright Base.
Carefully slide the Base Cover (92) onto the bottom of the
Upright Base (85). Attach the Base Cover with four 3/4”
Tek Screws (44); start all four Screws before tighten-
ing them. Be careful not to overtighten the Screws.
92
90
44
55
85
2
3. Attach the Base Extension (90) with four Extension
Screws (87);
start all four Extension Screws before
tightening them.
Attach the two Thin Base Pads (83) to the Upright Base
(85) in the locations shown with two 1” Tek Screws (82).
Note: One replacement Base Pad (83) may be included.
Use the Base Pad to replace any Base Pad that becomes
worn.
With the help of a second person, carefully tip the Upright
Base (85) back to the vertical position.
87
85
83
82
87
90
83
82
3
4. With the help of a second person, raise the Frame (55) to
the vertical position.
While the other person holds the Frame (55), press the
smaller end of the Shock (86) onto the bracket in the cen-
ter of the Upright Base (85).
Make sure to orient the
Shock as shown. Press the other end of the Shock onto
the bracket in the center of the Frame. It may be neces-
sary to tip the Frame forward or back to attach the Shock.
Do not tip the Frame forward past the vertical position.
Carefully lower the Frame (55) to the floor.
85
4
86
55
