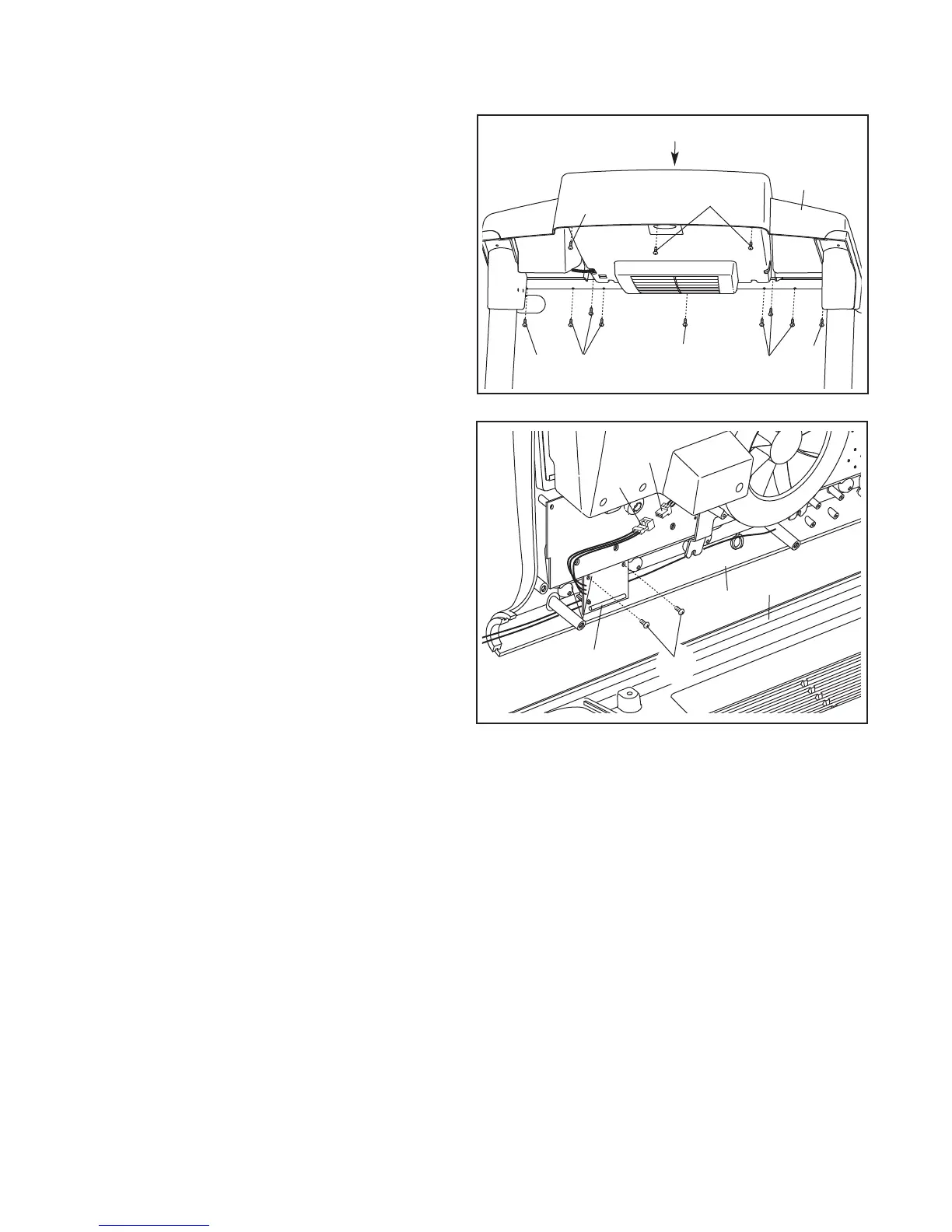

1. Make sure that the power cord is unplugged.
Remove the indicated Screws (99) from the back
of the Console Base (98).
2. While a second person holds the Console (105),
connect the wire on the receiver (A) to the indi-
cated wire extending from the Console.
Next,
hold the receiver so the small cylinder is ori-
ented as shown and is facing away from the
Console. Attach the receiver to the Console in
the location shown with the two included Small
Screws (B).
3. Make sure that no wires are pinched. See
drawing 1. Reattach the Console (105) to the
Console Base (98) with the Screws (99). Discard
the other wires included with the receiver.
If you purchase the optional chest pulse sensor (see page 24), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
99
98
99
105
1
99
99
99
99
99
Wire
98
Cylinder
105
A
2
B
