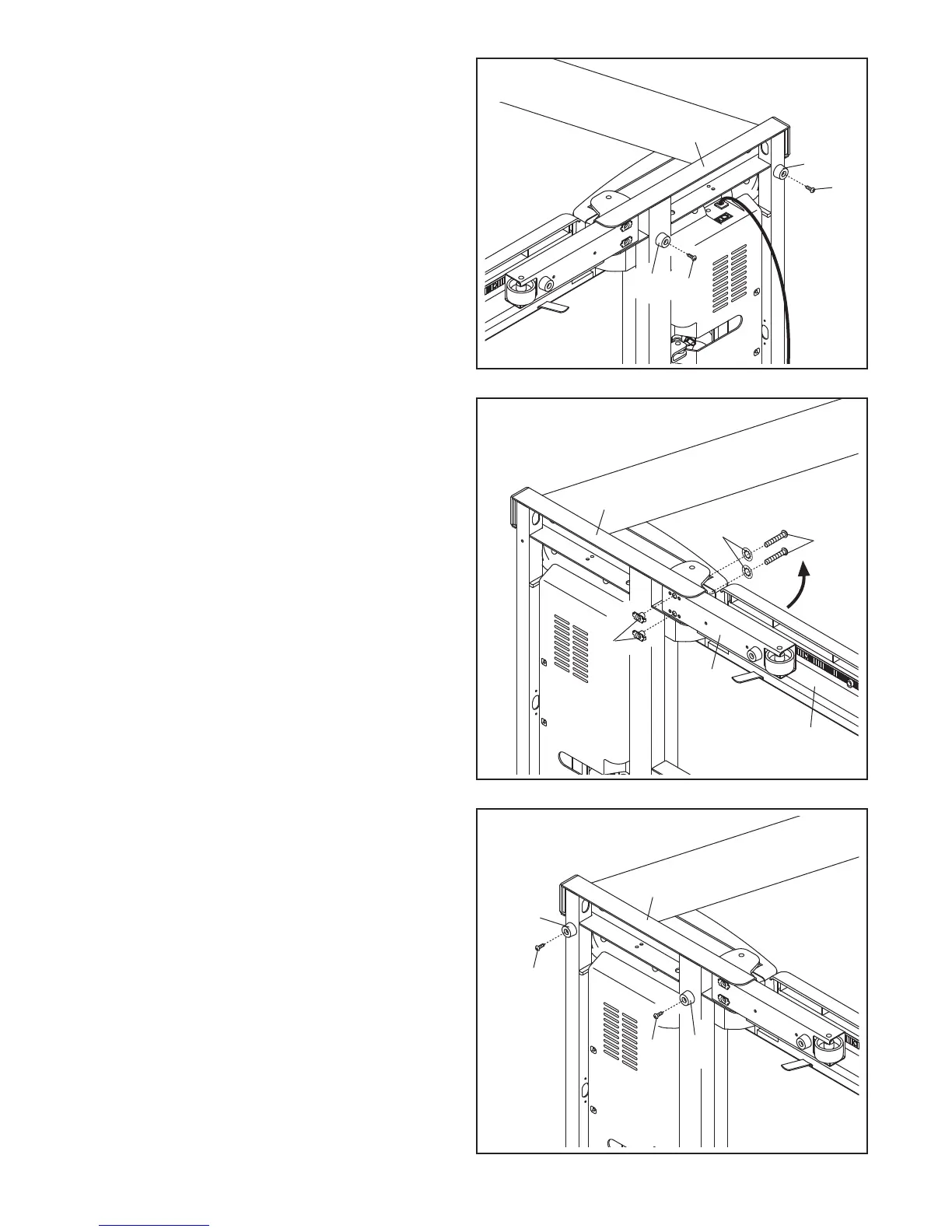

2. Attach two Base Pads (81) to the base of the
Uprights (85) in the indicated locations with two
1
" Tek Screws (82). Note: One replacement Base
Pad may be included. Use the Base Pad to re-
p
lace any Base Pad that becomes worn.
85
81
8
2
82
2
3. With the help of a second person, carefully tip
the treadmill onto its other side as shown.
Partially fold the Frame (55) so that the treadmill
is more stable.
Do not fully fold the Frame
until the treadmill is completely assembled.
Insert the other Extension Leg (97) into the indi-
cated bracket on the base of the Uprights (85) as
shown.
Attach the Extension Leg (97) with two Extension
Leg Bolts (87), two 5/16" Star Washers (110),
and two Extension Leg Nuts (91) as shown.
Firmly tighten the Extension Leg Bolts.
87
110
85
91
97
55
3
4. Attach two Base Pads (81) to the base of the
Uprights (85) in the indicated locations with two
1" Tek Screws (82). N
ote: One replacement Base
Pad may be included. Use the Base Pad to re-
place any Base Pad that becomes worn.
With the help of a second person, carefully tip
the treadmill down so that all four Base Pads
(81) are resting on the floor and the Uprights
(85) are in the vertical position.
81
82
82
85
4
81
81
To Next Page
