8

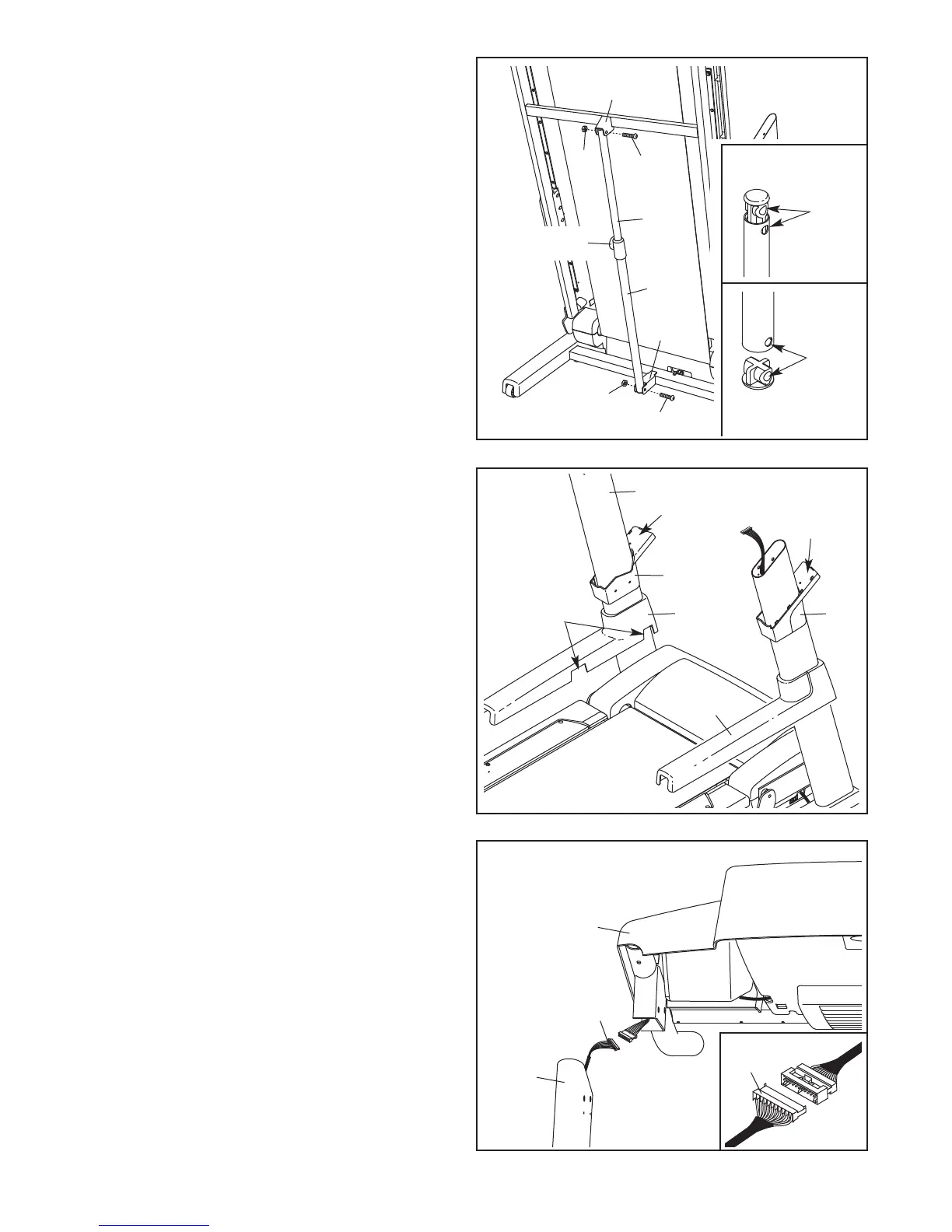

5. Remove the plastic ties from the ends of the
Latch Assembly (76).
Orient the Latch Assembly (76) so that the large
b
arrel and the knob are in the positions shown;
make sure that all of the holes are aligned (see
the inset drawings). Attach the lower end of the
Latch Assembly to the bracket in the center of
the Uprights (85) with a Latch Bolt (109) and a
Nut (20).
Then, attach the upper end of the Latch
Assembly (76) to the bracket on the Frame (55)
with an Latch Bolt (109) and a Nut (20). Note: It
may be necessary to move the Frame back and
forth to align the Latch Assembly with the
Bracket.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 26).
7
6
20
20
Large
Barrel
85
109
5
5
5
109
Knob
Top
Bottom
Holes
Holes
6. Identify the Left Base Cover (88), which has
cutouts in the locations shown. Slide the Left
Base Cover onto the left Upright (85). Slide the
Right Base Cover (86) onto the right Upright.
Identify the Left Upright Sleeve (77) and the Right
Upright Sleeve (9). Slide the Upright Sleeves onto
the Uprights (85) as shown.
88
77
86
9
85
Left
Right
Cutouts
6
7
.
Remove the band securing the
Upright Wire
Harness (73) to the right Upright (85). Have a
second person hold the console assembly near
the right Upright.
Connect the Upright Wire Harness (73) to the
wires extending from the console assembly.
Make sure to connect the connectors prop-
erly (see the inset drawing). The connectors
should slide together easily and snap into
place. If the connectors do not, turn one connec-
tor and try again.
IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CON-
SOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON. Then, insert the con-
nectors into the right Upright (85).
73
85
Console
Assembly
73
7
To Next Page
