13
13

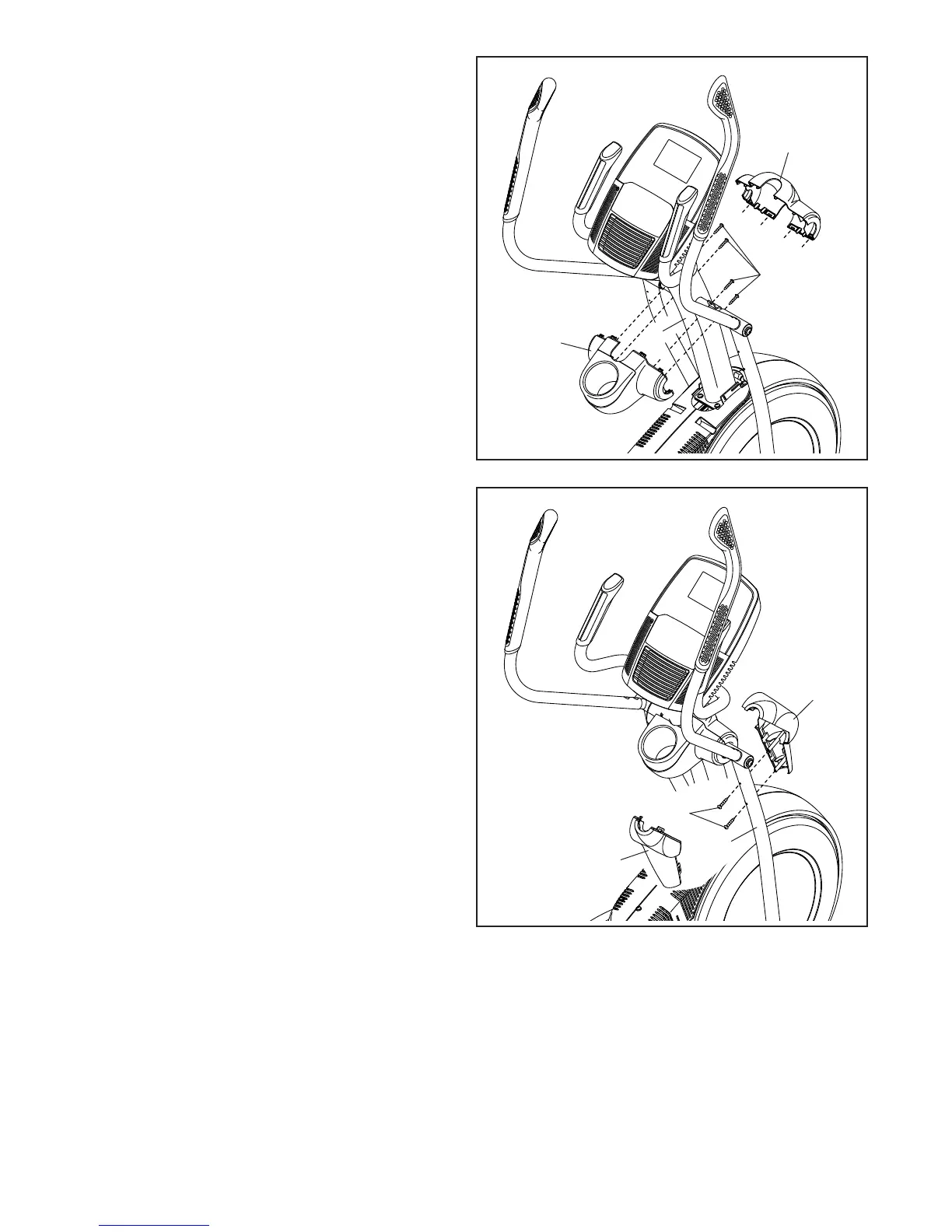

13. Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the
Upright (4) with four M4 x 16mm Screws (101);
start all the Screws, and then tighten them.
Next, orient the Front Upright Cover (117) as
shown.
Attach the Front Upright Cover (117) around the
Upright (4) by pressing it onto the Rear Upright
Cover (81).
101
81
117
4
14
14. Identify the Right Arm Front Cover (65) and
orient it as shown.
Attach the Right Arm Front Cover (65) to the
Right Upper Body Leg (60) with two M4 x 16mm
Screws (101).
Next, identify the Right Arm Rear Cover (66) and
orient it as shown.
Attach the Right Arm Rear Cover (66) around the
Right Upper Body Leg (60) by pressing it onto
the Right Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
65
60
101
66
