HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first unplug the power cord.
Using a standard
screwdriver, pry off
the left Disc (71).

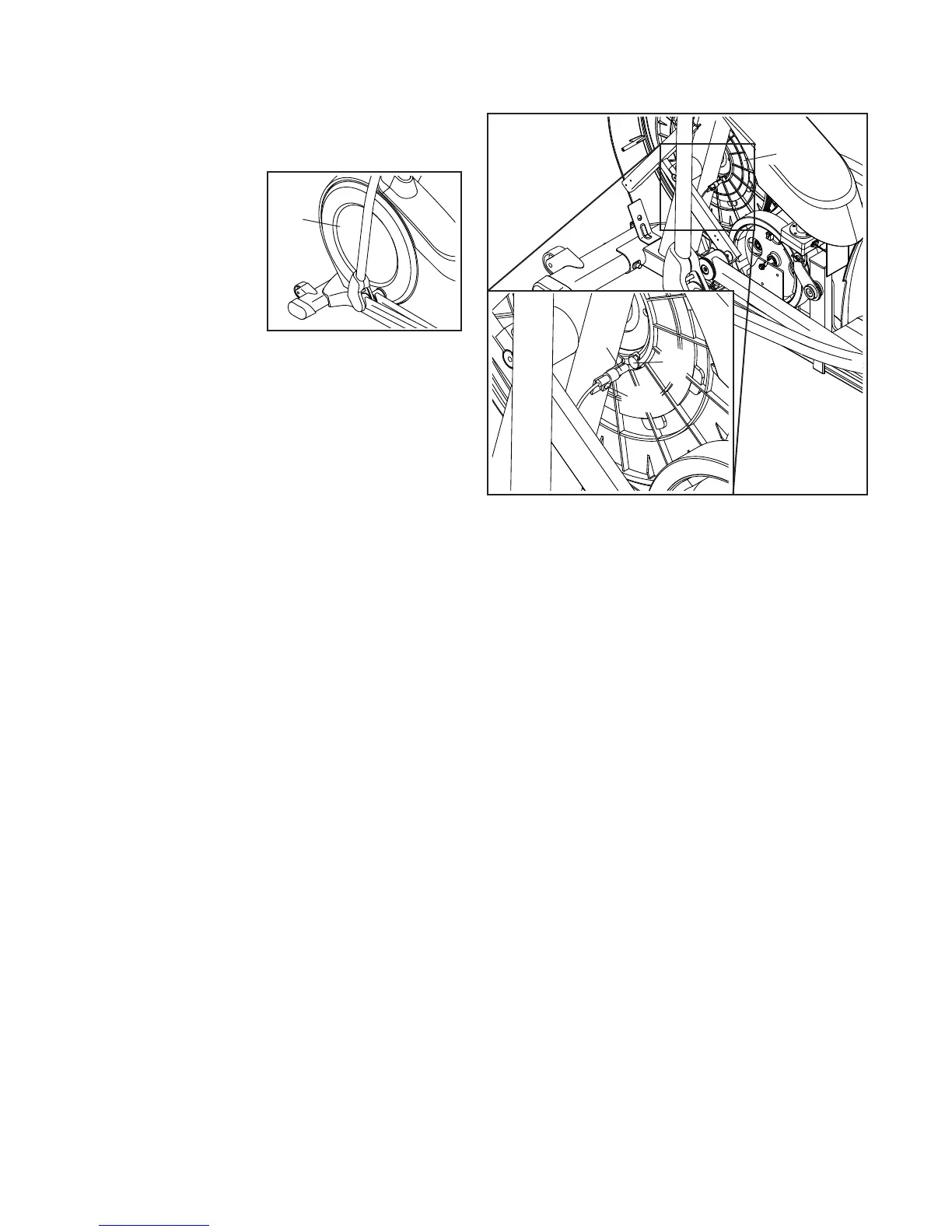

Note: For clarity, the
left shield and the left
disc ring are shown
removed in the draw-
ing at the right.
Locate the Reed Switch (38). Turn the Pulley (19) until
a Magnet (43) is aligned with the Reed Switch.
Slightly loosen the indicated M4 x 16mm Screw (101).
Slide the Reed Switch (38) slightly closer to or away
from the Magnet (43), and then retighten the Screw.
Then, plug in the power cord, and rock the Pulley (19)
forward and backward just enough that the Magnet
passes the Reed Switch repeatedly.
Repeat these actions until the console displays correct
feedback. When the reed switch is correctly adjusted,
reattach the left disc. Then, plug in the power cord.
