9

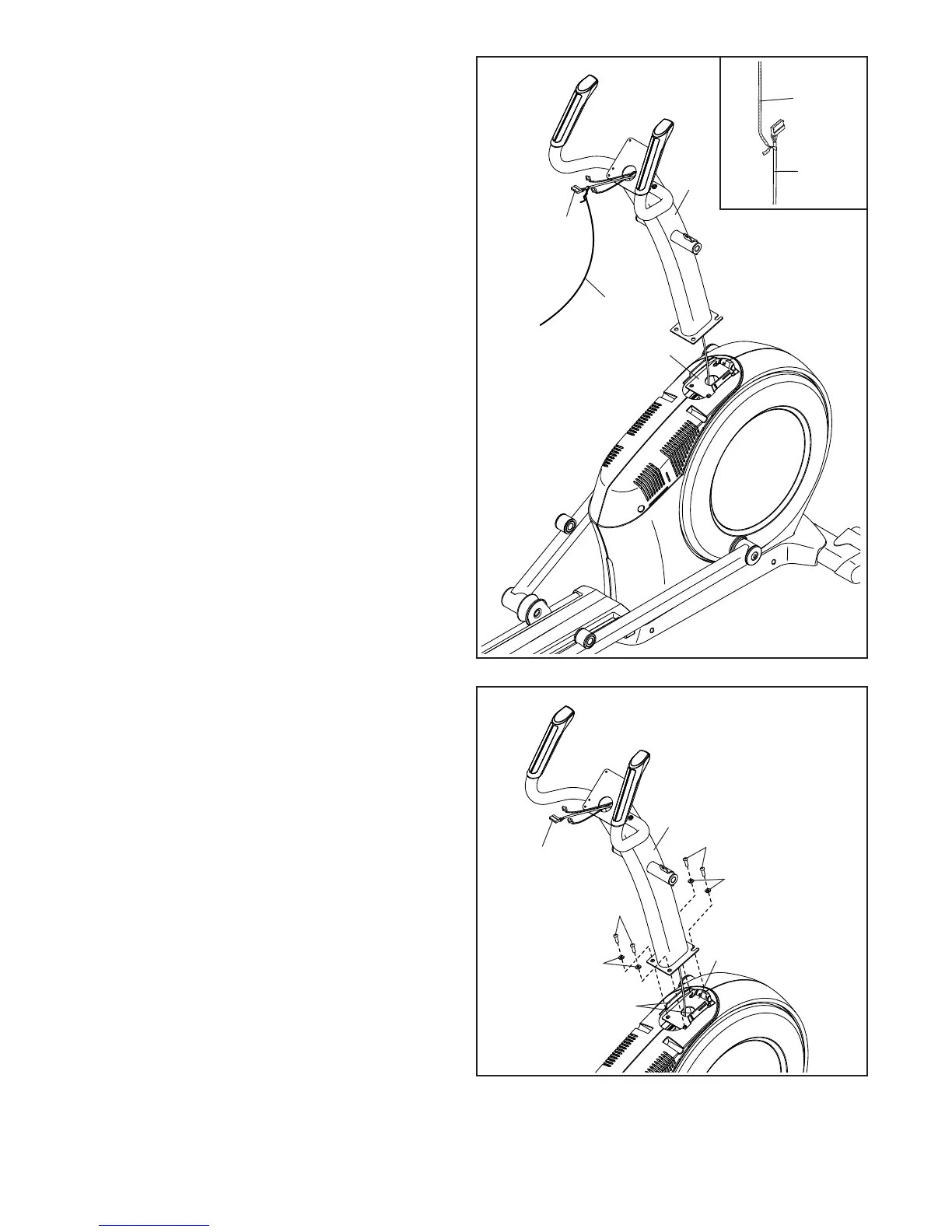

5. Orient the Upright (4) as shown. Have a second
person hold the Upright near the Frame (1).
See the inset drawing. Locate the wire tie (A)
in the lower end of the Upright (4). Tie the wire
tie to the Main Wire (110). Then, pull the upper
end of the wire tie until the Main Wire is routed
through the Upright.
Tip: To prevent the Main Wire (110) from fall-
ing into the Upright (4), secure the Main Wire
with the wire tie (A).
1
4
110
A
A
110
5
6
6. Tip: Avoid pinching the Main Wire (110).
Avoid damaging the indicated plastic tabs
(B). Have a second person hold the Upright (4)
on the Frame (1).
Attach the Upright (4) with four M10 x 25mm
Screws (99) and four M10 Split Washers (105);
start all the Screws, and then tighten them.
Avoid pinching the
Main Wire (110) and
avoid damaging the
tabs (B)
B
4
1
105
105
99
99
110
