6

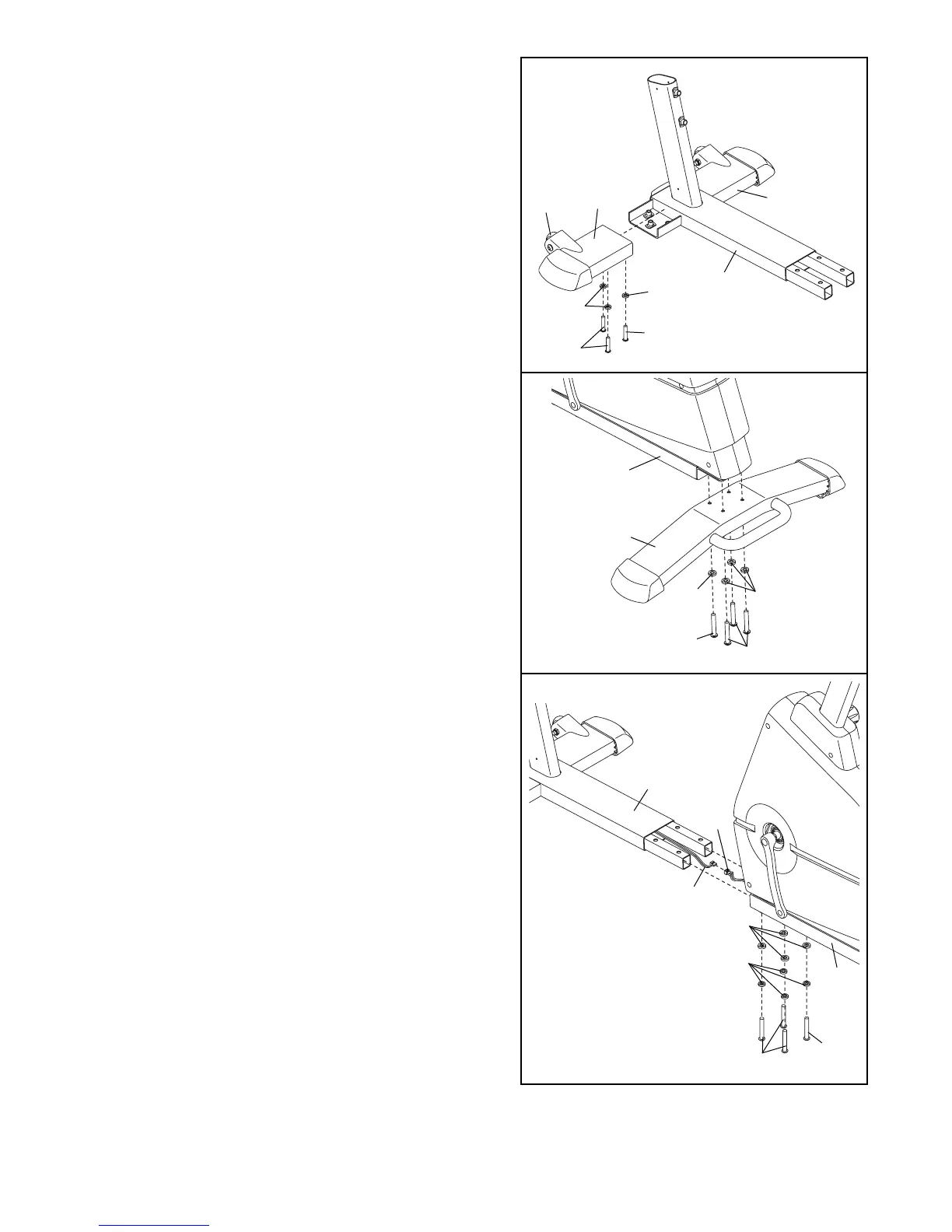

1. Attach the Left Front Stabilizer (15) to the left side of
the Upright Frame (5) with three M8 x 22mm Button
Screws (54) and three M8 Split Washers (55). Make
sure that the Left Front Stabilizer is turned so the
Wheel (17) is facing forward as shown.
Attach the Right Front Stabilizer (40) to the right side
of the Upright Frame (5) in the same way.
40
15
54
5
1
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (16) to the Frame with four
M8 x 54mm Button Screws (52) and four M8 Split
Washers (55).
52
16
1
3
5
Make sure the
Wire Harnesses
do not get
pinched and
damaged during
this step.
62
1
3. While another person lifts the front of the Frame (1),
connect the Middle Wire Harness (51) to the Lower
Wire Harness (43). Next, slide the Upright Frame (5)
into the Frame. Be careful to avoid pinching the
Wire Harnesses (51, 43).
Attach the Upright Frame (5) to the Frame (1) with four
M10 x 54mm Button Screws (56), four 6.35mm Spacers
(62), and four M10 Split Washers (71).
2
55
55
54
17
52
55
55
71
56
51
43
56
To Next Page
