ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips screw-
driver .

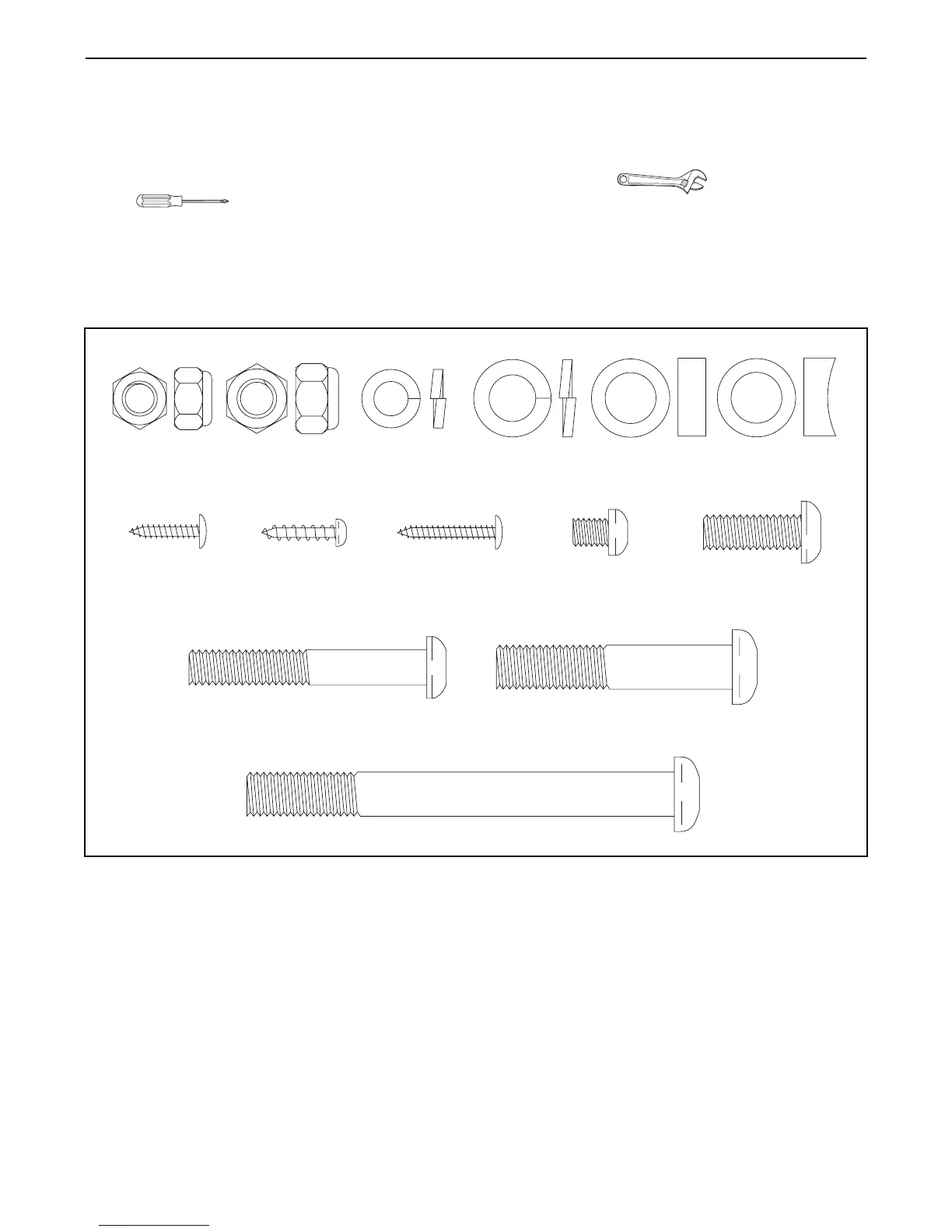

Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on page 22. The number following the paren-
theses is the quantity needed for assembly. Note: Some small parts may have been pre-attached. If a part is
not in the parts bag, check to see if it has been pre-attached.
