NordicTrack NTCCBE19520 User Manual

5

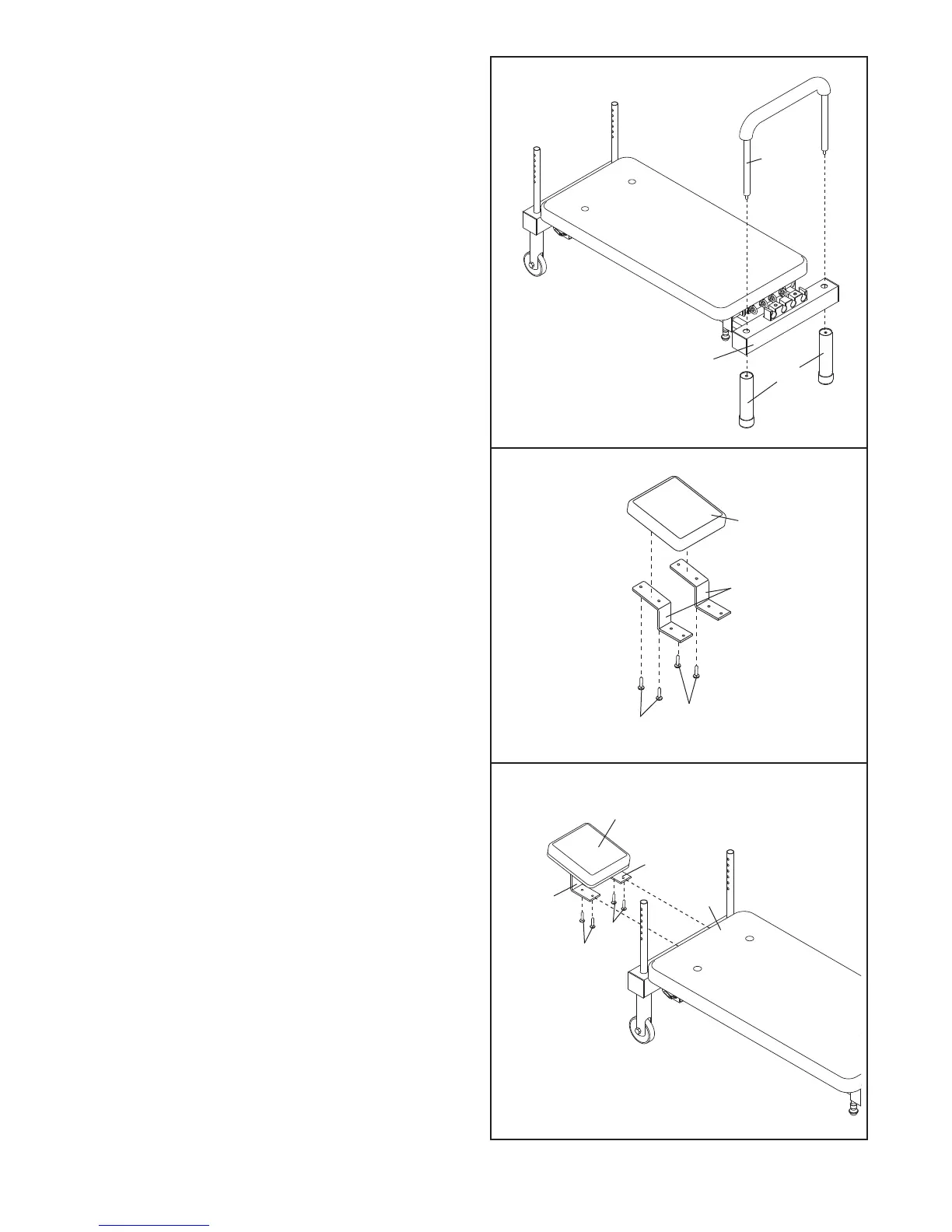

3. Insert the Foot Bar (32) into the end of the Inner
Frame (2). Attach two Cap Legs (14) to the ends
o
f the Foot Bar.
5. Rest the exercise bench on its side for this step.
Attach the pair of Headrest Frames (7) to the bot-
tom of the Carriage (6) with four M6 x 18mm
Screws (36).
Be sure that the Headrest (9) is
above the Carriage, as shown in step 6.
4. Attach the Headrest (9) to the long ends of the
pair of Headrest Frames (7) with four M6 x 18mm
Screws (36).
3
4
5
32
2
14
9
7
36
36
36
36
7
7
9
6
