6

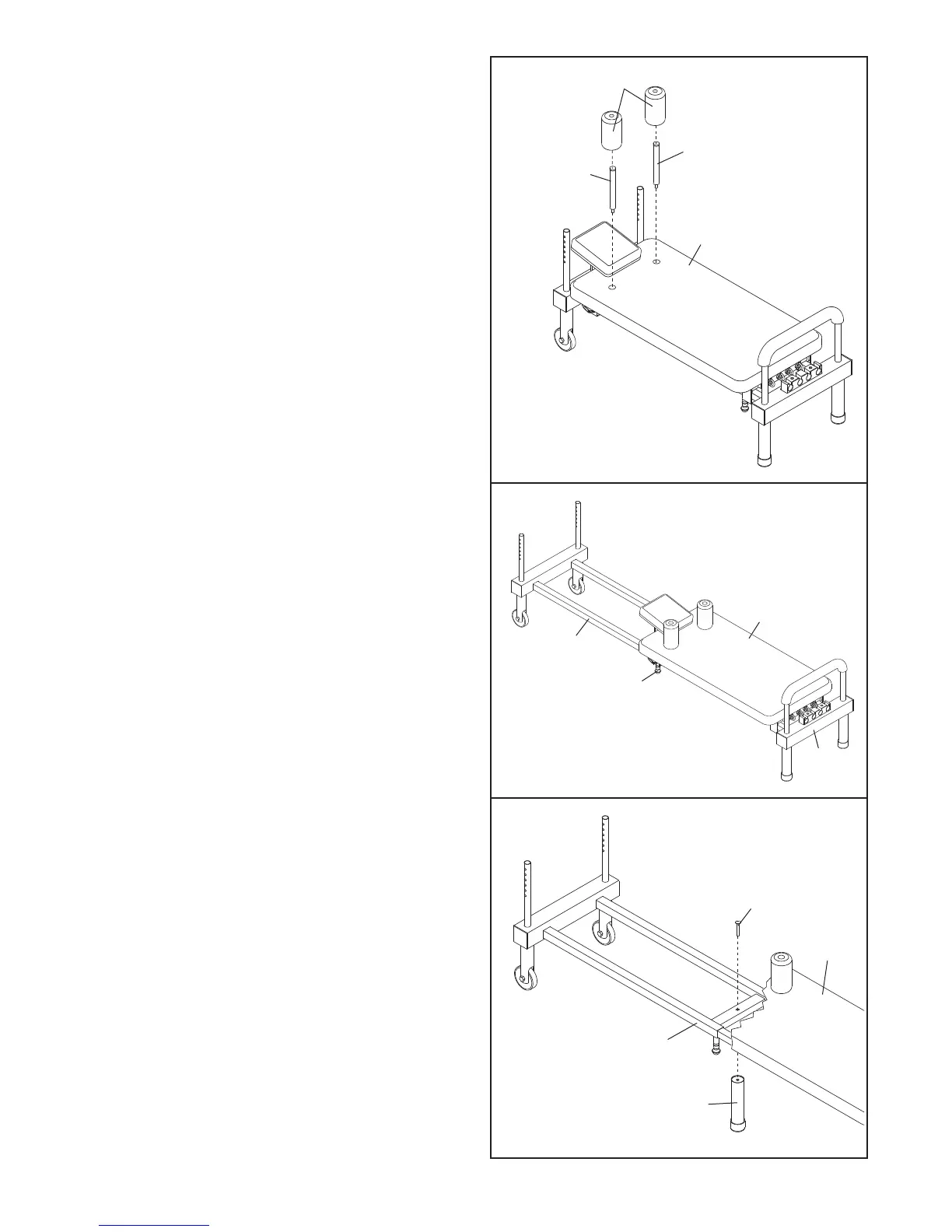

6. Tighten the two Carriage Tubes (11) into the
holes in the Carriage (6).
Slide a Shoulder Block (10) onto each Carriage
T
ube (11).
8. Reach under the Carriage (6) and insert an M10
x 50mm Carriage Bolt (41) through the indicated
hole in the Outer Frame (1).
T
ighten a Cap Leg (14) onto the M10 x 50mm
Carriage Bolt (41).
7. Pull the Adjustment Knob (17) out of the Inner
Frame (2). Slide the Inner Frame out of the Outer
Frame (1) and engage the Knob into the adjust-
ment hole in the Inner Frame.
Slide the Carriage (6) to the indicated end of the
exercise bench.
6
7
8
11
6
1
0
11
17
6
6
1
41
14
1
2
