7

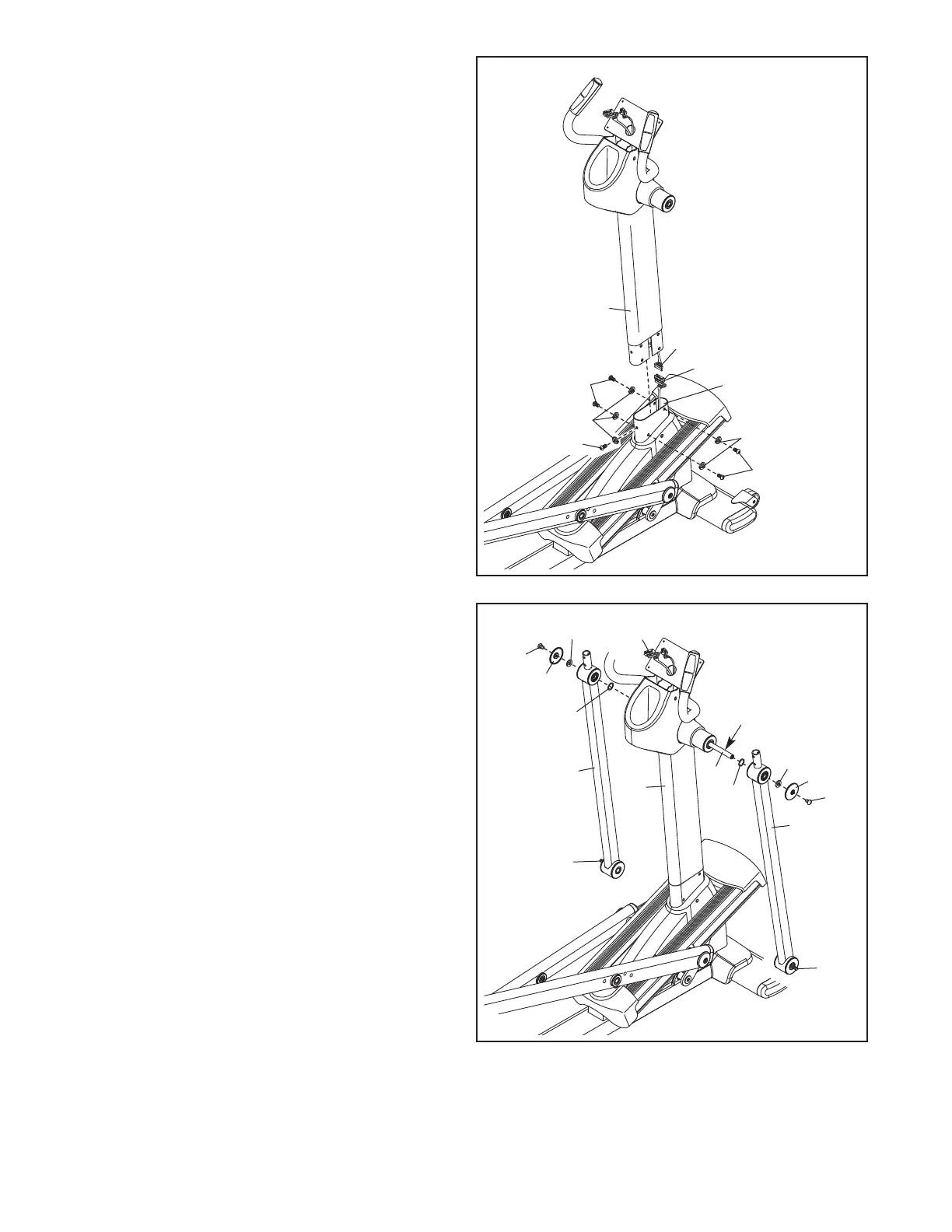

4. Apply a generous amount of the included
grease to the Pivot Axle (33) and to two 5/8"
Wave Washers (102).
Tip: Do not pinch the Upper Wire Harness
(97). Insert the Pivot Axle (33) into the Upright
(6). Then, slide a 5/8" Wave Washer (102) onto
each end of the Pivot Axle.
Next, orient an Upper Body Arm (12) so that the
M10 x 78mm Patch Screw (71) in the lower end
is facing away from the Upright (6).
Slide the Upper Body Arm (12) onto the Pivot
Axle (33). Attach the Upper Body Arm with a
5/16" x 1" Patch Screw (81), an Outer Large
Axle Cover (94), and a 5/16" Washer (104).
Attach the other Upper Body Arm (12) in the
same way.
4
3. Tip: Do not pinch the Wire Harnesses (97,
54) during this step. Start all screws before
tightening any of them.
While another person holds the Upright (6) near
t
he Frame (1), connect the Upper Wire Harness
(97) to the Lower Wire Harness (54).
Attach the Upright (6) to the Frame (1) with five
5/16" x 1" Patch Screws (81) and five 5/16"
Split Washers (105).
3
Do not pinch the
Wire Harnesses (97,
54) during this step
81
81
81
105
105
54
97
81
94
12
71
71
12
102
102
94
33
6
Grease
6
1
97
81
104
104
