8

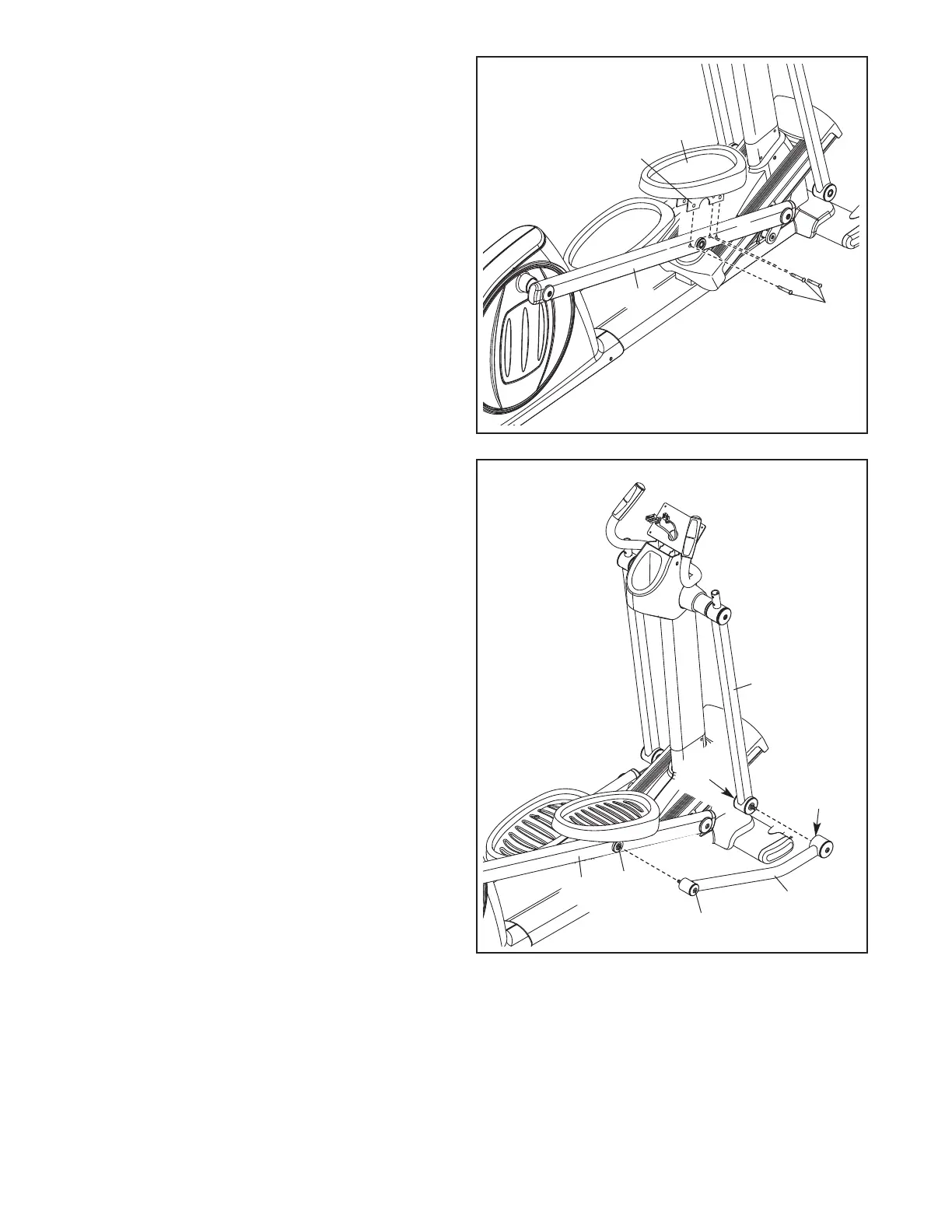

6. Identify the Right Link Arm (10), which is
marked with a “Right” sticker.
Locate the M10 x 78mm Patch Screw (71) in
one end of the Right Link Arm. Tighten the
Patch Screw into the indicated post on the Right
Pedal Arm (8).
Next, locate the M10 x 78mm Patch Screw (71)
in the right Upper Body Arm (12). Tighten the
Patch Screw into the post on the Right Link Arm
(10).
Repeat this step to attach the Left Link Arm
(not shown).
6
10
12
Post
71
71
8
5
5. Identify the Right Pedal Plate (107), which is
attached to the Right Pedal (62). The Right
Pedal is marked with a “Right” sticker.
Attach the Right Pedal Plate (107) to the Right
P
edal Arm (8) with three 3/8" x 2 1/2" Patch
Screws (88).
Repeat this step to attach the Left Pedal
Plate and the Left Pedal (not shown).
62
107
88
Post
8
To Next Page
