13
16. Identify the Right Pedal (21).
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
Arm (23).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
To adjust the pedal straps (E), see HOW TO
ADJUST THE PEDAL STRAPS on page 15.
16
23
10
75
88
81
15

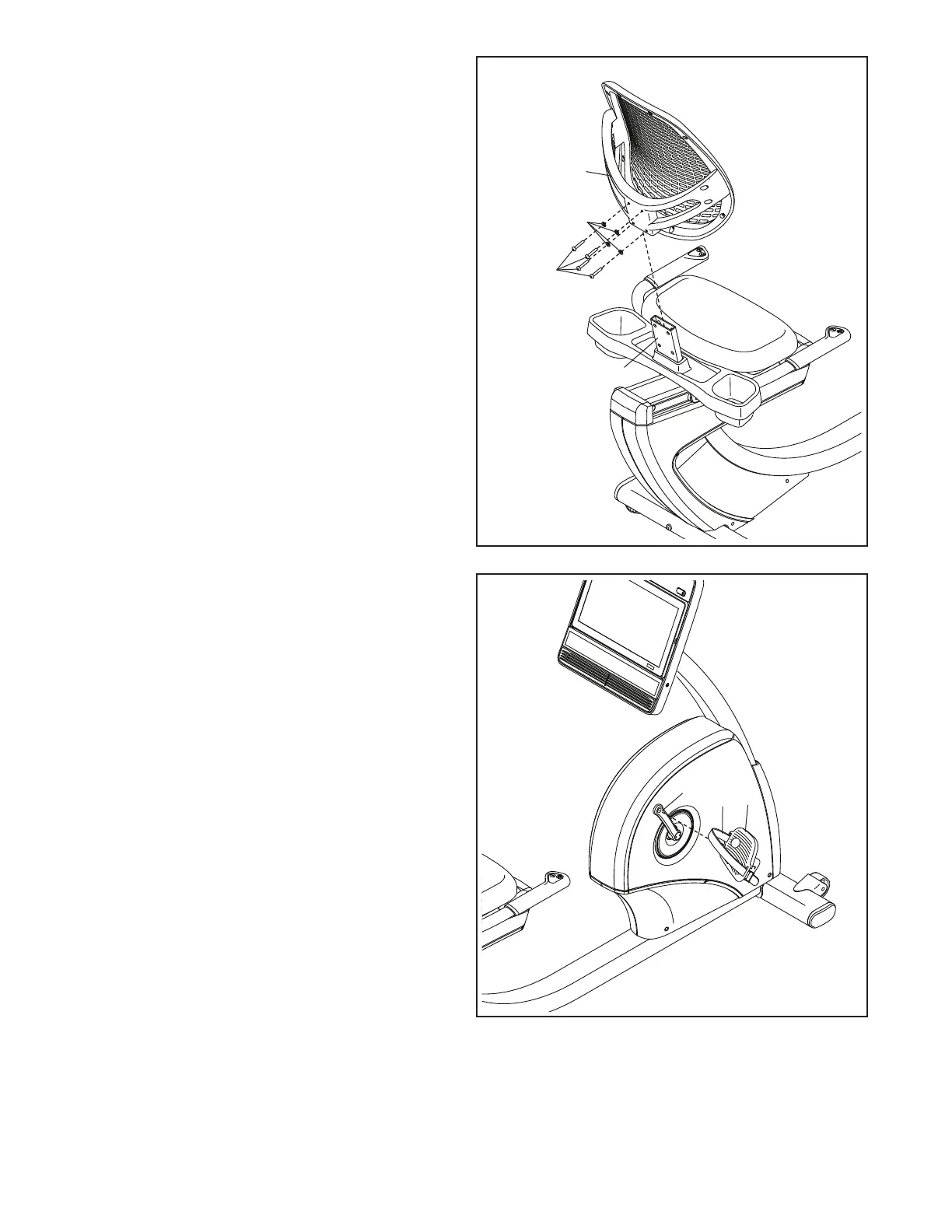

15. Slide the Backrest Back (81) onto the Seat
Handlebar (10).
Attach the Backrest Back (81) with four
M6 x 30mm Screws (75) and four M6
Washers (88); start all the Screws, and then
tighten them.
21
E
To Next Page
