10
10
4
77
77
7
Avoid pinching
the wires

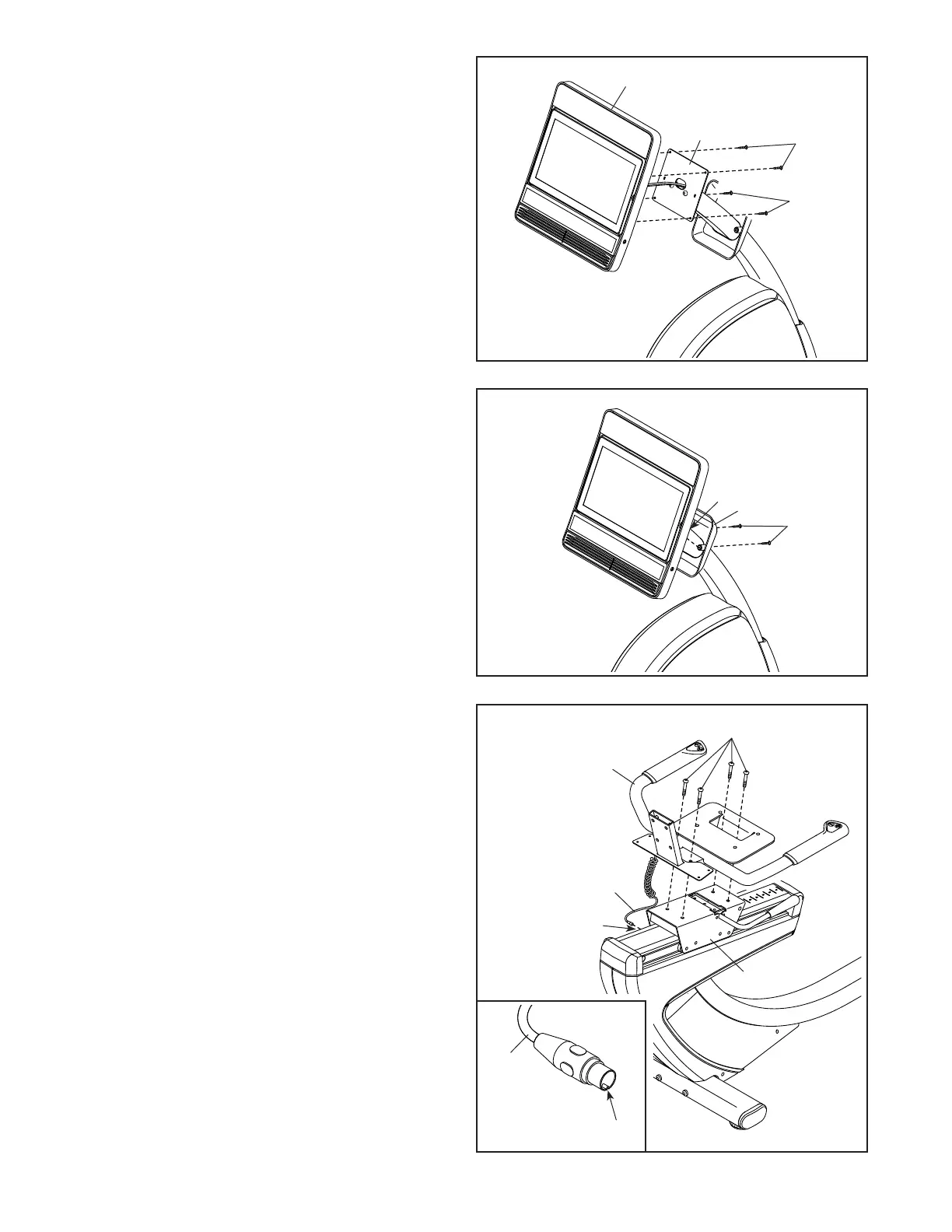

10. Tip: Avoid pinching the wires. Attach the
Console (4) to the Console Plate (7) with four
M4 x 16mm Screws (77); start all the Screws,
and then tighten them.
11. Attach the Upright Cover (57) to the Console
Plate (7) with two M4 x 16mm Screws (77).
11
57
7
77
12
41
42
C
10
67
12. Attach the Seat Handlebar (10) to the Seat
Carriage (41) with four M8 x 38mm Screws (67);
start all the Screws, and then tighten them.
Next, locate the wire (C) on the seat assembly.
See the inset drawing. Rotate the connector on
the wire (C) so that the “V”-shaped indentation
(D) is at the bottom.
Plug the wire (C) fully into the Control
Receptacle (42) on the left side of the
exercise bike.
C
D
