NordicTrack NTEX14921-INT.1 - Front Shield and Upright Cover Installation

8
70
2
Avoid pinching
the wires

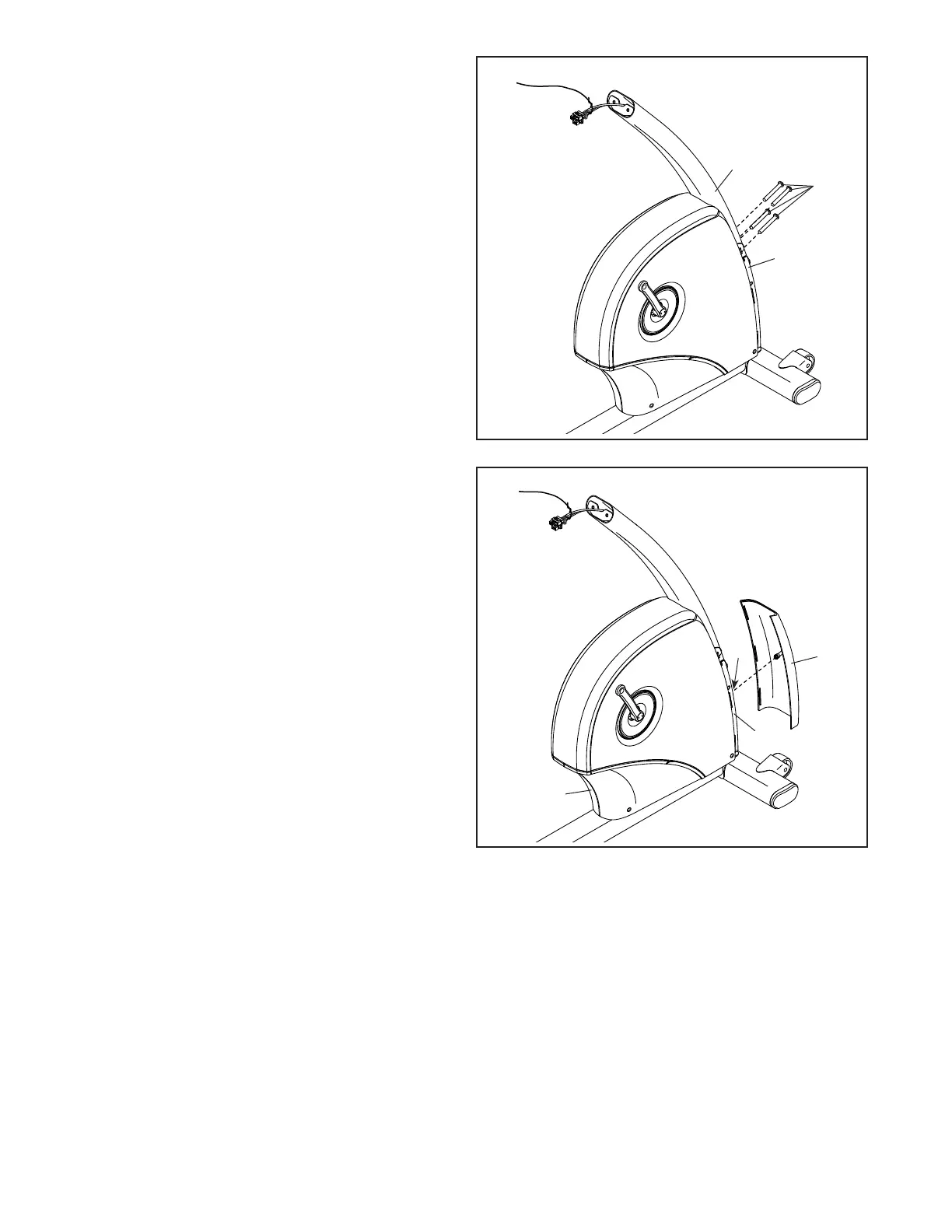

5. Tip: Avoid pinching the wires. Slide the
Upright (2) onto the Frame (1).
Attach the Upright (2) with four M10 x 62mm
Screws (70); start all the Screws, and then
tighten them.
1
58
13
14
6. Press the mount on the Front Shield (58) into the
Frame (1). Then, press the Front Shield onto the
Left and Right Front Shields (13, 14).
6
1
5
