11
10
47
68
6
1

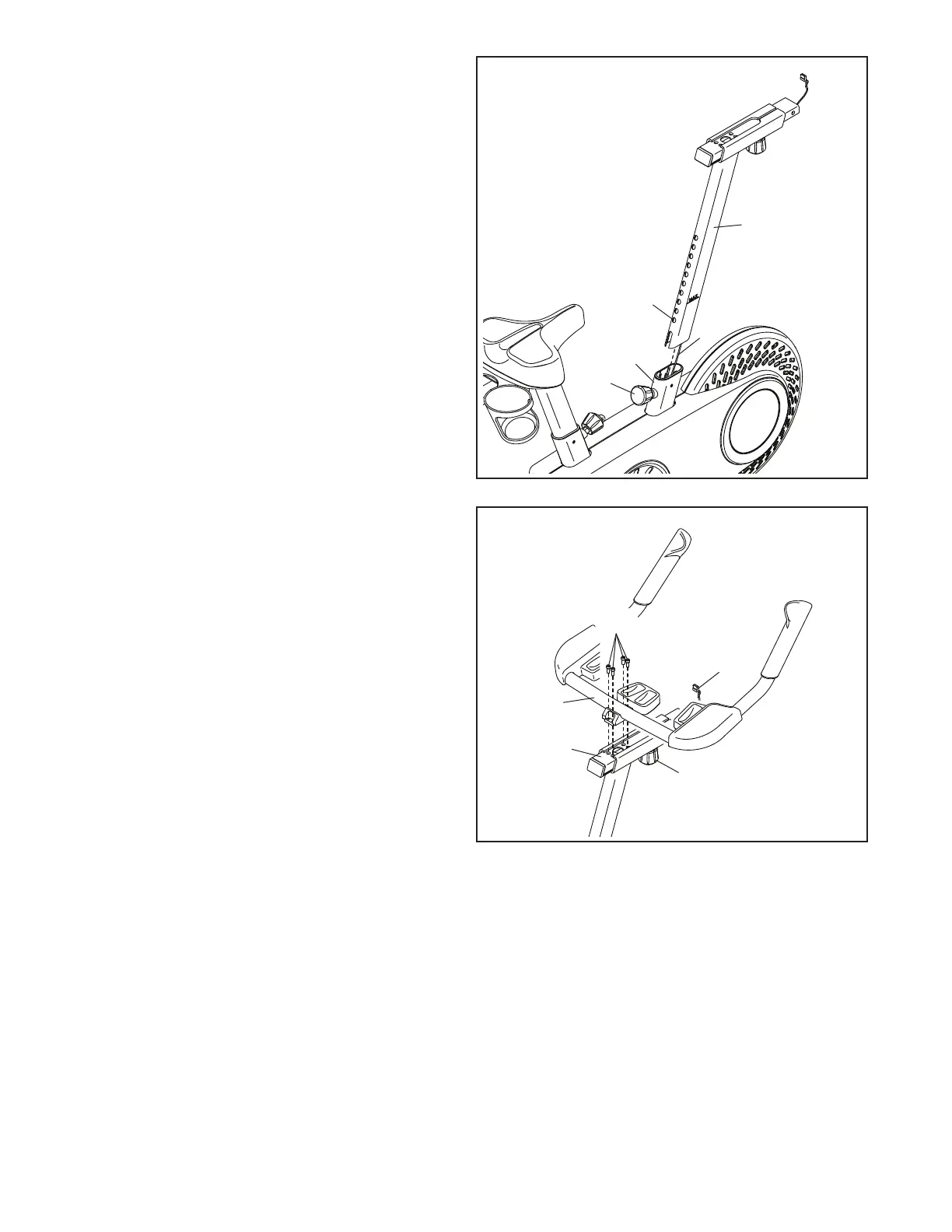

10. Tip: Avoid pinching the Main Wire (68) during
this step.
Pull the Post Knob (47). Next, insert the
Handlebar Post (6) into the Frame (1), and
release the Post Knob into the lowest adjust-
ment hole (G) in the Handlebar Post. Then,
tighten the Post Knob.
Note: After the exercise bike is assembled, you
can adjust the Handlebar Post (6) to the desired
height.
Avoid pinching the
Main Wire (68)
Avoid pinching the
Main Wire (68)
G
11. Loosen the Handlebar Knob (30). Next, slide
the Handlebar Carriage (16) forward as far as
possible. Then, tighten the Handlebar Knob.
Tip: Avoid pinching the Main Wire (68). Attach
the Handlebar (7) to the Handlebar Carriage (16)
with four M6 x 20mm Screws (81); start all the
Screws, and then tighten them.
11
16
30
7
81
68
