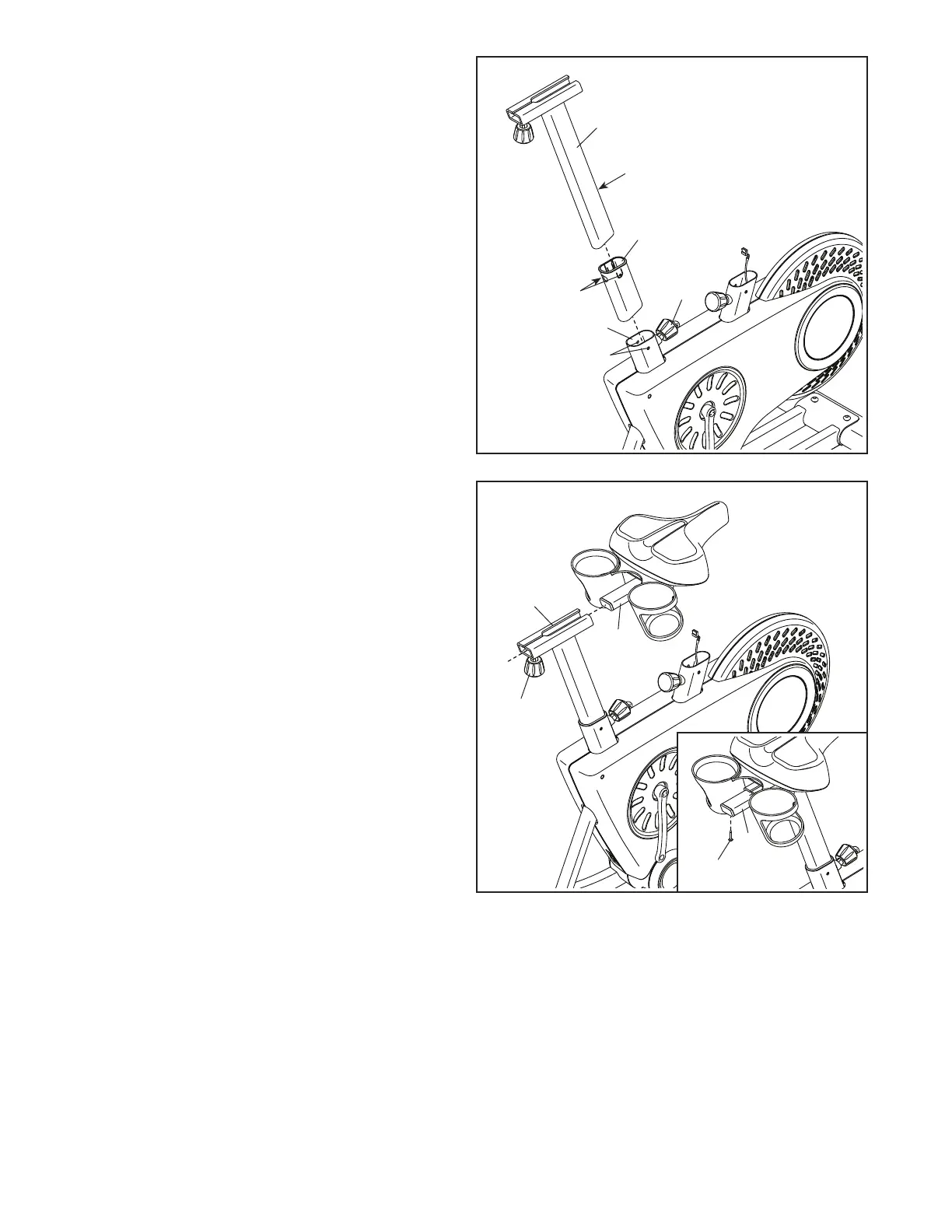

7. Loosen and pull the Seat Knob (29).
Next, insert the Seat Carriage (4) into the Seat
Post (3), and release the Seat Knob (29) into
one of the adjustment holes in the Seat Carriage.
Make sure that the Seat Knob is in an adjust-
ment hole. Then, tighten the Seat Knob.
See the inset drawing. Tighten an M4 x 12mm
Screw (86) into the underside of the Seat
Carriage (4).
7
29
3
4
86
4
42
A
B
6. Locate the Post Knob (47) on the rear of the
Frame (1). Loosen and pull the Post Knob.
Next, orient a Post Bushing (42) as shown, and
insert it into the Frame (1). Make sure that the
tabs (A) on the Post Bushing are in the holes
(B) in the Frame.
Next, orient the Seat Post (3) as shown, insert
it into the Frame (1), and release the Post Knob
(47) into one of the adjustment holes (C) in the
Seat Post. Make sure that the Post Knob is
in an adjustment hole. Then, tighten the Post
Knob.
