13

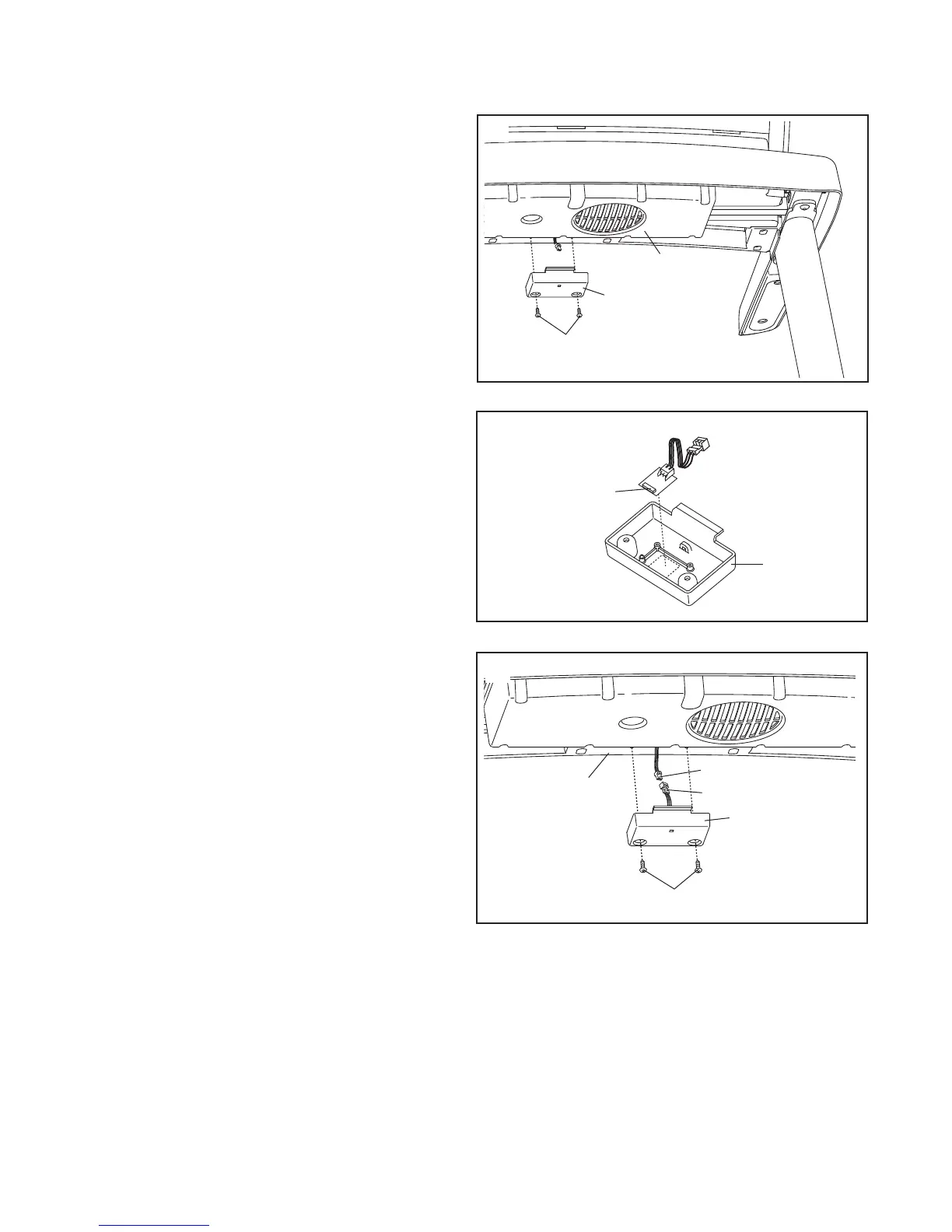

1. Make sure that the power cord is unplugged.
Remove the indicated #8 x 3/4" Screws (7) from
the Pulse Receiver Cover (95) on the back of the
Console Assembly (A).
2. Next, hold the receiver so that the sensor is
oriented as shown. Peel the paper backing off
the pad on the bottom of the receiver. Press the
receiver onto the Receiver Cover (95) in the lo-
cation shown.
3. Connect the Wire (B) on the receiver to the wire
extending from the Console Assembly (A). Make
sure that no wires are pinched. Reattach the
Pulse Receiver Cover (95) to the Console
Assembly with the two #8 x 3/4" Screws (7).
Discard the other wires included with the re-
ceiver.
If you purchase the optional chest pulse sensor (see page 29), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
A
1
95
7
A
3
95
Wire
7
B
95
Sensor
2
To Next Page
