11
5. See the inset drawing. Connect the Base Wire
(52) to the Upright Wire (75). The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
Then, remove the tie (A) from the Base Wire
(52), and insert the connectors into the hole (B)
in the right Upright (83).
52
75
75
52
83
A
B

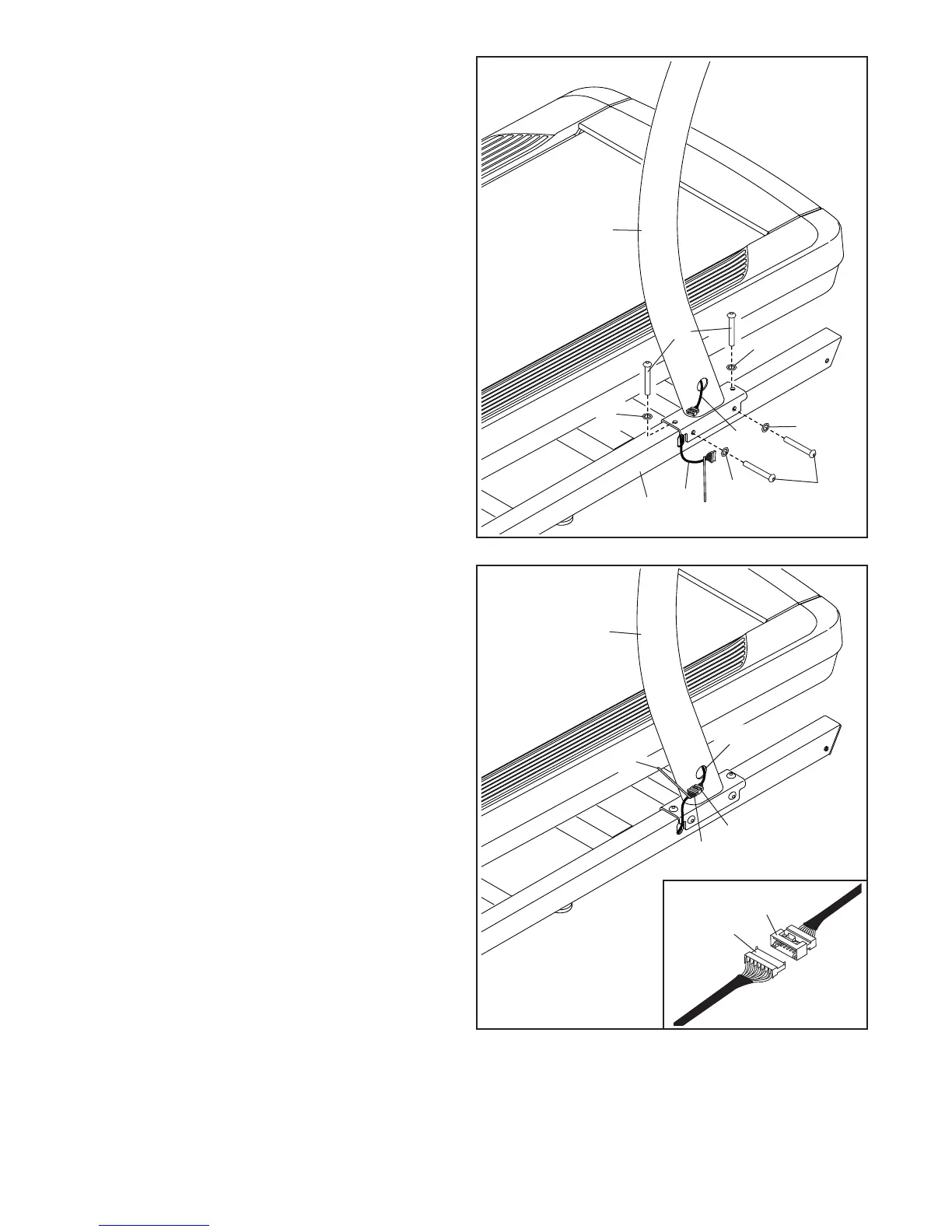

4. Set the Uprights (83) on the Base (74). Make
sure that the hole with the Upright Wire (75)
is on the right side.
Attach the right Upright (83) to the Base (74)
with two of the 3/8" x 3 1/4" Screws (18) and
two of the 3/8" x 2 3/4" Screws (22) that you just
removed and four 3/8" Star Washers (3); do not
fully tighten the Screws yet. Make sure that
the Base Wire (52) is not pinched.
Attach the left Upright (not shown) as
described above. Note: There is not a wire on
the left side.
Then, fully tighten the 3/8" x 3 1/4" Screws (18)
and the 3/8" x 2 3/4" Screws (22).
4
22
3
3
52
74
75
18
83
3
3
5
To Next Page
