12

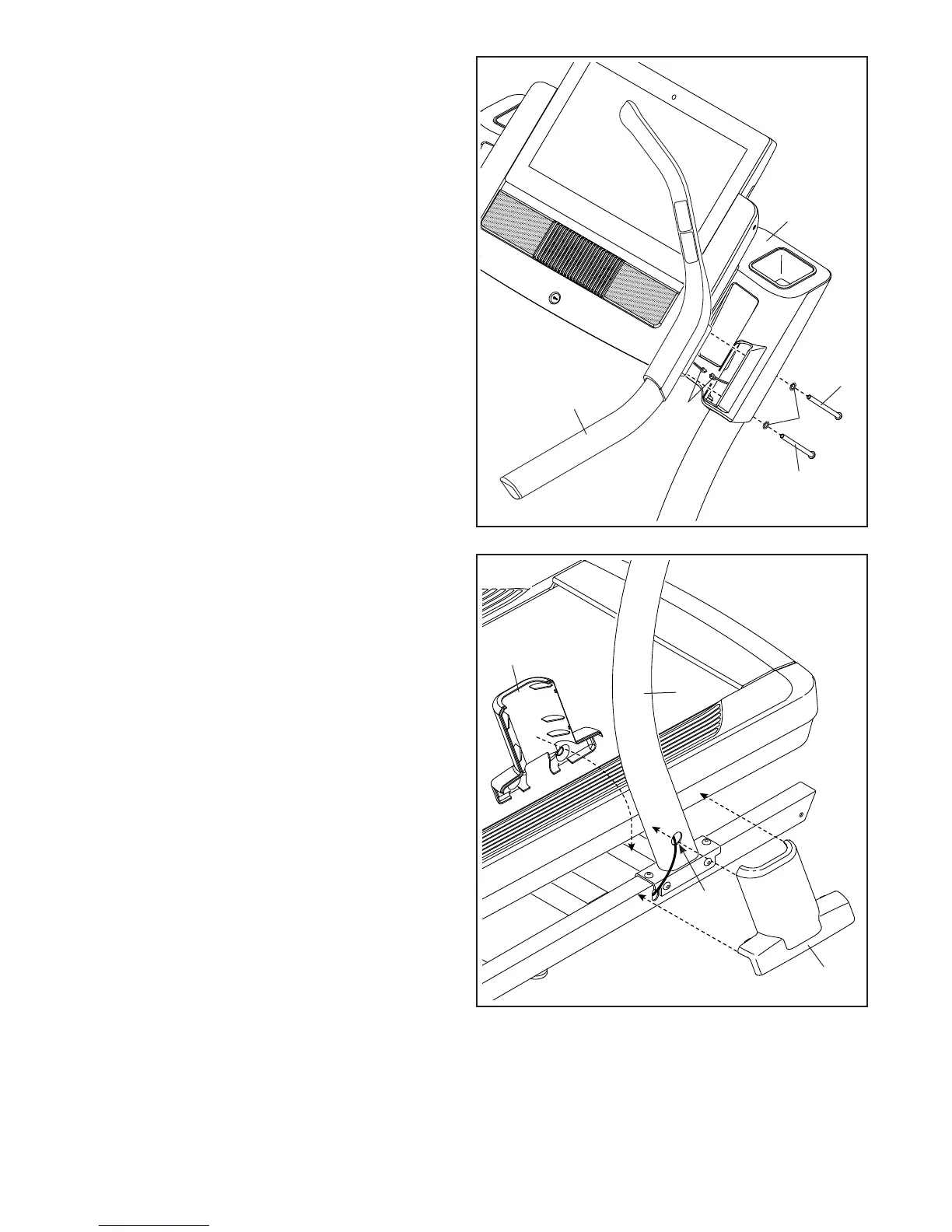

7. Slide the Right Inside Upright Cover (70) against
the lower end of the right Upright (83). Press
the Right Outside Upright Cover (71) against
the Right Inside Upright Cover until it snaps into
place. Make sure that the wires (E) are not
pinched.
Attach the Left Inside Upright Cover (not
shown) and the Left Outside Upright Cover
(not shown) as described above. Note: There
is not a wire on the left side.
70
71
83
E
7
6
1
1
C
6. Identify the Right Handrail (89). Hold the Right
Handrail near the right side of the console
assembly (C), and connect the two pulse wires
(D).
Next, set the Right Handrail (89) on the console
assembly (C). Make sure that no wires are
pinched.
Attach the Right Handrail (89) with two 3/8" x
5 1/2" Screws (1) and two 3/8" Star Washers (3);
start both Screws, and then tighten them.
Attach the left handrail (not shown) as
described above.
89
D
3
To Next Page
