5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .

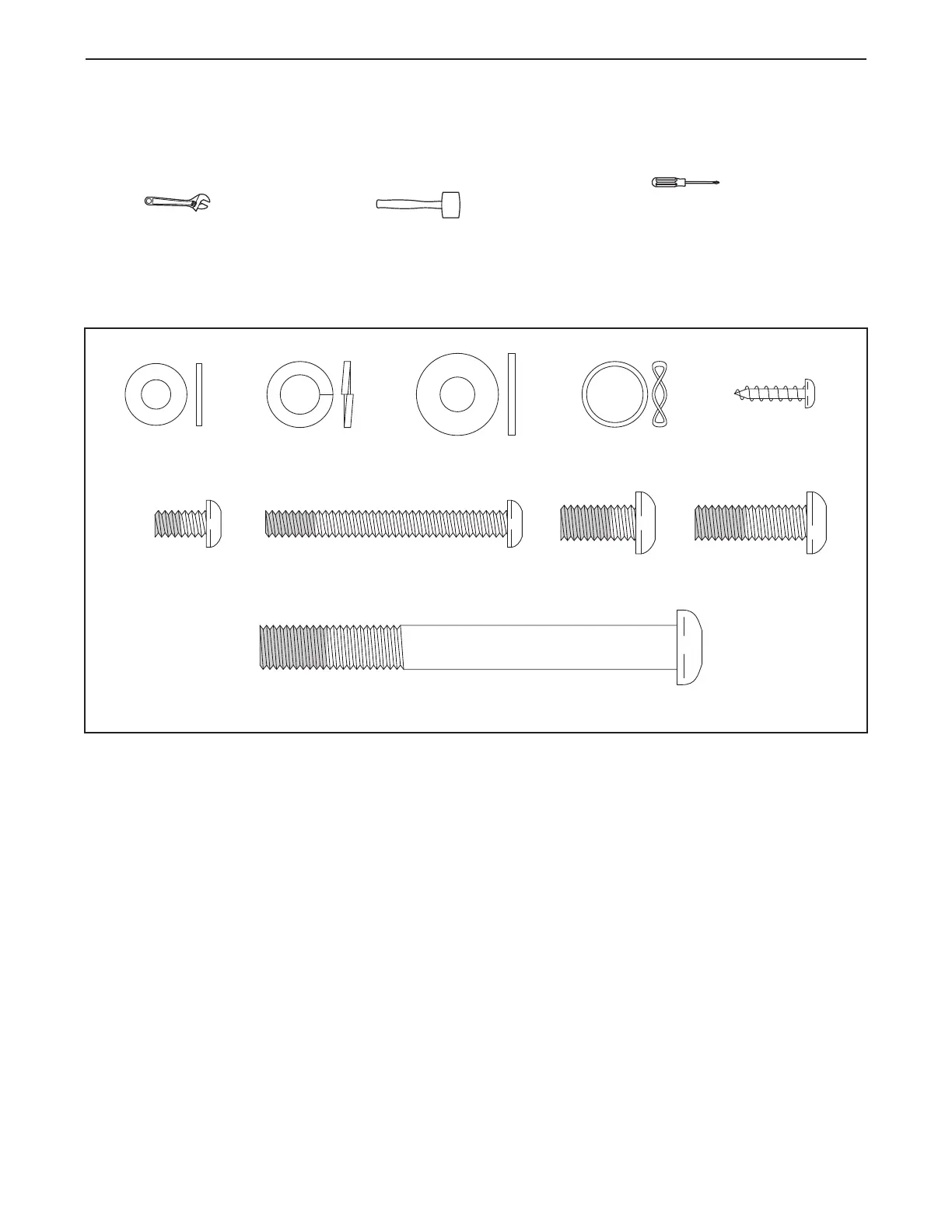

As you assemble the elliptical, use the drawings below to identify small parts. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check
to see if it has been preassembled.
M8 Split
Washer (103)–4
M8 Washer
(95)–8
M6 Washer
(112)–8
Wave Washer
(118)–2
M4 x 16mm
Screw (106)–8
M8 x 16mm Patch
Screw (102)–16
M8 x 25mm Patch
Screw (121)–2
M6 x 50mm
Patch Screw (62)–4
M10 x 95mm Patch Screw (100)–4
M6 x 12mm Patch
Screw (111)–4
