FURNACE SPECIFICATIONS - Downflow Models

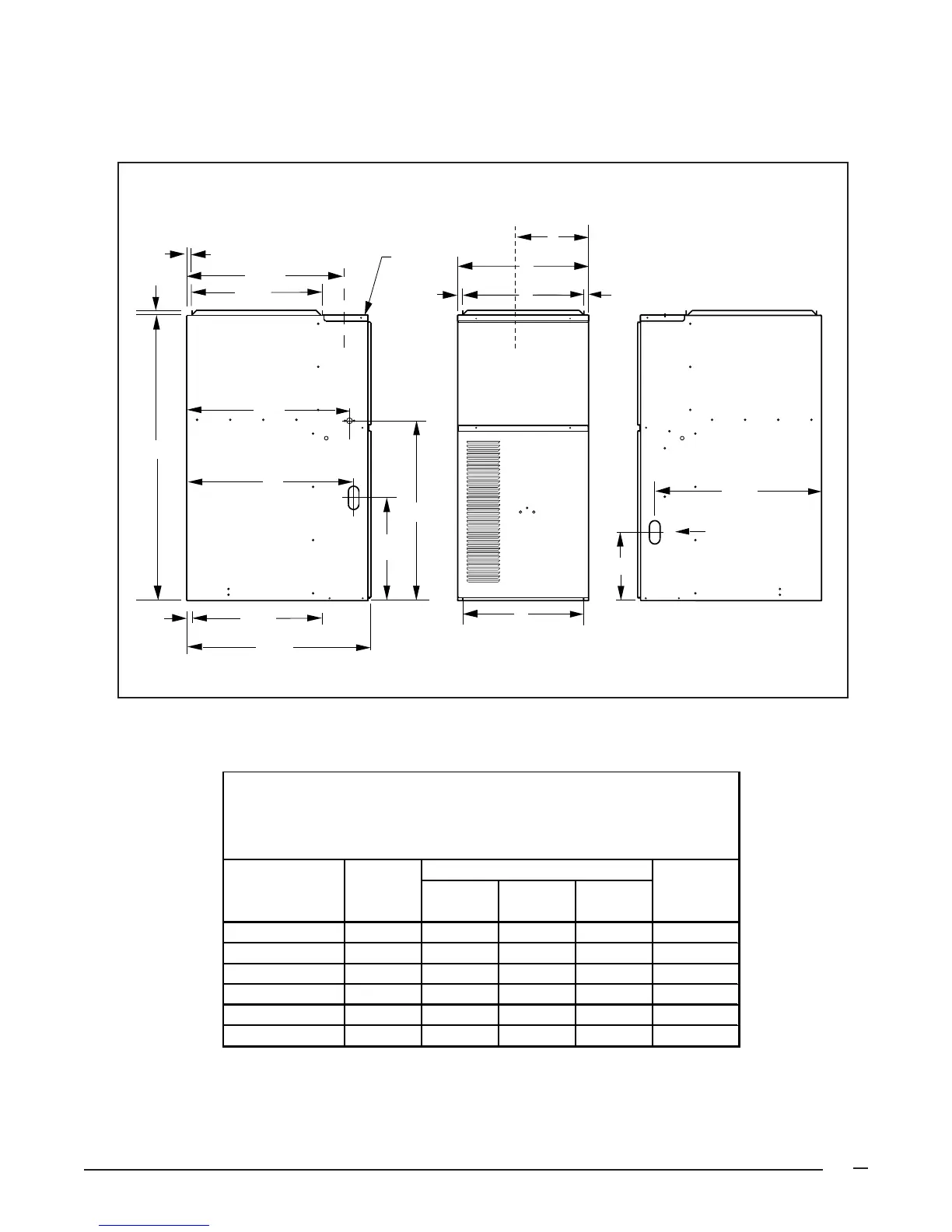

Figure 1B. Downflow Unit Dimensions
Cut-out for Electric
Connection
Both sides
Cut-out for Gas Connection
1-1/2 x 3-1/2 (both sides)
27 7/8"
3/4"
23 5/8"
19 3/4"
3/4"
C
C
L
3/4"
3/4"
43"
4" Dia. Vent
Cut - out for
Gas Connection
A
B
B
25"
15 1/2"
27 1/8"
25"
3/4"
C
L
(Bottom Opening)
(Bottom Opening)
10 1/4"
24 1/2"
19 3/4"
Table 1B. Downflow Furnace Dimensions and Shipping Weights
Model Furnace Shipping
Number Input A B C Weights
*RK (Btuh) inches inches inches (lbs)
060C-12 60,000 14 1/4 12 3/4 5 1/2 134
072C-12 72,000 14 1/4 12 3/4 5 1/2 135
072C-16 72,000 19 3/4 18 1/4 11 147
096C-12 96,000 19 3/4 18 1/4 11 154
096C-16 96,000 19 3/4 18 1/4 11 156
120C-20 120,000 19 3/4 18 1/4 11 182
DOWNFLOW FURNACE MODELS
FURNACE DIMENSIONS AND
SHIPPING WEIGHTS
