Nordyne R-410A User Manual And Installation Instructions

14
Cooling Charging Charts

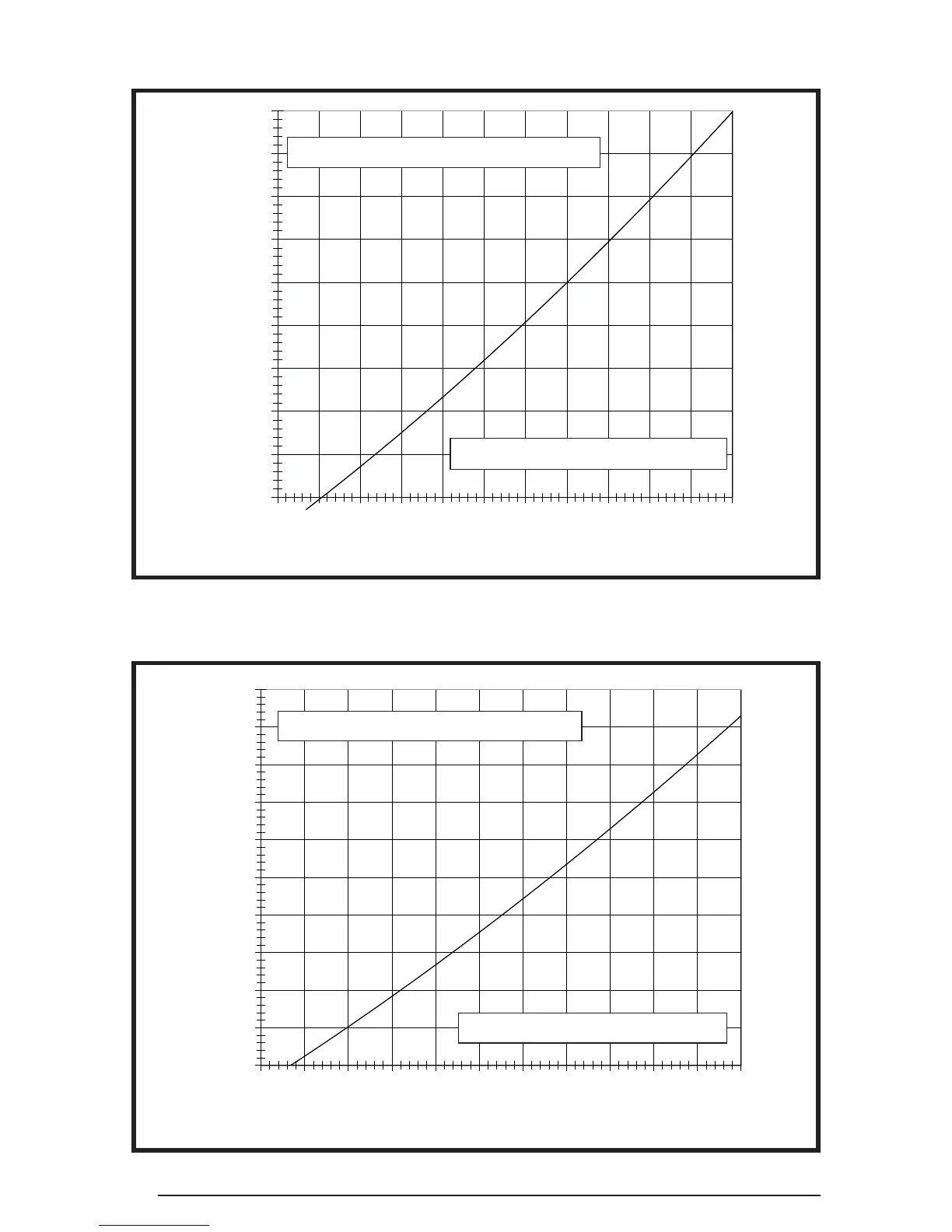

Figure 4. Charging Chart for 2 Ton Units
250
275
300
325
350
375
400
425
450
475
70 75 80 85 90 95 100 105 110 115 120 125
Liquid Temperature (° F)
Liquid Pressure (psig)
Remove refrigerant when above curve
Add refrigerant when below curve
Figure 5. Charging Chart for 3 Ton Units
Liquid Temperature (° F)
Liquid Pressure (psig)
250
275
300
325
350
375
400
425
450
475
500
70 75 80 85 90 95 100 105 110 115 120 125
Remove refrigerant when above curve
Add refrigerant when below curve

Nordyne R-410A Specifications

General

Brand	Nordyne
Model	R-410A
Category	Heat Pump
Language	English
