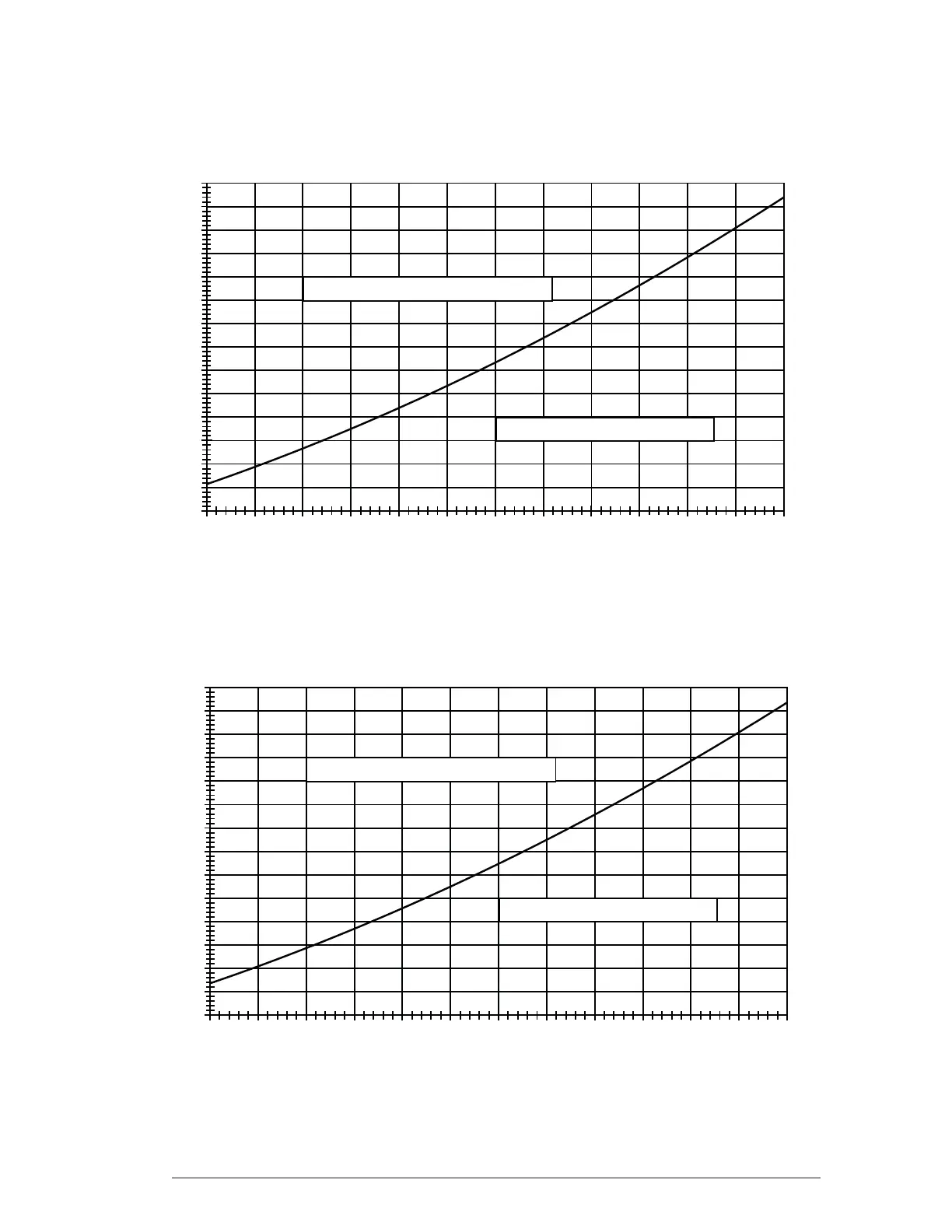

Refrigerant Charging Charts for Cooling Mode of Operation
14 SEER Split System Cooling Charts
2.5 Ton Heat Pump TXV Cooling Charging Chart
200
225
250
275
300
325
350
375
400
425
450
475
500
525
550
70 75 80 85 90 95 100 105 110 115 120 125 130
Liquid Temperature (F )
Liquid Pressure (psig)
Add refrigerant when below curve
Remove refrigerant when above curve
3 Ton Heat Pump TXV Cooling Charging Chart
200
225
250
275
300
325
350
375
400
425
450
475
500
525
550
70 75 80 85 90 95 100 105 110 115 120 125 130
Liquid Temperature (F )
Liquid Pressure (psig)
Add refrigerant when below curve
Remove refrigerant when above curve
