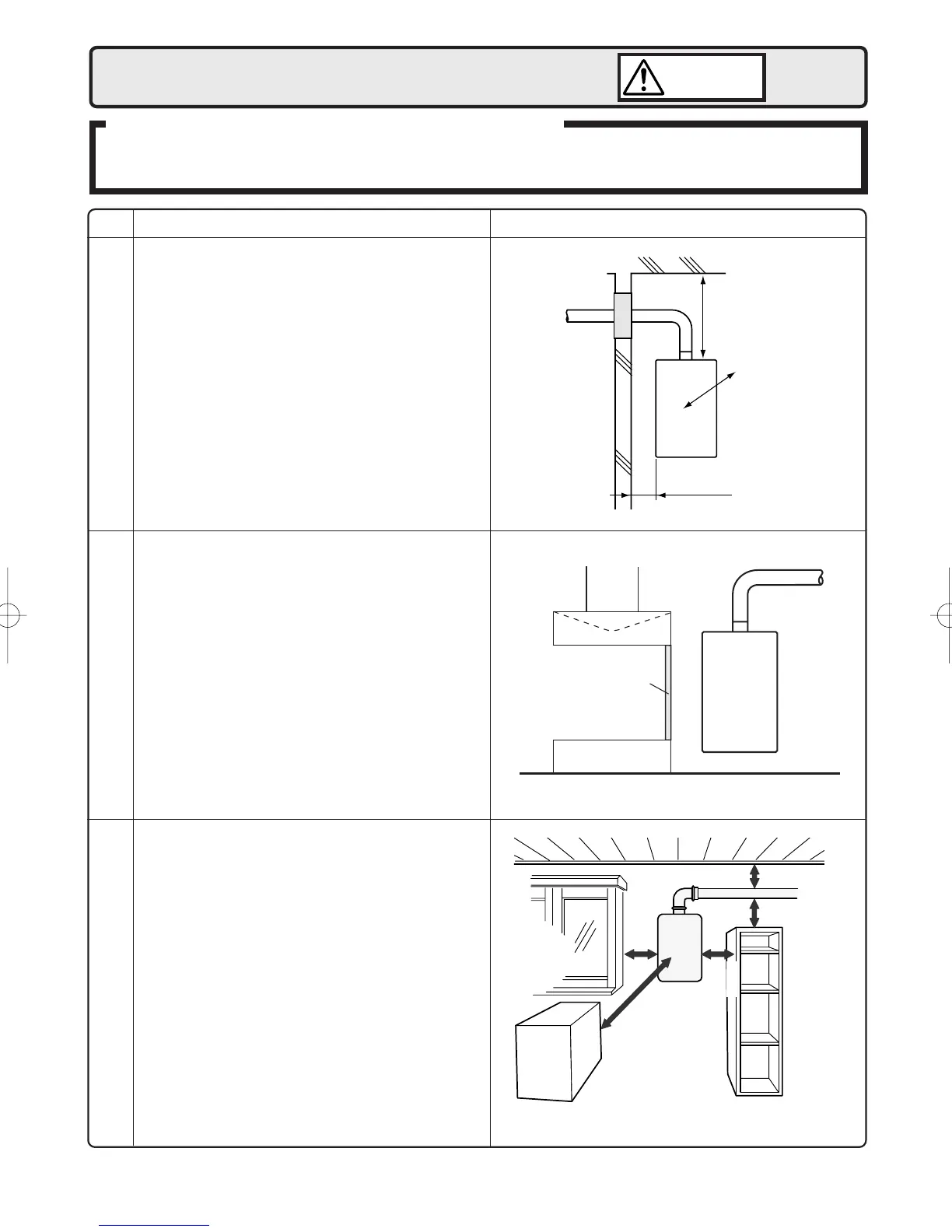

6. Installation Clearances
Before installing, check for the following:
Install in accordance with relevant building and mechanical codes, as well as any local, state
or national regulations.
Caution
Item
Required Clearances
From Heater
•Maintain the following clearance from
both combustible and non-combustible
materials.
Check Illustration
12" Indoor
36" Outdoor
24" Outdoor
4" Indoor
2" Indoor
24" Outdoor
• If possible, leave 8" or more on either
side of the unit to facilitate inspection.
• If possible, leave 24" or more in front of
the unit to facilitate maintenance
and service if necessary.
Securing of space for
repair/inspection
24" or
more
8" or
more
8" or
more
Min: 3"
Min: 3"
• If the unit will be installed in the vicinity of a
permanent kitchen range or stove that has
the possibility of generating steam that
contains fats or oils, use a dividing plate or
other measure to ensure that the unit is not
exposed to air containing such impurities.
* The dividing plate should be of noncombust-
ible material of a width greater than the
water heater.
Exhaust hood
Range
Dividing plate
Water
heater
(unit: inch)
Cooking Equipment
