TECHNICAL DATA
Motor 230V ~ 50Hz, 2200W, IP54
Splitting force 7 t
Splitting length 520 mm
Splitting diameter* 50–250 mm
Hydraulic pressure 23 Mpa
Hydraulic oil capacity 2,8 l
Length 1200 mm
Width 660 mm
Height 850 mm
Weight 46,5 kg
This product fulls the requirements of quality class HA 2807.
* The diameter of the log is indicative – a small log can be difcult to split when it has knobs or a
particularly tough ber. On the other hand, it may not be difcult to split logs with regu-lar bers even
if its diameter exceeds the max. Figure indicated above.
ELECTRICAL REQUIREMENTS
Connect the main leads to a standard 230V+10% (50Hz+1Hz) electrical supply which has protection
devices of under-voltage, over-voltage, over-current as well as a residual current device (RCD) which
maximum residual current rated at 0.03A.
PRODUCT DESCRIPTION
This log splitter is a home use model. It is designed for operating under ambient tempera-tures
between +5°C and +40°C and for installation at altitudes no more than 1000m above M.S.L. The
surrounding humidity should less than 50% at +40°C. It can be stored or trans-ported under ambient
temperatures between -25°C and +55°C.

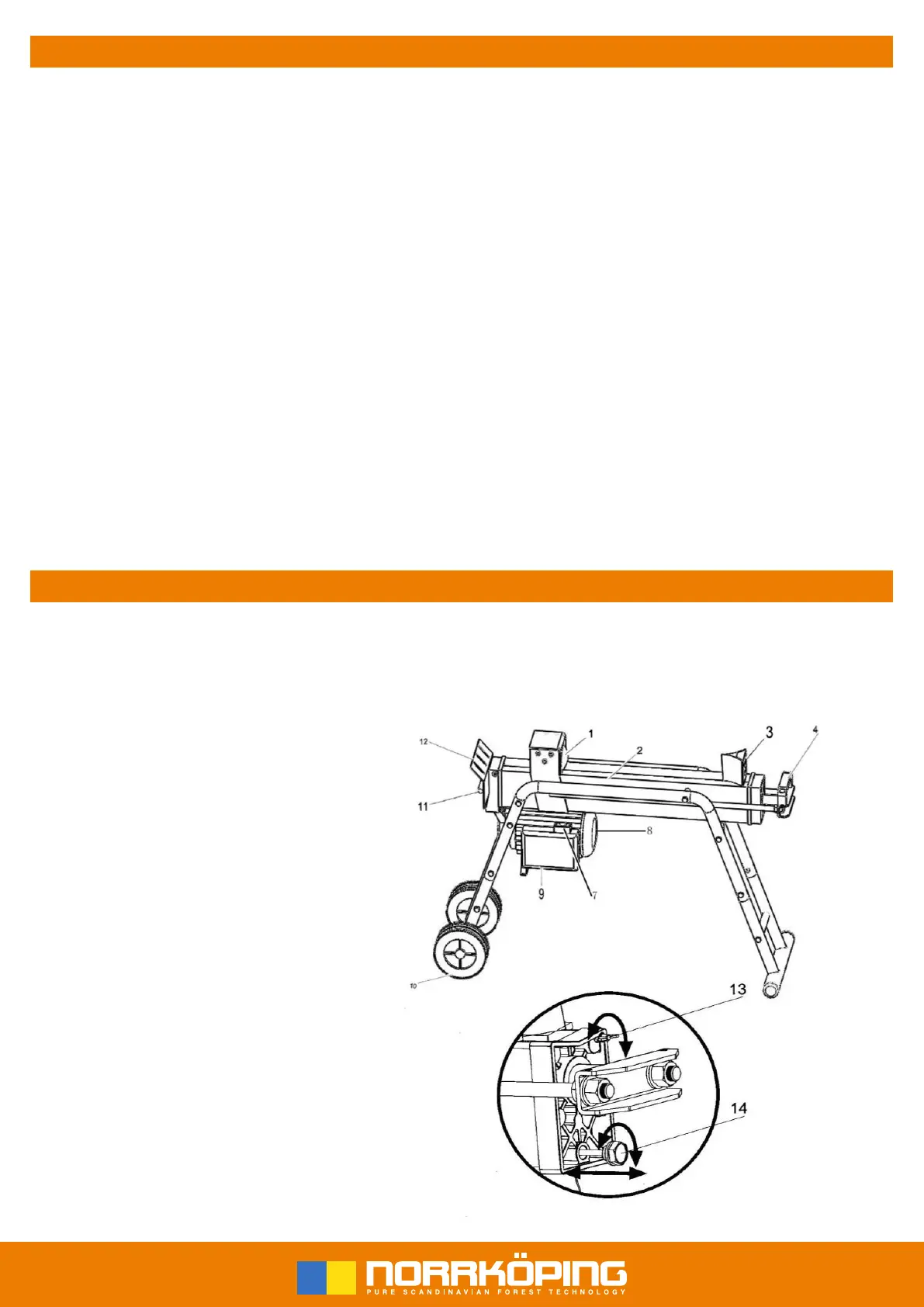

Machine parts
1. Log Pusher
2. Work Table
3. Wedge
4. Lift Handle
7. Switch
8. Motor
9. Pushbutton Box
10. Wheels (for Minor Moving ONLY)
11. Hydraulic Control Lever
12. Control Lever Guard
13. Bleed Screw
14. Oil Drain Bolt w/ Dipstick
