NORSELIGHT XENON R50 Series User Manual

10
In accordance to MSC/Circ. 982 Pos 5.5.1 “Movement of Controllers” and 5.5.2 “Corresponding Movements “
The position indicator on the Main Control Panel indicates the position of the searchlight. 0
o
position on the panel
indicates that the searchlight is positioned straight forward compared to the searchlight 0
o
position.
The searchlight has an 180
o
movement to the left and right end position, in total 360
o
.
To calibrate the position indicator, you simply use the joystick on the Main Control Panel to turn the searchlight to
end stop to both left and right end position.

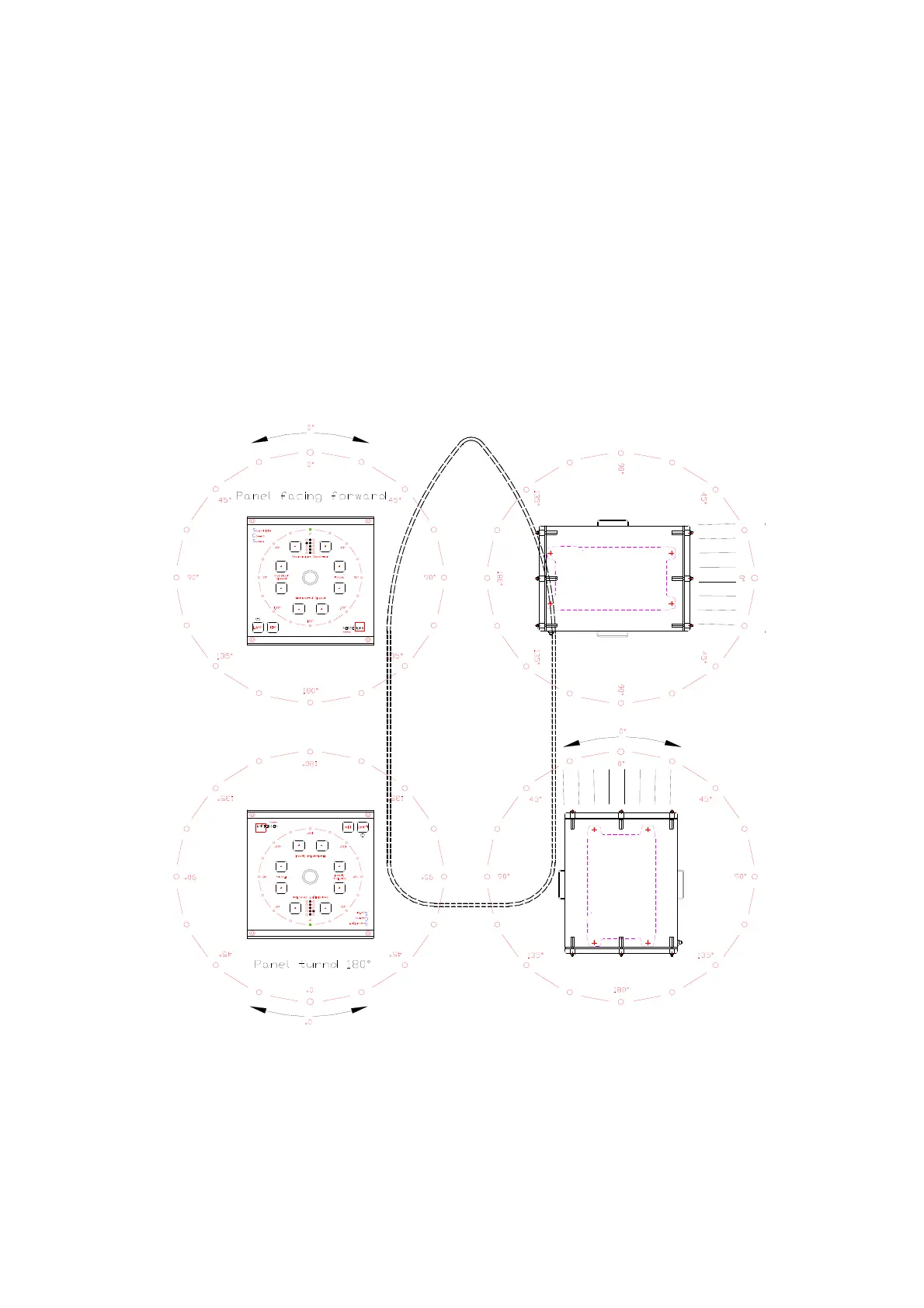

1.6 Main Control Panel position indicator versus searchlight
position:
