NORSKE NMAP004 - Blade Management and Maintenance; Blade Adjustment and Cut Guide

To Next Page

To Previous Page

- 6 -

BLADE ADJUSTMENT

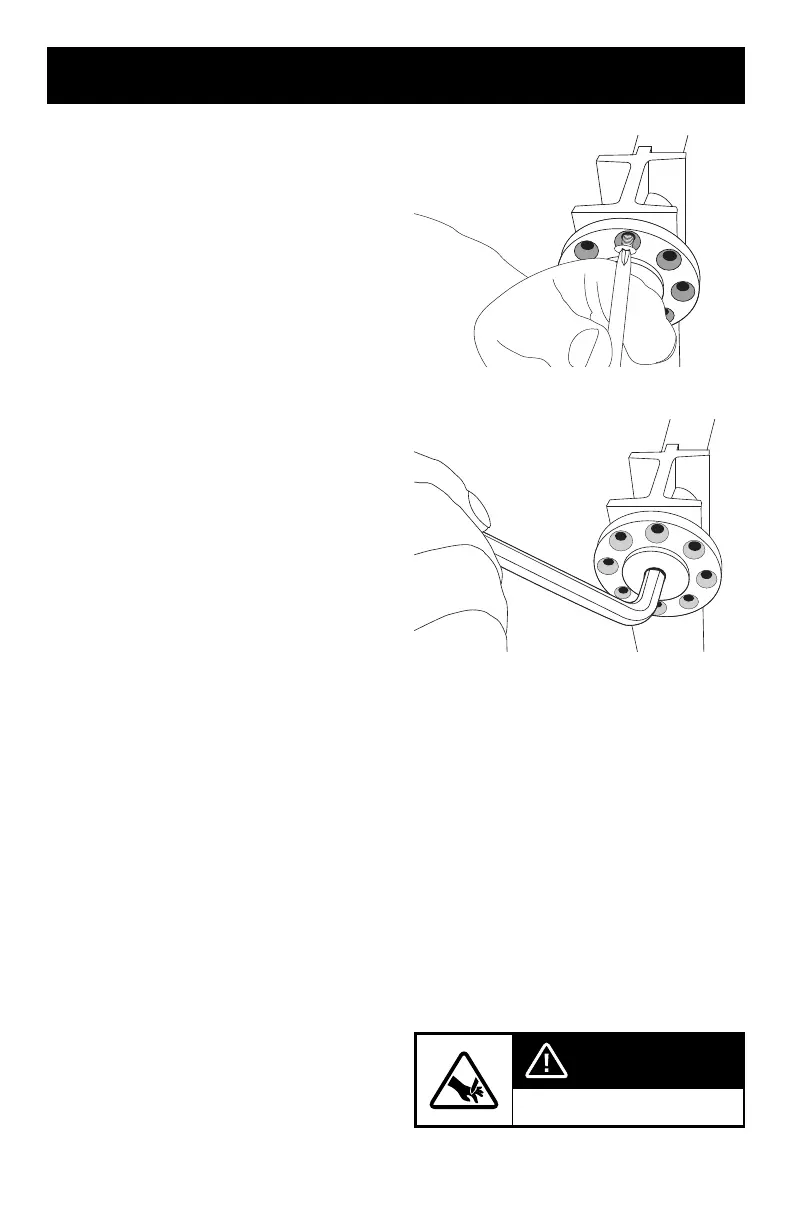

FIGURE 8

FIGURE 9

WARNING

VERY SHARP BLADE

1. Unscrew and remove the adjustment

plate screws (Fig. 8).

2. Tighten both adjustment plates by

1 or 2 holes (Fig. 9).

NOTE: The pitch on each lifting screw

is .125mm. The adjustment on both plates

must be the same.

ATTENTION! NO ADJUSTMENT IS NEEDED

ON ALL BRAND NEW UNITS.

Your tool cuts a wide variety of products.

Please refer to this cut guide for
