Nortek E4EB Series User Manual

18
 010H 012H 015H 017H 020H 023H 023H 5-TON
rated Heating output, BtuH (See note 1) 35,000 41,000 53,000 57,000 70,000 75,000 75,000
wattS (total kw, Heating elementS & Blower) 10.4 12.0 15.4 16.6 20.4 22.0 22.0
Supply Voltage 240 Volts/60Hz/1-Phase
Heating elementS, no. (total kw) 2 (10.0) 2 (11.6) 3 (15.0) 3 (16.2) 4 (20.0) 4 (21.6) 4 (21.6)
Blower wHeel Size
10.5” Dia,
8” W
10.5” Dia,
8” W
10.5” Dia,
8” W
10.5” Dia,
8” W
10.5” Dia,
8” W
10.5” Dia,
8” W
11" Dia., 8" W
motor Speed, H.p. rating, ampS 4 Speed, 1/3 HP, 2.9
4 Spd, 3/4HP,
3.8 Amps
teSt eSp, in. w.c. max 0.3
optional cooling aVailaBle witH Factory
inStalled Blower
2.0 - 4.0 Ton (See Note 3) 2.0 - 5.0 Ton
optional Heat pump aVailaBle witH Factory
inStalled Blower
2.0 - 4.0 Ton
air Filter (Standard) 16" x 20" x 1" (nominal)
Furnace dimenSionS Width-20" (508mm), Height-29" (737mm) (see note 2), Depth-24 1/2" (623mm)
NOTES:
1. Heating output rated at listed voltage. For outputs at voltages other than 240V, multiply Btuh rating by the following factors: x 0.92 (230V),
x 0.84 (220V), x 0.75 (208V).
2. Height is 56” with return air grille installed, 58” with coil cabinet and 72” with coil cabinet and upflow stand.
3. The factory installed blower can be replaced with a multi-speed blower allowing the units to accept up to 5 tons of air conditioning.
Unit Specifications
Electrical Data

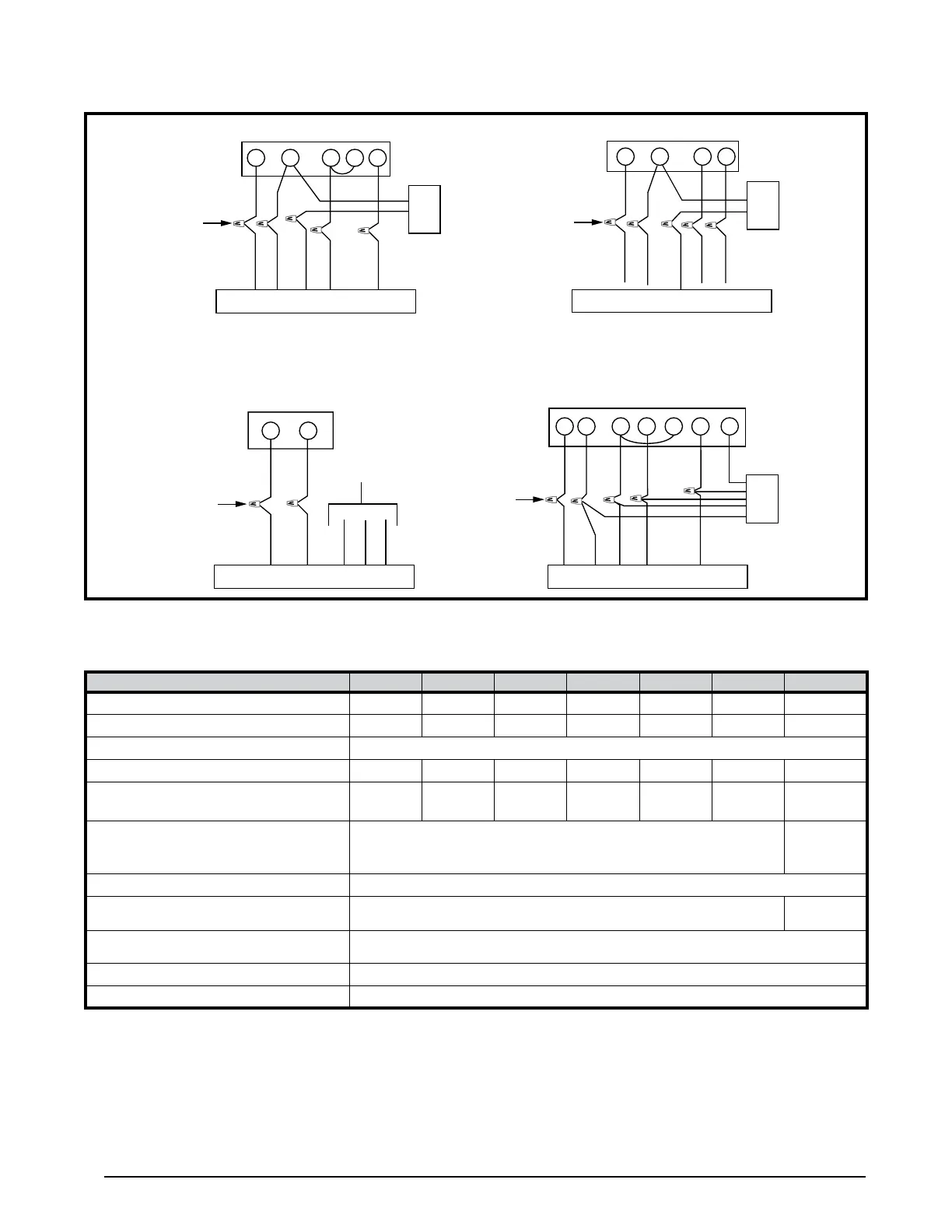

Figure 22. 
W
G
WHITE
GREY
RED
W
Y
WHITE
GREY
RED
GREEN
5-WIRE THERMOSTAT
WHITE
RED
UNSTRIPPED
WIRES
GREY GREEN
4-WIRE THERMOSTAT
WIRE
NUTS
WHITE
GREY
RED
GREEN
TO
H/P
HEAT PUMP THERMOSTAT
2-WIRE THERMOSTAT
GREEN
Y
RC RH
YELLOW
TO
A/C
G
R
YELLOW
G
R
W2
C
E
Y
O
TO E4EB FURNACE CONTROL WIRING
TO
A/C
TO E4EB FURNACE CONTROL WIRING
WIRE
NUTS
WIRE
NUTS
TO E4EB FURNACE CONTROL WIRING
WIRE
NUTS
W
R
TO E4EB FURNACE CONTROL WIRING
YELLOW YELLOW
