North Star 5044310 - Page 35

35

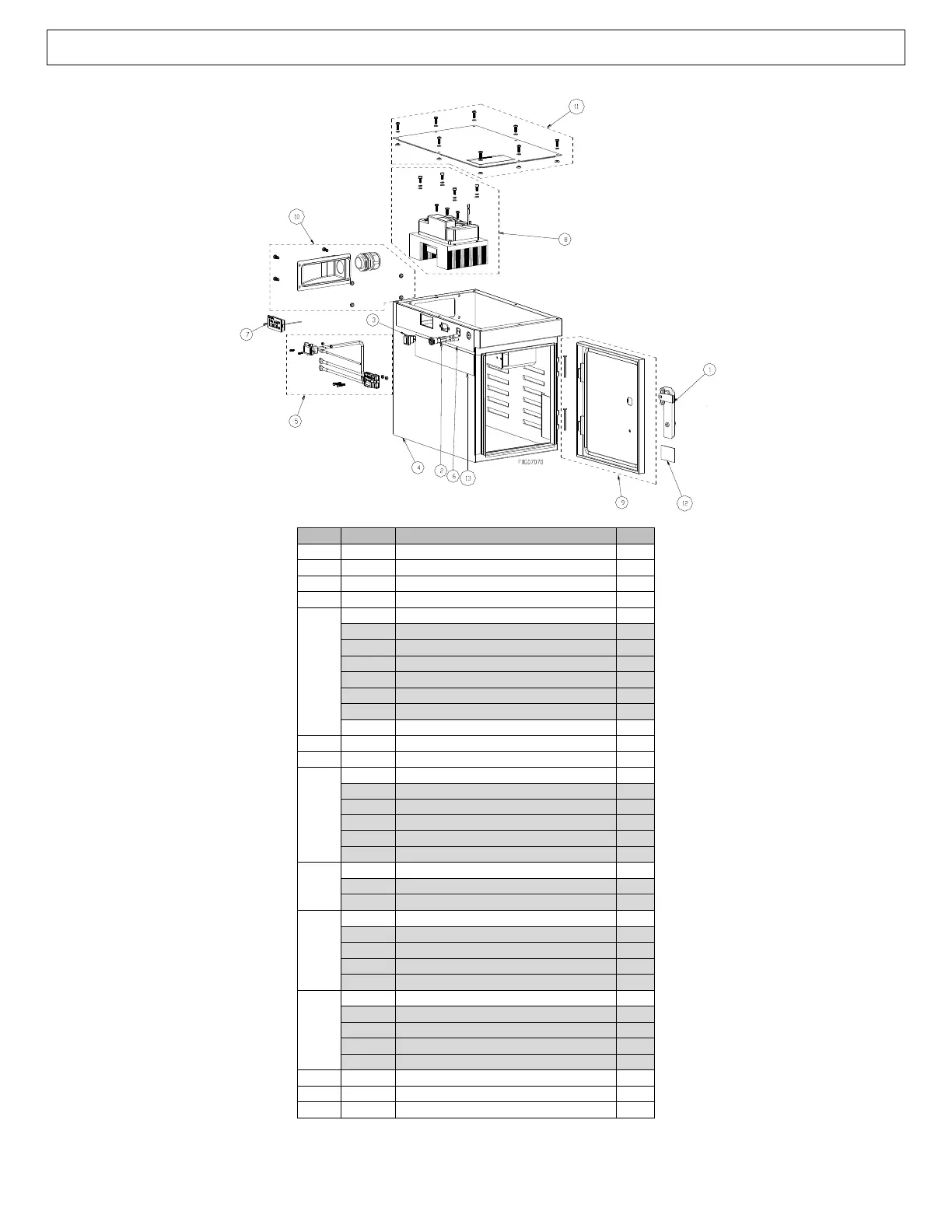

Parts Breakdown – Exploded View – Rev B
Ref #
Part #
Description
QTY
1
804626
LATCH, BATTERY BOX DOOR
1
2
805028
SWITCH, MAIN POWER
1
3
804636
SWITCH, ROCKER WITH COVER
1
4
804687
BATTERY BOX WELDMENT, SPLITTER
1
5
805124
WIRE HARNESS KIT, SPLITTER
1
-
WIRE HARNESS
1
-
SCREW, M3 -0.5 X 12mm
2
-
NUT, M3 -0.5 NYLOC
2
-
MAIN CONNECTOR
1
-
BOLT, M4 -0.7 X 20mm HHCS
2
-
NUT, M4 -0.7 NYLOC
2
802671
WIRE SLEEVING, 1200mm
1
6
804773
DECAL, CONTROL PANEL, SPLITTER
1
7
805196
BATTERY MONITOR, 60V
1
8
805125
MOTOR CONTROLLER KIT
1
-
MOTOR CONTROLLER
1
-
SCREW, M5 -0.8 X 15mm PPHM
3
-
SCREW, M5 -0.8 X 12mm SHCS
4
-
WASHER, M5 SPRING
4
-
WASHER, M5 FLAT
4
9
805120
DOOR KIT
1
-
DOOR
1
-
PIN
2
10
805121
WIRE ROUTING BOX KIT, SPLITTER
1
-
WIRE ROUTING BOX
1
-
CORD STRAIN RELIEF
1
-
SCREW, #10-24 X 15mm PPHM
4
-
NUT, #10-24 NYLOC
4
11
805123
BATTERY BOX LID KIT
1
-
LID
1
-
SCREW, #10-24 X 15mm PPHM
8
-
D-RING
8
-
WASHER, NYLON
8
12
805003
DECAL, LATCH INSTRUCTIONS
1
13
805004
DECAL, 60V LI-ION
1
N/A
804686
BATTERY BOX FULL ASSEMBLY, SPLITTER
1
