Assembly Instructions
Fasteners Needed (Located on Tank Assembly):
.
Step 2 – Tow Bar to Tank
NOTE: Nut and bolt are installed (hand tight only) on tow bar mount
for packaging purposes. Remove nut and bolt prior to beginning this
step. They will be re-installed.

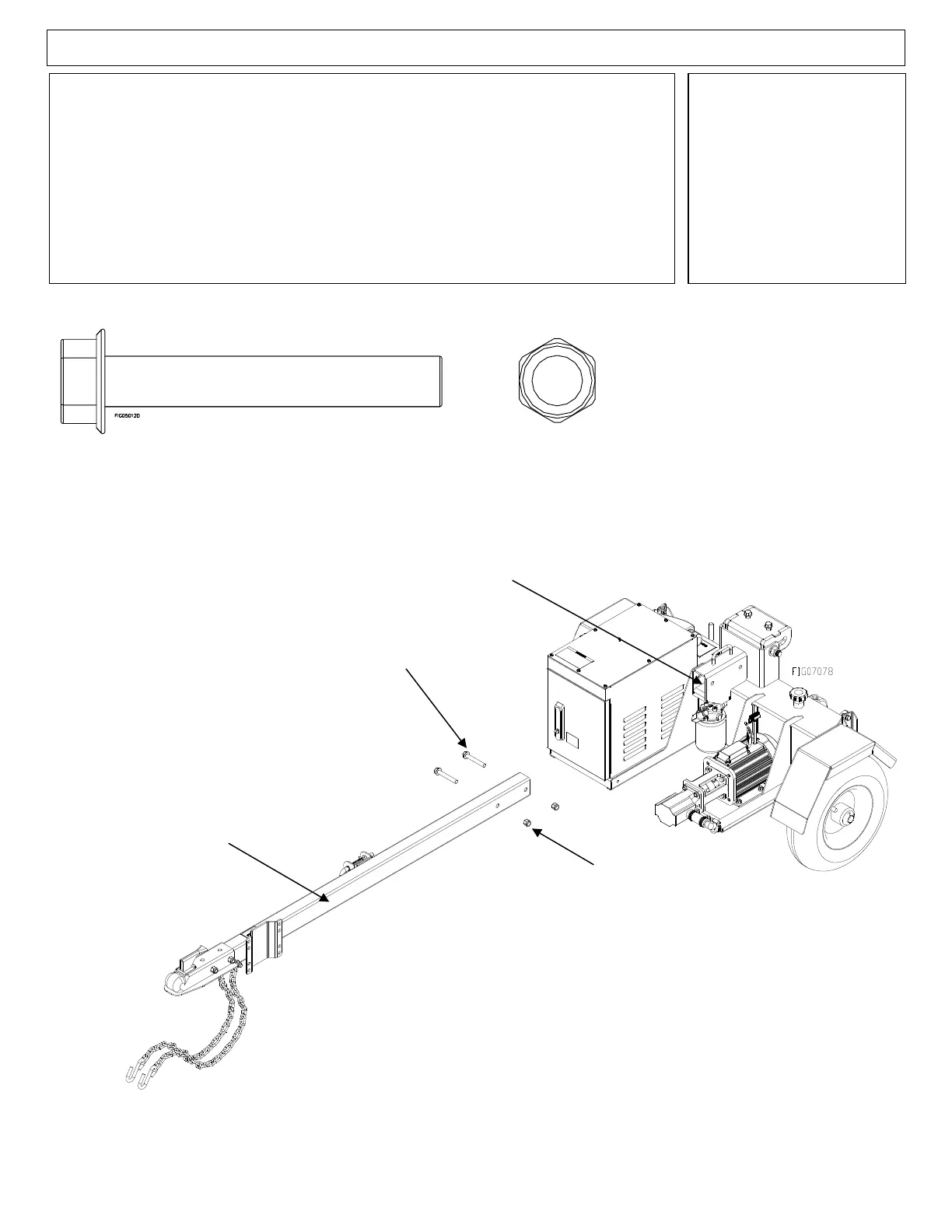

• Align holes on the tow bar to the tow bar mount on the hydraulic tank
assembly.
• Re-install (2) bolts and (2) nuts and tighten with wrench.
• Torque to 71 ft.-lb.
Tools Needed
• 18mm Wrench
(2 Needed)
• Torque Wrench
Nut
Bolt
Tow Bar
Mount
Tow Bar
Tow Bar to Tank
Flange Bolt
Qty 2
Tow Bar to Tank
Nyloc Nut
Qty 2
