Assembly Instructions

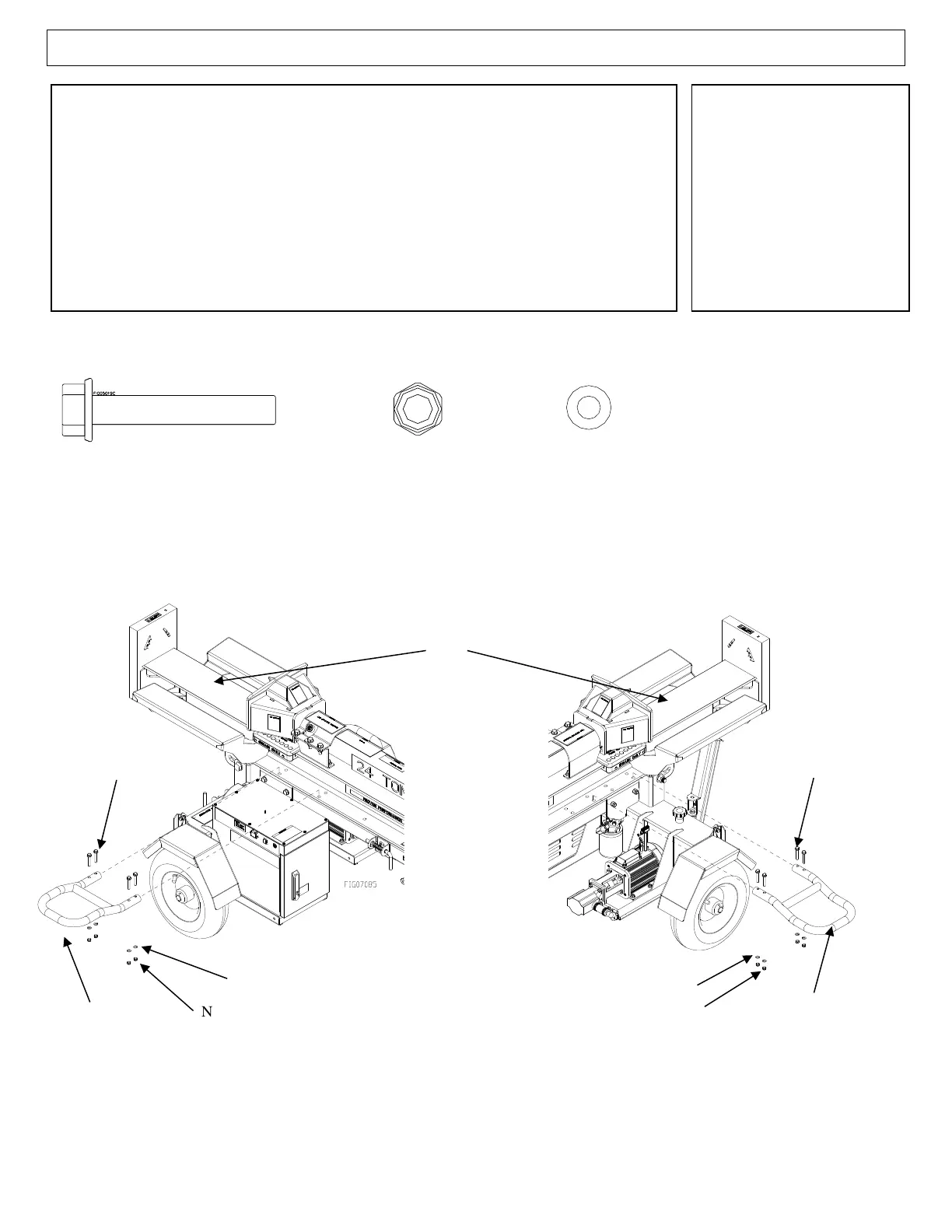

Step 9 –Guards to Beam
• Align guard bracket to the two sets of holes in the beam
• Using (4) bolts, (4) nuts and (4) washers, secure guard to beam.
• Torque to 20 ft.lb. CAUTION: Over-tightening can crush tube.
• Repeat above steps for second guard on opposite side of beam.
Tools Needed
• 13mm Wrench
(2 Needed)
• Torque Wrench
Guard to Beam
Flange Bolt
Qty 8
Guard to Beam
Nyloc Nut
Qty 8
Guard to Beam
Flat Washer
Qty 8
Beam
Guard
(Oriented Downward)
Nut
Bolt
Washer
Fasteners Needed from Parts Bag:
Washer
Nut
Bolt
Guard
(Orientated upward)
