Assembly Instructions
Tools Needed
• 13mm Wrench
• Torque Wrench

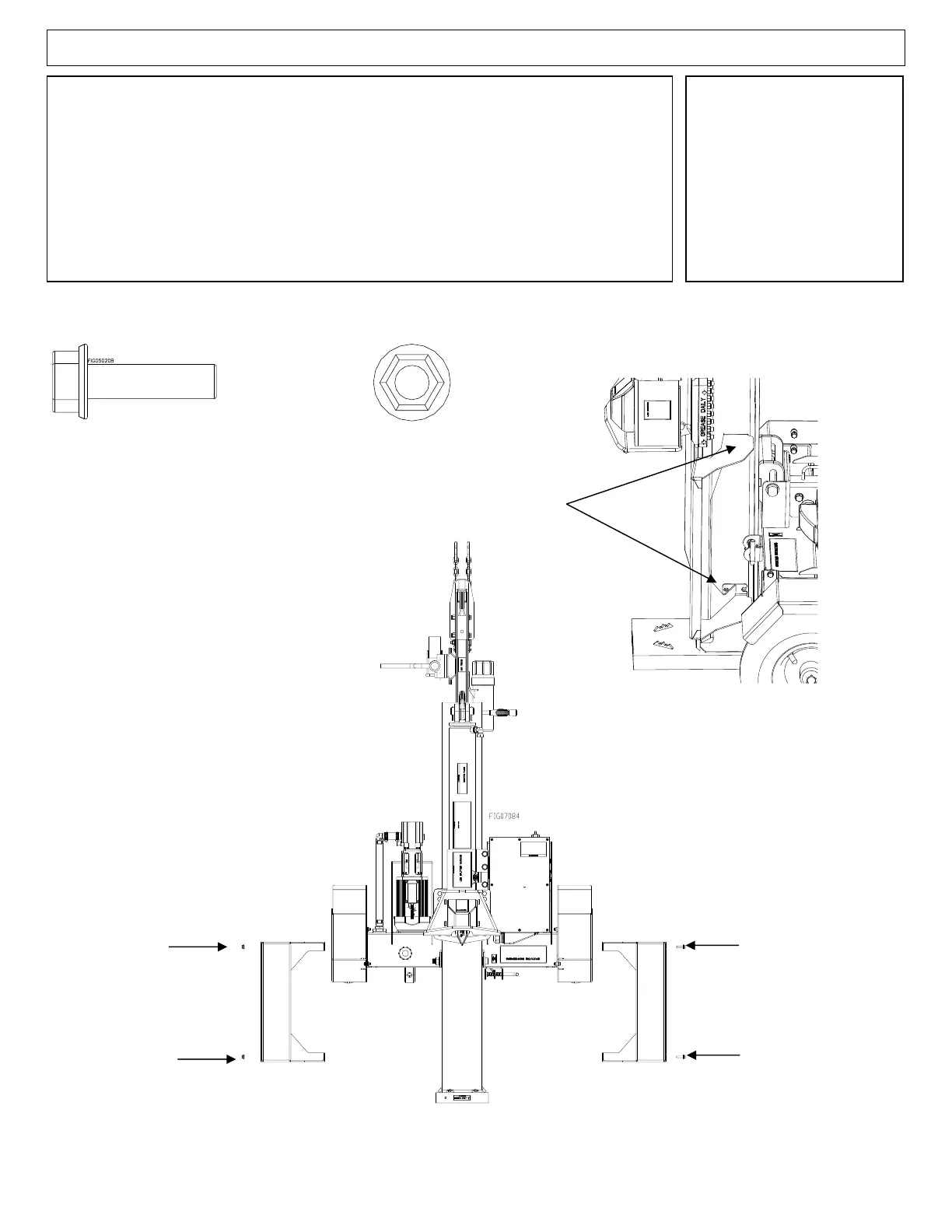

Step 8 – Log Tables to Beam
• Align right side log table to beam and insert the top (2) bolts and
bottom (2) bolts.
• Align left side log table to the bolts inserted above. Add (4) nuts onto
bolts and secure tightly.
• Torque to 21 ft.-lb.
• Note: It may be helpful to have another person assist with this step.
Log Cradle to Beam
Flange Bolt
Qty 4
Log Cradle to Beam
Flange Nut
Qty 4
Side view of
bolt locations
Fasteners Needed from Parts Bag:
Right Side
Left Side
Nut- 2x
Nut- 2x
Bolt- 2x
Bolt- 2x
