Assembly Instructions
Step 15 – Valve Installation Continued
• Align valve plate to the top three holes on the mounted valve.
• Using (3) Screws and (3) Nuts secure plate to valve.
• Torque to 102 in.-lb.
Tools Needed
• 10mm Wrench
• Philips Screwdriver
• Torque Wrench
•

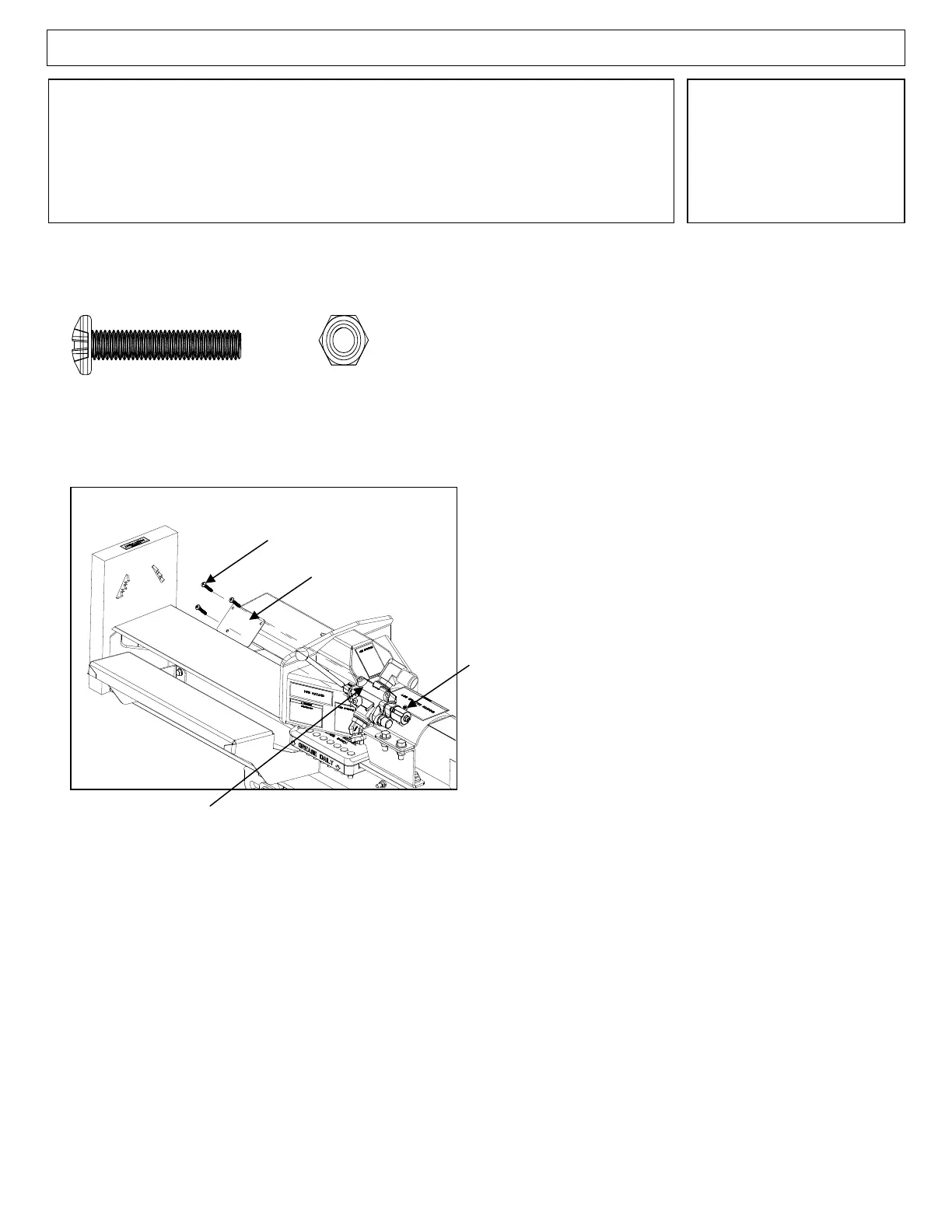

Hydraulic
Valve
Bolt
Valve Plate
Nut
Valve Plate
Cap Screw
Qty 3
Valve Plate
Nyloc Nut
Qty 3
Fasteners Needed from Parts Bag:
