Assembly Instructions
Hoses Needed:
Tools Needed
• 1” Wrench
• 7/8” Wrench
OR
• Crescent Wrench
(2 Needed)

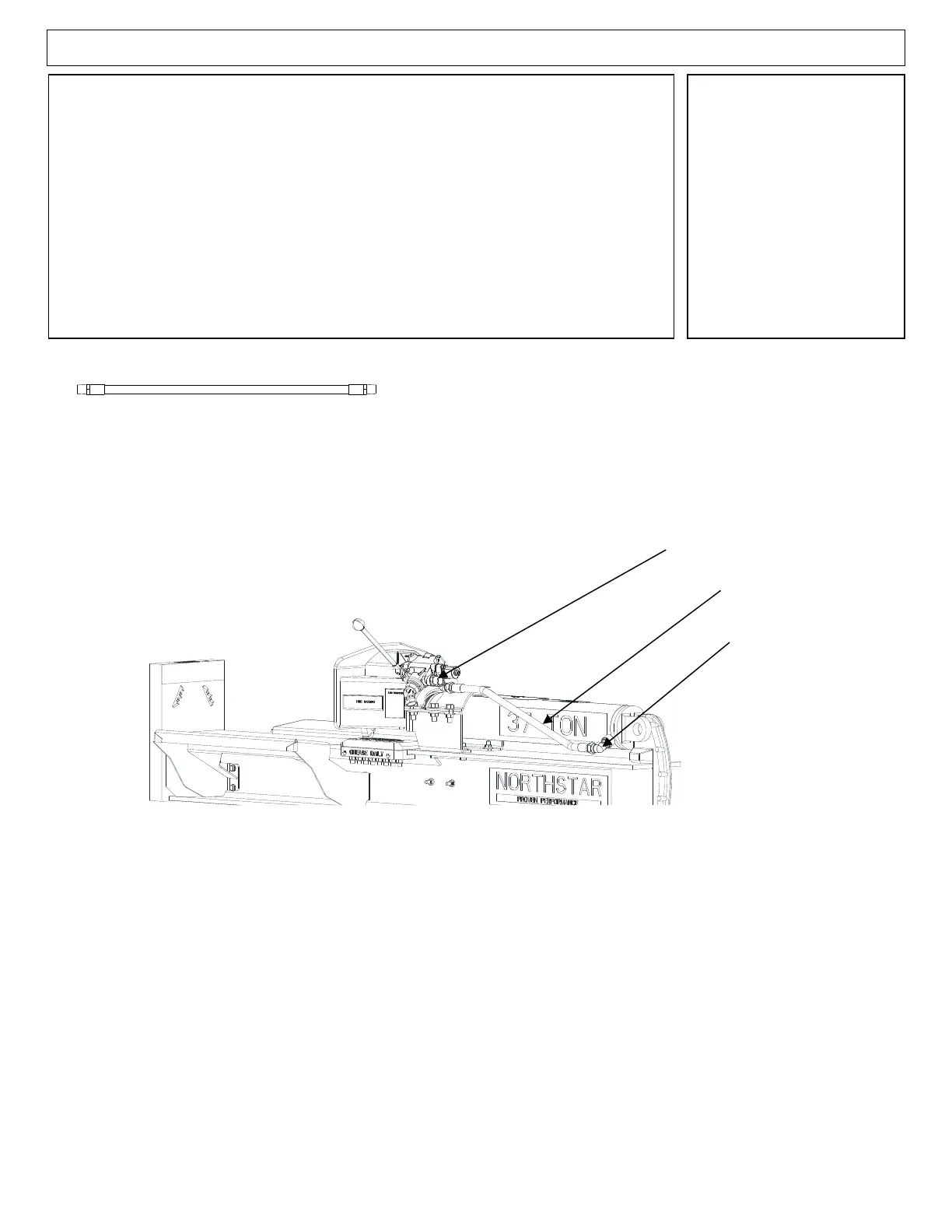

Step 16 – High Pressure Hose Routing
• Route (1) Short High-Pressure Hose from the Valve to Cylinder Fitting
on the control valve to the 90° Elbow Cylinder
• Screw finger-tight Short High-Pressure Hose to the Valve to Cylinder
Fitting
• Wrench tighten 1.5-3.0 Turns Past Finger Tight
• Screw finger-tight remaining end of Short High-Pressure Hose to the
90° Elbow Cylinder
• Wrench tighten 1.5-3.0 Turns Past Finger Tight
Valve to Cylinder Fitting
Short High-
Pressure Hose
90° Elbow
Cylinder
Valve to Cylinder Hose
High Pressure Hose, 25” x 1/2” ID with
1/2" Male NPT fittings
Qty 1
