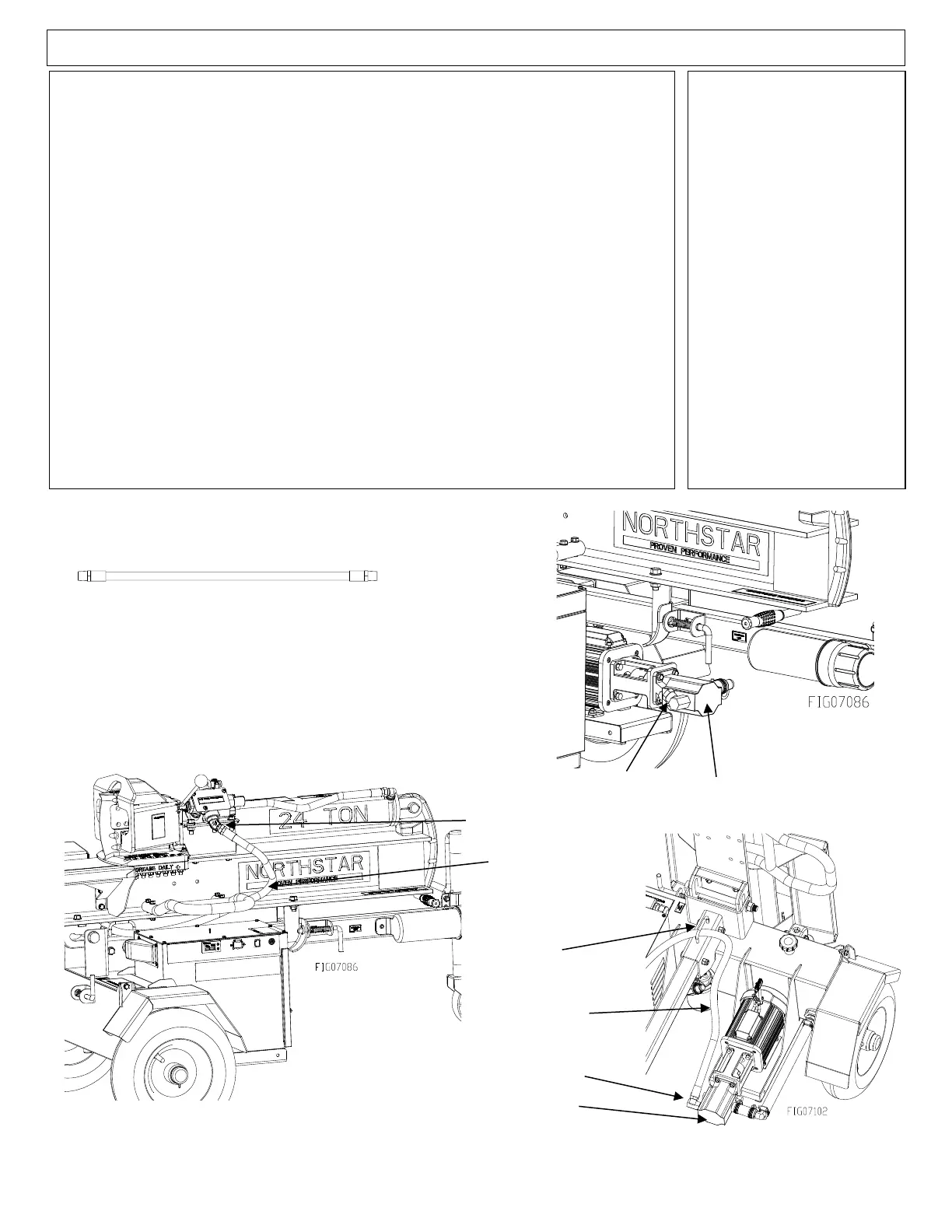

Step 17 – High Pressure Hose Routing Cont’d
• Remove plug from pump.
• Screw finger-tight (1) Pump Fitting into the pump
• Wrench-tighten the fitting to 1.5-3.0 Turns Past Finger Tight position.
Consider final orientation position as to not exceed the recommended TPFT.
Properly assembled fittings total thread engagement should be 3.5-6 turns.
• CAUTION: Never back off an installed pipe fitting to achieve proper
alignment. Loosening installed pipe fittings will corrupt the seal and
contribute to leakage and failure.
• Screw finger-tight Long High-Pressure Hose to Valve
• Wrench tighten 1.5-3.0 Turns Past Finger Tight
• Tip beam to vertical position and set outrigger leg to down position.
• Route Long High-Pressure Hose from the Valve to Hydraulic Pump Fitting,
routing through hose guide above towbar
• Screw finger-tight remaining end of Long High-Pressure Hose to the
Hydraulic Pump Fitting
• Wrench tighten 1.5-3.0 Turns Past Finger Tight
