Assembly (continued)
13

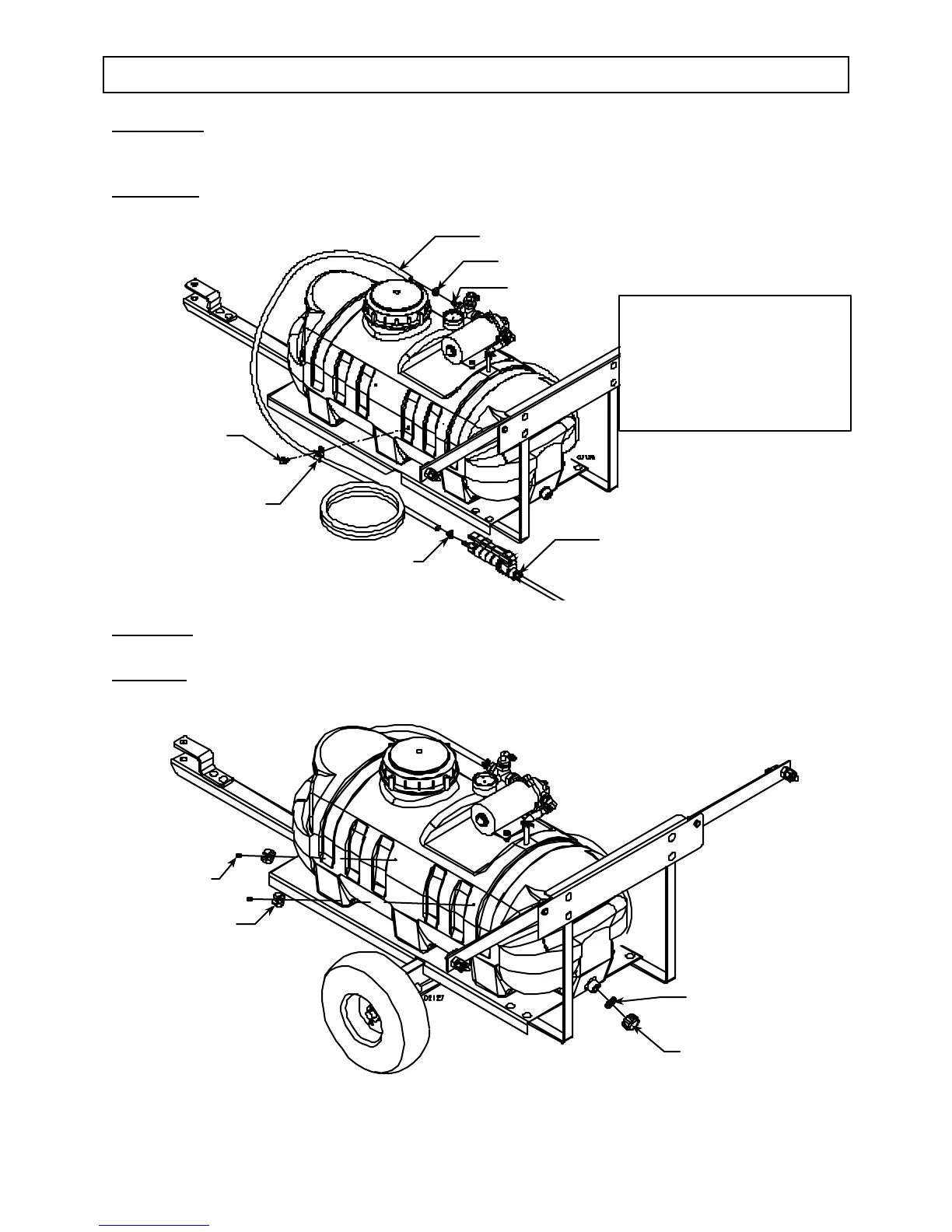

Step Seven: Attach gun hose to spray gun and pump
1. Attach one end of gun hose to the pump hose barb. Follow hose clamp installation instructions.
2. Attach the other end of gun hose to the spray gun. Follow hose clamp installation instructions.
Step Eight: Attach hose guide to tank
Route gun hose around sprayer and through hose guide, then attach hose guide to tank with (1)
5/16 x ½” flange bolt.
Step Nine: Attach gun clips to tank
Fasten the gun clips to the sprayer tank with (2) #10 x ¼” screws.
Step Ten: Attach drain cap to tank
Press the rubber washer into the drain cap, then thread the drain cap onto the tank.
Hose clamp
Gun hose
Hose clamp
Pump hose barb
Spray gun
5/16 x ½
Flan
e bolt
Hose guide
Hose clamp installation instructions
1. Slide hose clamp over the end of
the hose
2. P ush the hose onto the hose barb
3. Slide the hose clamp over the hose
barb
4. Tighten the hose clamp
1
x
”
r
Gun clip
Rubber washer
Drain cap
To Next Page
