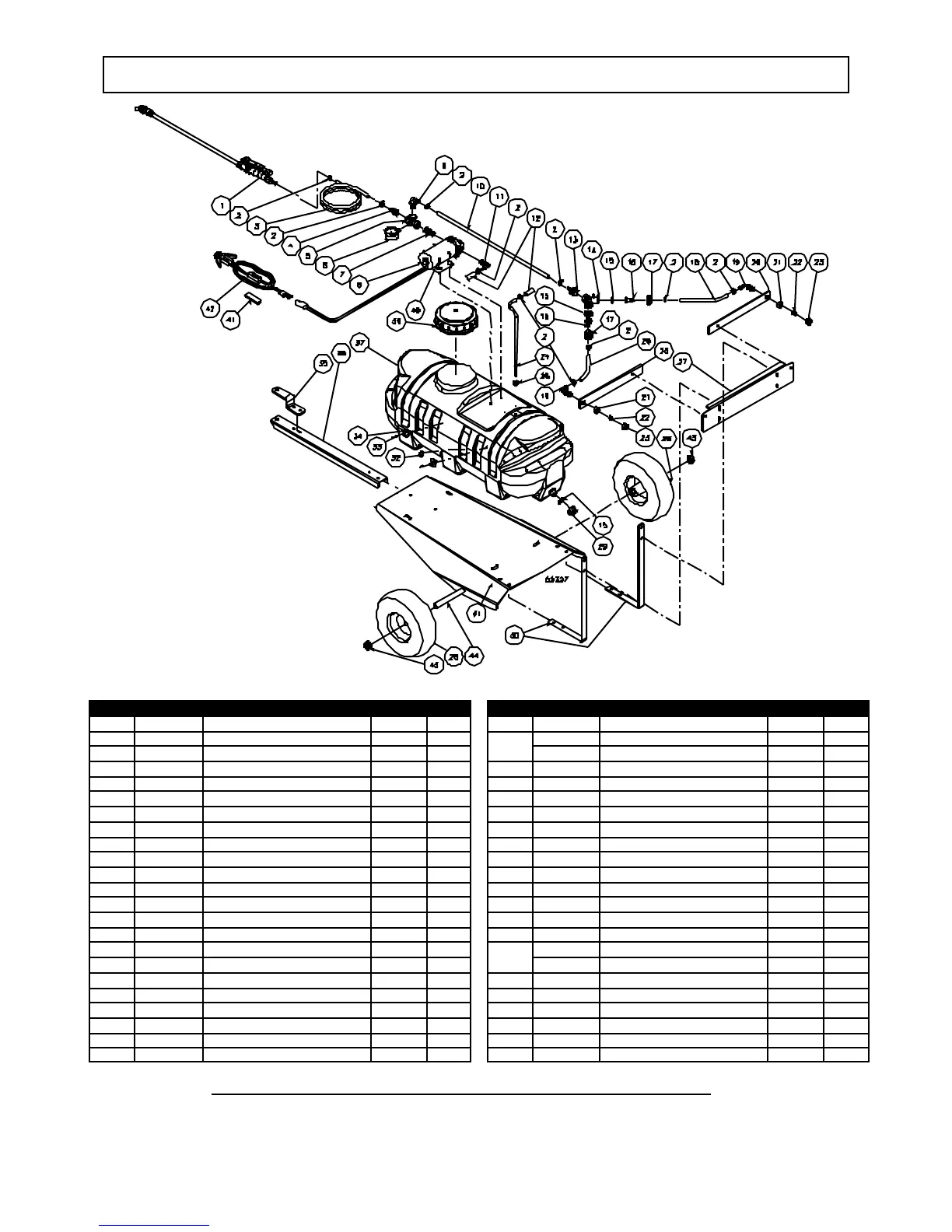

Exploded View – 28517/28518 – Rev. L
34
Item Part# Description Model Qty Item Part# Description Model Qty
1 39265 Spray gun All 1 23 777853 Swivel nut All 2
2 30746 Hose clamp All 10 38579 16 Gallon suction tube 28517 1
3 30290 Gun hose All 186”
24
38580 26 Gallon suction tube 28518 1
4 5286 Hose barb All 1 25 37689 Suction strainer All 1
5 5377 Tee w/ gauge port All 1 26 30290 24” Hose All 1
6 777848 Pressure gauge All 1 27 37697 Boom bracket All 1
7 5239 Pum p fitting All 1 28 2278 Tire All 2
8 37690 Sprayer pump All 1 29 37680 Drain cap All 1
9 35082 Hose barb elbow All 1 30 37698 Boom support All 2
10 30290 14” Hose All 1 31 778190 Cart base All 1
11 34115 Hose barb elbow All 1 32 777110 Hose guide All 1
12 30290 4.5” Suction hose All 1 33 82057 #10 x ¼” Screw All 2
13 5387 Hose barb All 1 34 52034 Gun clip All 2
14 777849 Boom valve All 1 35 778036 Hitch mount All 1
15 5232 Rubber washer All 3 36 778038 Tongue All 1
16 5380 3/8” Flat seat hose barb All 2 777468 16 Gallon tank 28517 1
17 777850 Swivel nut All 2
37
777469 26 Gallon tank 28518 1
18 30290 14” Hose All 1 39 778143 Tank Lid All 4
19 5383 Nozzle hose barb All 2 40 82061 #10 x 1” Screw All 1
20 30172 Boom arm All 2 41 35363 Velcro All 1
21 5230 Nozzle nut All 2 42 777493 Remote Switch All 1
22 777359 Nozzle All 2 43 305200 Wheel Retainer All 2
44 778039 Axle All 1
Any Questions, Comments, Problems or Parts Orders
Call NorthStar Customer Service 1-800-270-0810
