Northern Lights LX-E - Parts List

OLXE 03/10
15

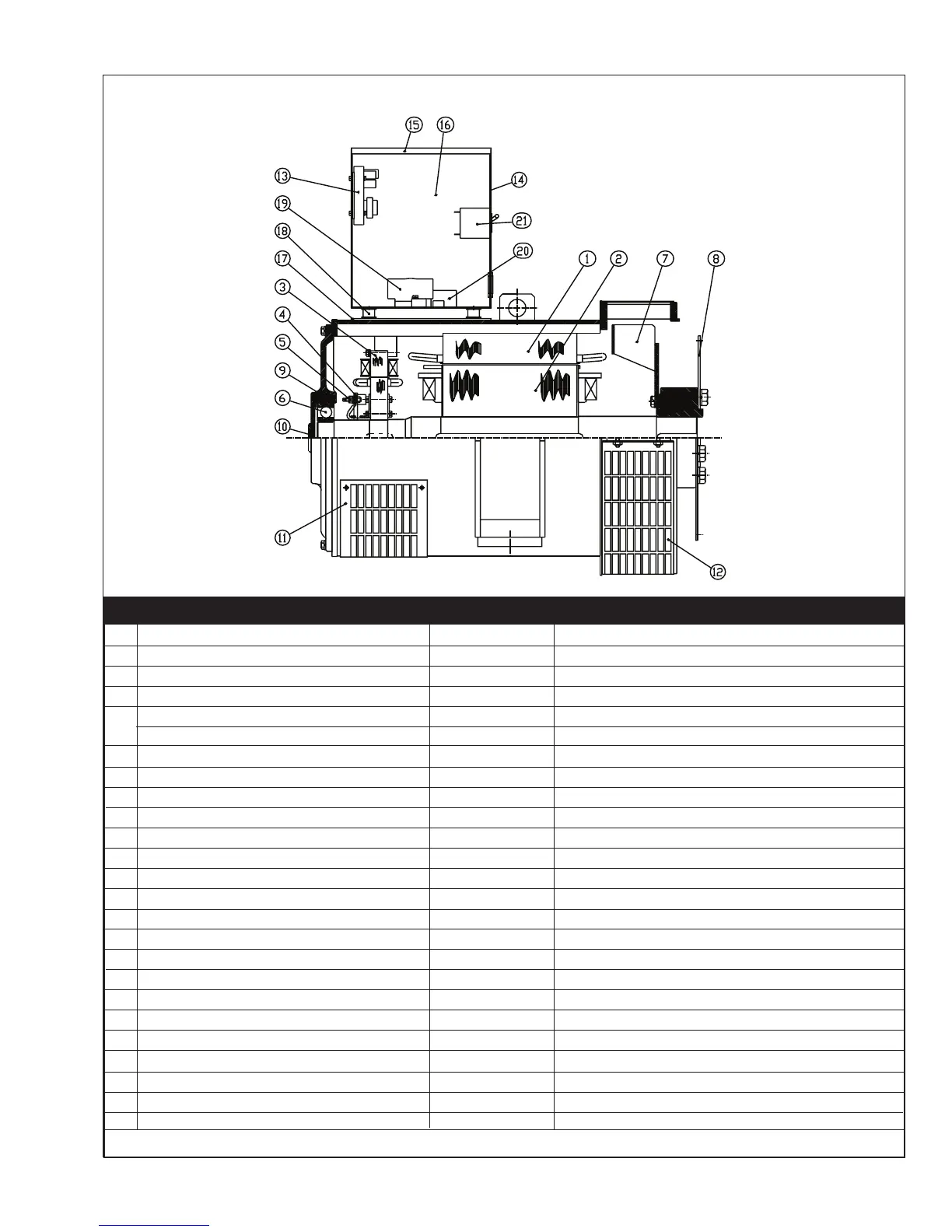

No Description LX-E 34E
1 Stator Assembly GW-20650-STF with frame GM304980-1
2 Rotor Assembly GM304982
3 Exciter Field Assembly WKC-0131-F
4 Rectifi er Assembly 3T201-084-3 with diode element
5 Diode Element SKN 26/12
Diode Element SKR 26/12
6 Bearing 6311ZZ
7 Fan Assembly GM34865-2 with coupling boss GM405464
8 Coupling Plate 4M698-011-1
9 Bearing Shield GM34467-3
10 Rubber Cap GM403175
11 Ventilation Cover GM413645 Inlet
12 Ventilation Cover GM413639 Outlet
13 Automatic Voltage Regulator 22-42071
14 Junction Box 3T303-671
15 Top Cover, Junction Box 4T302-144
16 Side Cover, Junction Box 4T302-859
17 Bracket, Junction Box 3T303-672 Left and right
18 Rubber Mount 33-40007
19 Terminal (Output) 22-45413
20 Terminal UK150-3J
21 Circuit Breaker 3 Amp 22-42077
3T102-435
LX-E Parts List
