layout reference only. The product is subject to adjustment periodically for improvement without
further notice.
V. Installation Guide

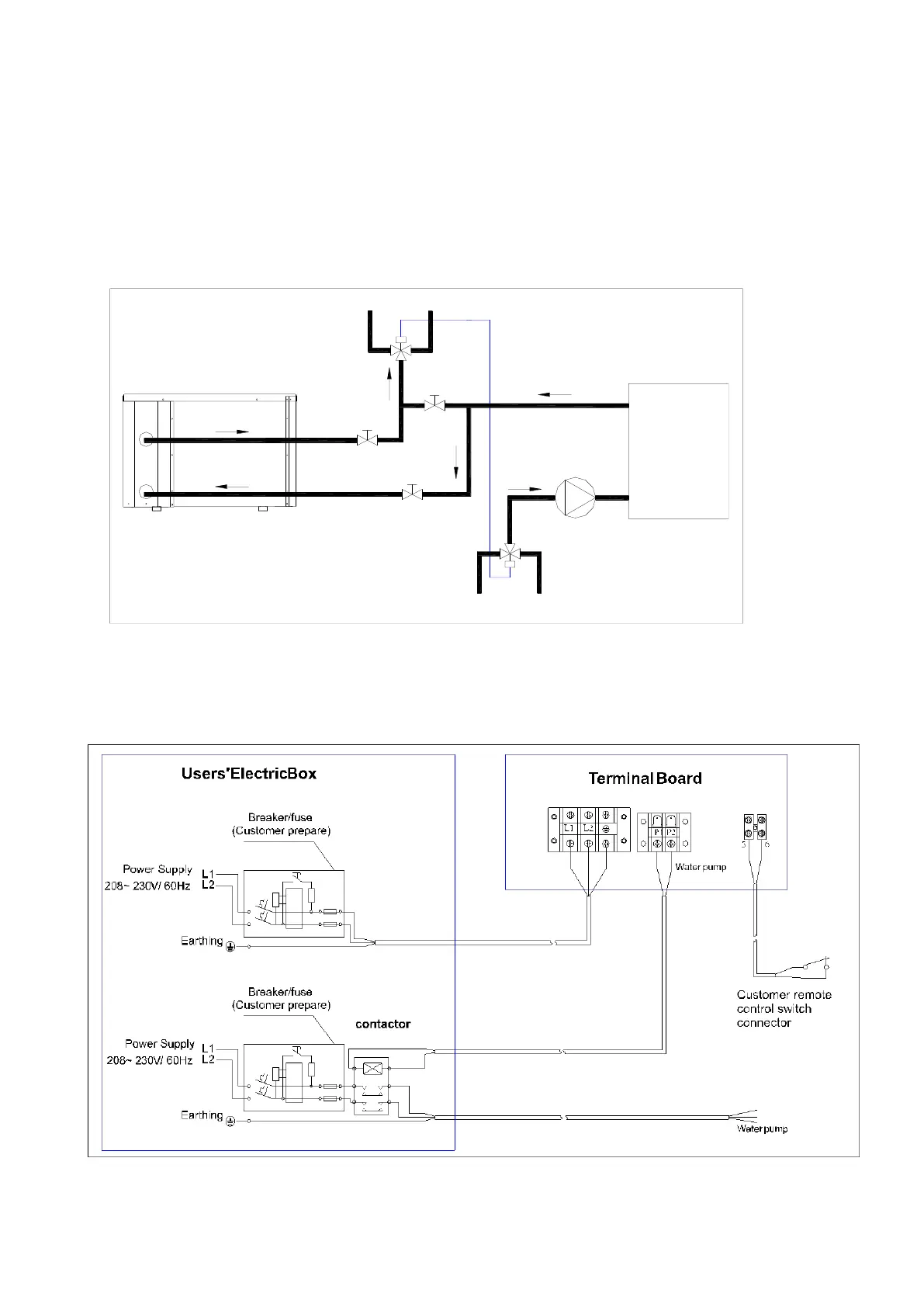

1. Drawing for water pipes connection
Pump
POOL WATER IN
WATER TO SWIMMING POOL
STOP VALVE
THREE WAY
VALVE
work together
STOP VALVE
STOP VALVE
THREE WAY
VALVE
OUTLET
INLET
SWIMMING
POOL WATER
TREATMENT
SYSTEM
Notice：The drawing is just for demonstration, and layout of the pipes is only for reference.
2.Electric Wiring Diagram
Note：The swimming pool heater must be earthed well.
