7
I. PREPARATION
B. Assembly
The GC55 and GC25E compact concrete saws are shipped completely
assembled and ready for use except for diamond blade, gasoline, oil, and
Handle Bar position for the GC55 and diamond blade, electrical extension
cord, and power supply for the GC25E. Inspect the saw for shipping damage.
If any damage is found, contact the shipper immediately and file a freight
claim. Saint-Gobain Abrasives, Inc. is not responsible for any freight-related
damages.

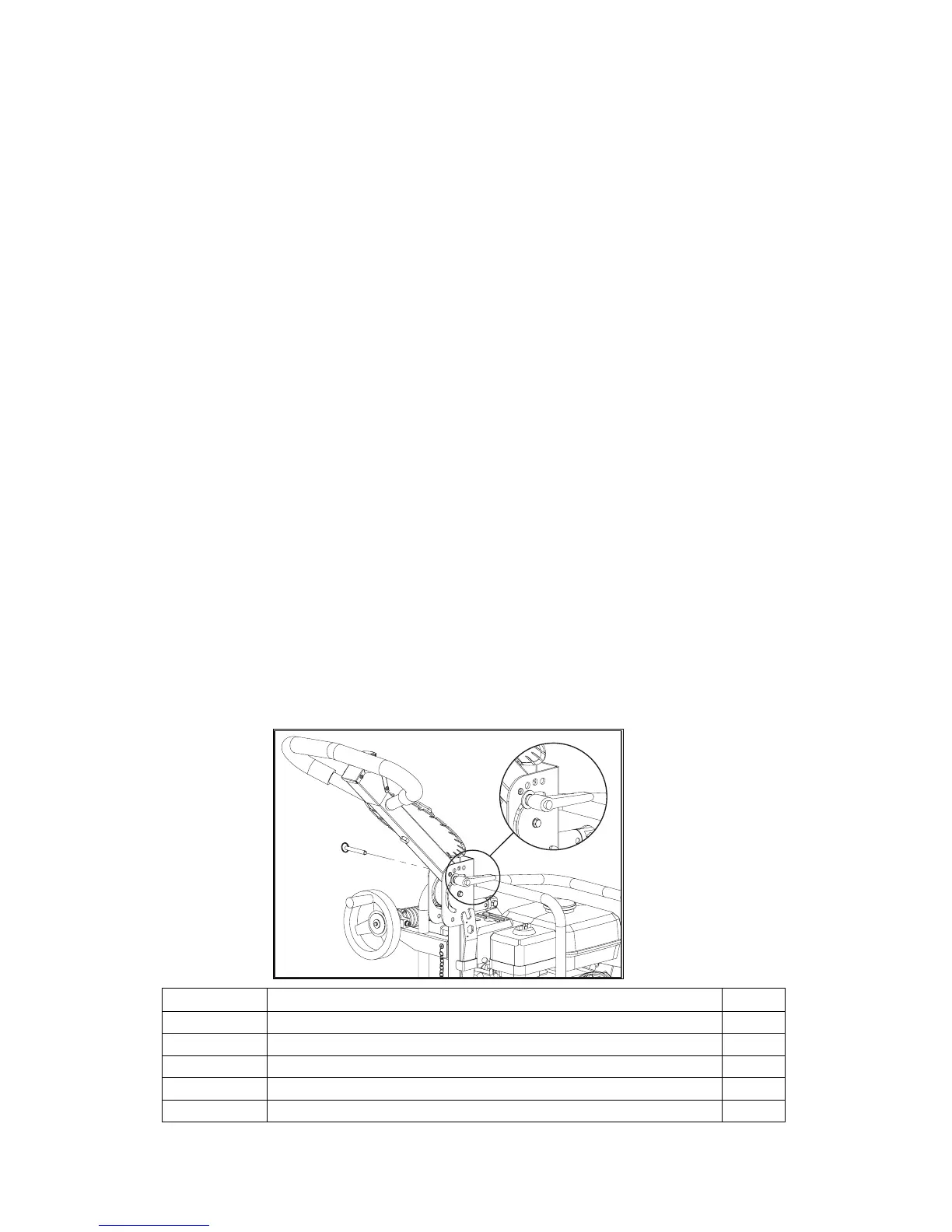

Adjust the Handle Bars Position:
1. Remove the GC55/GC25E from the box.
2. Remove the Quick Release Pin P/N: 241055 out of it’s retaining hole
3. Loose the Black Knob P/N: 241054.
4. Rotate the Handle Bar from the lowered storage position to the desired
position.
5. Align the hole in the Handle Bar with the holes in the frame.
6. Attach the Quick Release Pin P/N: 241055 by pushing it through the
hole in the Frame and then the hole in the Handle Bar. Make sure that
the Quick Release Pin passes all the way through both sides of the
Frame.
7. Tighten the Black Knob P/N: 241054.
Read and understand the remaining sections of this Owner's Manual. NOTE:
Do not install the blade until it is time to use the saw. ANSI regulations
prohibit the transportation of any concrete saw with the blade installed.
Part # Description QTY
241054 SCR 5/16-18 UNC X 2-1/2" CARRIAGE BOLT 1
241055 PIN QUICKRELEASE 5/16" X 2" GRIP LENGTH 1
241054 KNOB M8 X 1.25 ADJUSTABLE 1
232110 WASHER M8 DIN125 FLAT 1
241055 WASHER 3/8 WAVE 1
