ACPS ADDRESS SELECTION
The ACPS addresses MUST start at an address ending with
either “0” or “5”. DO NOT start the ACPS at address “000”.
Examples of effective start addresses are 5, 10, 15 ... 120;
start addresses can go up to 145 (with 0 – 158 on loop; 13
addresses utilized by programming options), or 85 on CLIP
systems (0 – 99 on loop; 13 ACPS addresses). Dependent
upon the programming options selected (by DIP switches), the
ACPS takes 5 (minimum) to 13 addresses on the SLC loop.
Address functions:
Address 1 = ACPS Trouble; tells FACP the ACPS is in
Trouble.
Address 2 = Activates NAC 1.
Address 3 = Activates NAC 2.
Address 4 = Activates NAC 3.
Address 5 = Activates NAC 4.
Address 6 = Silence Address (activation silences System
Sensor, Wheelock, or Gentex sync strobes).
Address 7 = Monitor AC Fail (Canadian requirement).
Address 8 = Monitor Battery (Canadian requirement).
Address 9 = Monitor Earth Fault (Canadian requirement).
Address 10 = Dual Stage (changes NAC 1 from 20 PPM to
Temporal).
Address 11 = Dual Stage (changes NAC 2 from 20 PPM to
Temporal).
Address 12 = Dual Stage (changes NAC 3 from 20 PPM to
Temporal).
Address 13 = Dual Stage (changes NAC 4 from 20 PPM to
Temporal).
ARCHITECTURAL/
ENGINEERING
SPECIFICATIONS
For specifications on the
ACPS-2406 addressable
power supply, please
contact NOTIFIER.
ORDERING INFORMATION
ACPS-2406: Remote charger power supply, with selectable
built-in synchronization, and four built-in control modules. In-
cludes power supply circuit board, transformers, and installa-
tion instructions. Several mounting options available (see be-
low).
CAB-PS1: The CAB-PS1 can house one ACPS-2406 and two 7
AH batteries. Dimensions: 15.218" (38.654 cm) high x 14.5"
(36.83 cm) wide x 3.562" (9.048 cm) deep with door; backbox
2.875" (7.303 cm) deep; 1.125" (2.858 cm) knockouts. Bottom
knockouts for use only when batteries are externally mounted.
Four mounting holes: two at 9.1" (23.114 cm) width apart from
each other (at centers) at upper left and right of backbox; another
two holes 10.625" (26.988 cm) below them (at centers).
BB-25: The BB-25 can house one ACPS-2406 and two 7 – 25
AH batteries.
CAB-3/-4 Series: The ACPS-2406 can mount in any of the
CAB-3/-4 Series cabinets. This can be in the bottom of the
cabinet or a tier via a CHS-PS and CHS-BH. See CAB-3 (DN-
3549) and CAB-4 Series (DN-6857) data sheets for model and
ordering information.
CHS-PS/CHS-6: Power supply mounting kit. Optional kit used
to mount the ACPS-2406 in a location other than the bottom of
the CAB-3/-4 cabinet (e.g., second tier).
CHS-BH: Battery mounting kit. Optional kit used to mount the
ACPS-2406 batteries in a location other than the bottom of the
CAB-3/-4 cabinet (e.g., second tier).
Batteries: ACPS-2406 battery charging circuit range is 7 – 25
AH. See PS Series (DN-1109) or BAT Series (DN-6933) for
models and ordering information.

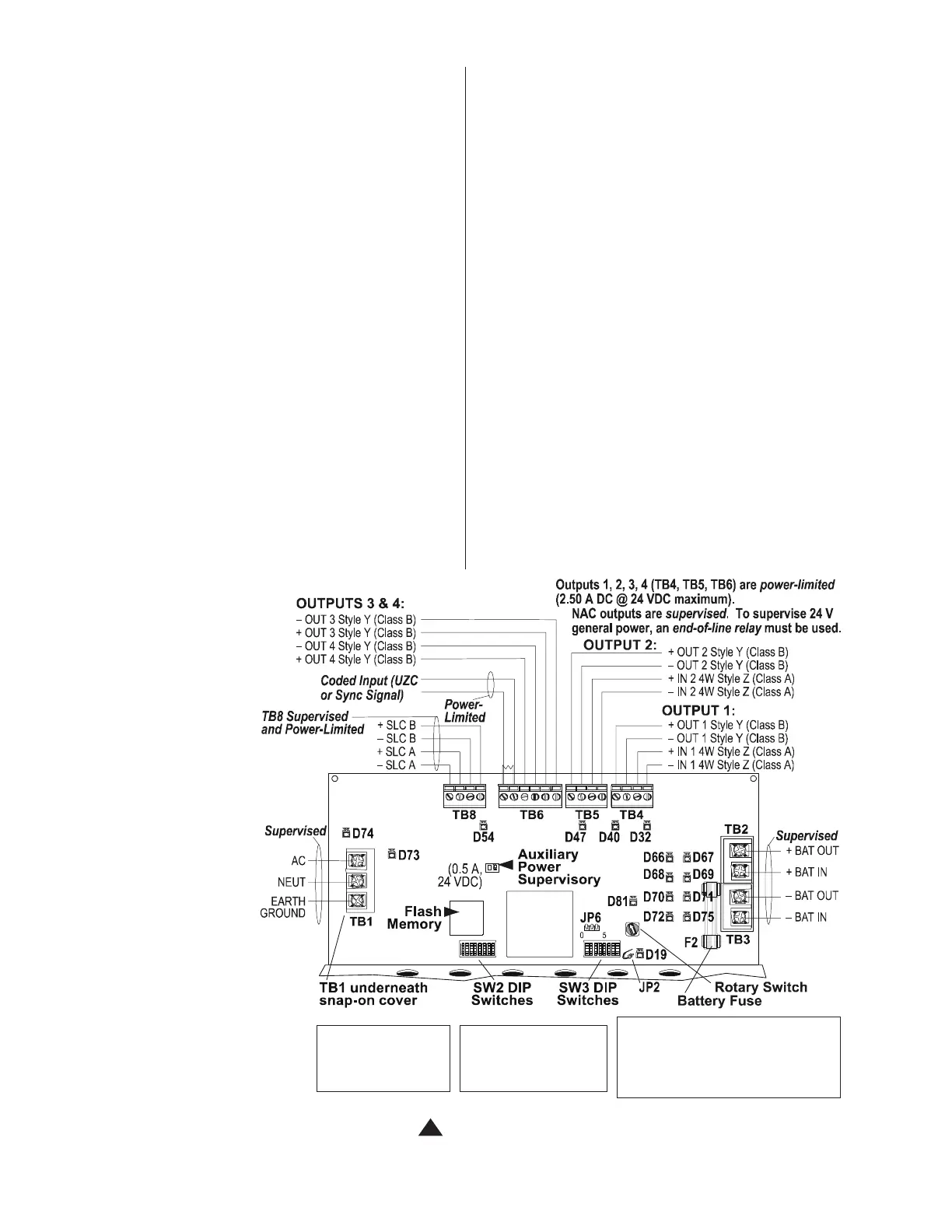

TERMINAL DESIGNATIONS
AND LED INDICATORS
LED INDICATORS
(L to R on board)
• SLC LEDs:
D74 SLCTXA (
GRN)
D73 SLCRXA (
GRN)
• Output LEDs:
D54 NAC 4 Output (
GRN)
D47 NAC 3 Output (
GRN)
D40 NAC 2 Output (
GRN)
D32 NAC 1 Output (
GRN)
• D81 Monitor Polling LED (
GRN)
• D19 Ground Fault LED (
YEL)
• Polling LEDs:
D66 NAC 1 Polling (
GRN)
D67 NAC 2 Polling (
GRN)
D68 NAC 3 Polling (
GRN)
D69 NAC 4 Polling (
GRN)
• D70 Common Trouble LED (
YEL)
• D71 Bat/Chg Trouble LED (
YEL)
• D72 UC Failure LED (
YEL)
• D75 AC LED (
GRN)
AC Input on
ACPS-2406:
120 VAC, 50/60 Hz,
2.7 A maximum.
F2 Battery Fuse: 15A, 3AB.
Battery: 7 AH to 25 AH, 24 VDC.
Float voltage 27.0 – 27.8 VDC.
Maximum charger current 1.1 A.
Maximum load current 6.0 A.
JP2 Ground Fault
Disable: Cut this
jumper to disable
ground fault detection.
