Notifier AUTOPULSE IQ-318 - FCM-1 Module Releasing Connections; Connecting a Releasing Device to the FCM-1 Module

44 IQ-318/E/C Installation Manual — P/N 52864:J3 9/29/15
Applications Releasing Applications

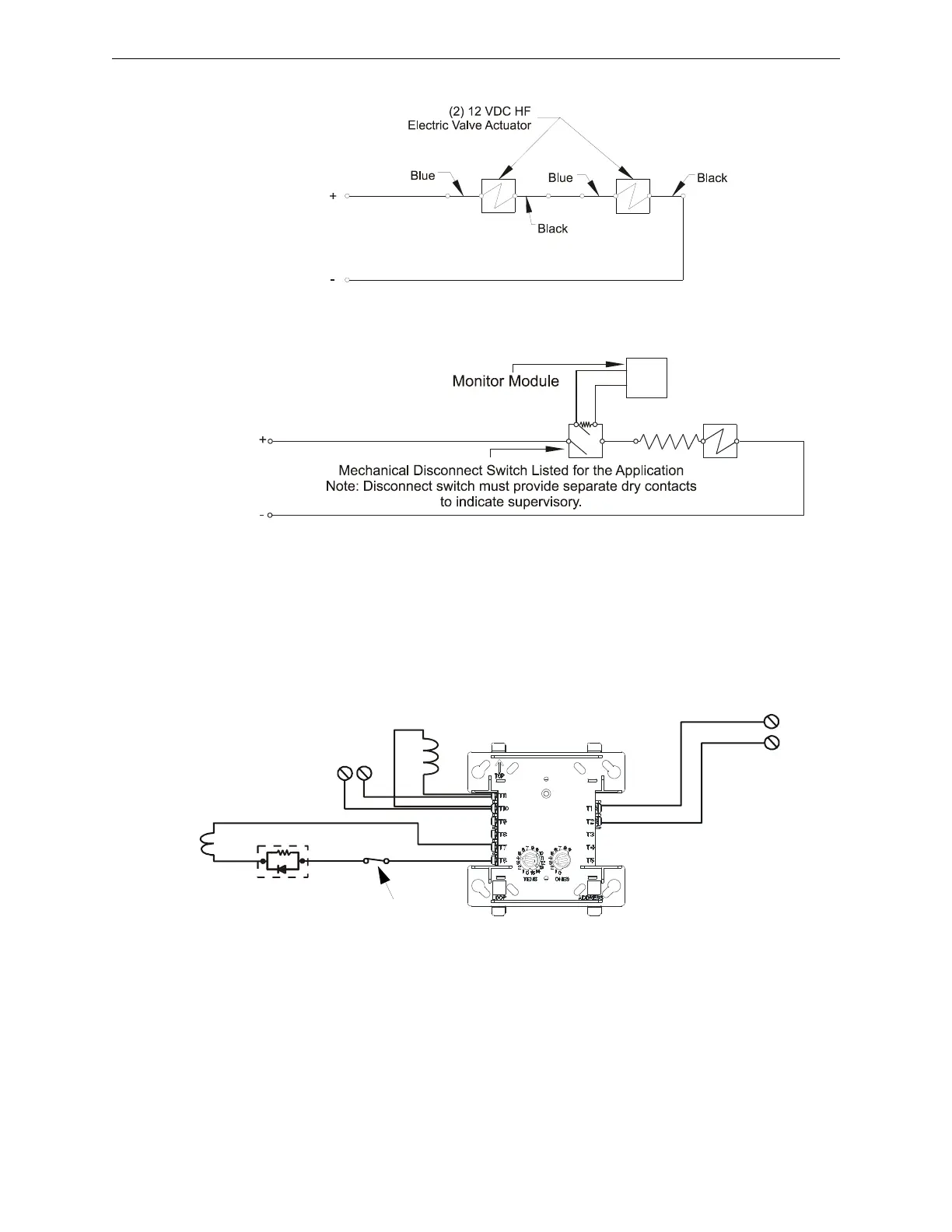

Figure 4.10 Releasing Circuits (Option 3)
)
Figure 4.11 Release Circuits (Mechanical Disconnect Switch)
4.7.5 Connecting a Releasing Device to the FCM-1 Module
The module can control 1 A of current. Make sure to keep total system current within the limits of
the power supply. You can power the module from the power supply of the Control Panel or any
UL/ULC listed 24 VDC regulated power-limited power supply for Fire Protective Signaling. For
more information, refer to the Device Compatibility Document.
Circuit Requirements When connecting a releasing device to the FCM-1 module, note the
following:
1. Refer to the Releasing Applications appendix in the IQ-318/E Programming Manual for
configuration details (such as setting the Soak Timer).
IQActuatorsb.wmf
GasDisconnect.wmf
–
+
–
Compatible UL-listed
24 VDC releasing device
REL-47K
(Use with Type Code
Rel Ckt ULC,
or see Circuit
Requirement 3.)
Brown Red
Non-resettable
24 VDC Power
Power Supervision
Relay (EOLR-1)
Relconn-fcmtpH.wmf
+ –
FCM-1
–
+
SLC from FACP
Note: See text for circuit requirements.
N.C. Supervision
Relay Contact
Part of EOLR-1
*If the SLC device does
not match the one in this
figure, refer to the SLC
manual appendix, which
contains wiring conversion
charts for type V and type
H modules.
Figure 4.12 Typical Connection of a 24 VDC Releasing Device to the FCM-1 Module
