Installation
Backbox Mounting
14
FCPS-24S
PN 51977:C1
08/06/03

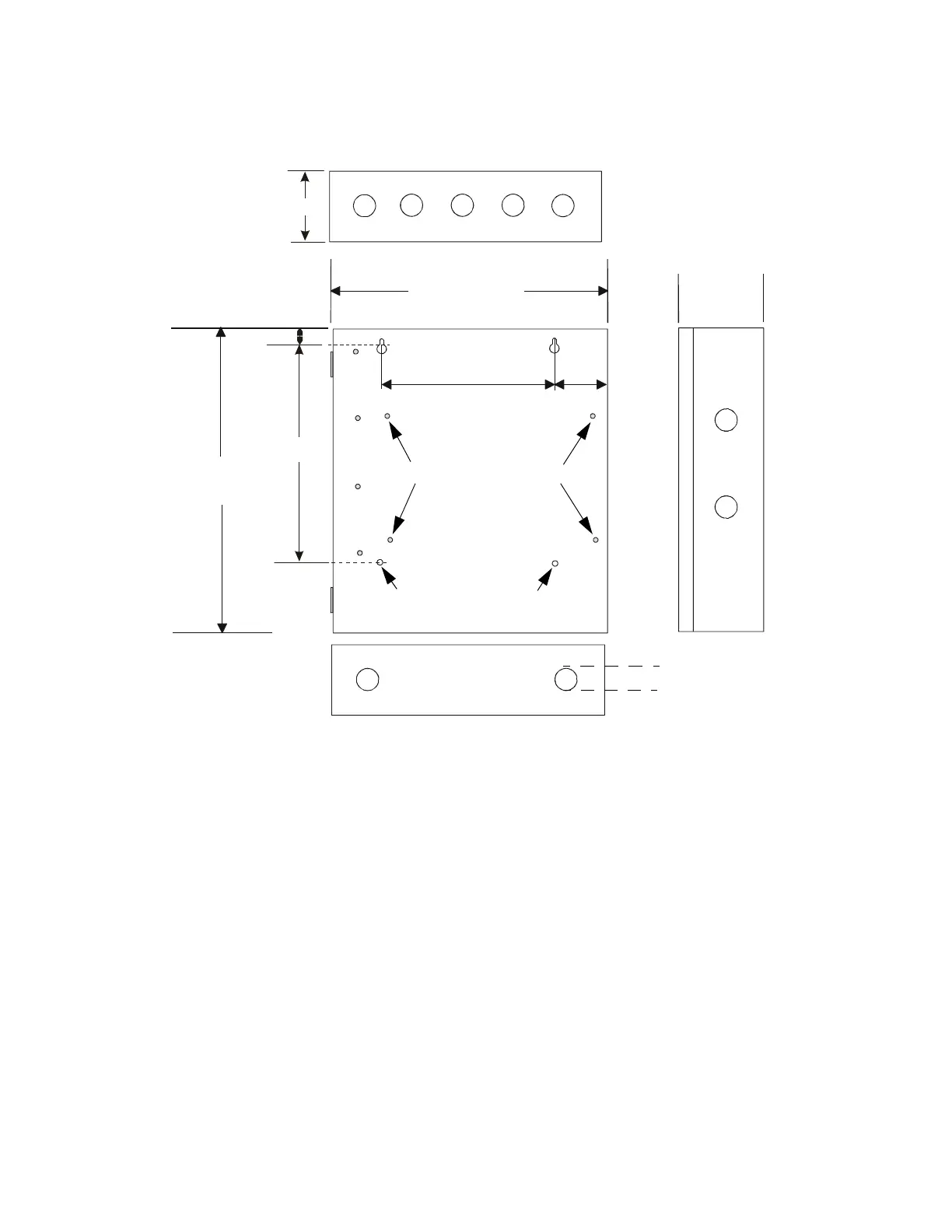

Figure 2.2 Backbox Mo
unting Dimen
sions
Bottom
Height=15.00”
(38.10 cm)
10.625”
(26.99 cm)
0.75”
(1.9 cm)
2.875” (7.3 cm)
Backbox = 14.5”
(36.8 cm)
Depth = 3.050”
(7.75 cm)
Top
9.1” (23.1 cm)
2.7”
(6.86cm)
1.125” (2.868 cm)
Mounting Plat
e Pem Studs
Backbox Mounting Holes
rcpscabb.cdr
www.PDF-Zoo.com
13
15
Table of Contents
Table of Contents
5
SECTION 1: System Overview
7
General
7
Features
7
Start-Up Procedure
8
Jumpers
9
1: Jumper JP1 - Ground Fault Detection
9
2: Jumpers JP2 and JP3
9
Coded/Noncoded Input Selection
9
LED Indicators
9
Specifications
10
General
12
SECTION 2: Installation
13
Backbox Mounting
13
NAC Circuit Wiring
15
1: Style y (Class B)
15
2: ZNAC-4 Class a Option Module
15
Addressable Module Mounting
16
NEC Power-Limited Wiring Requirements
17
SECTION 3: Programming Options
18
DIP Switch Settings
19
Programmable Features Description
20
1: Synchronization Type Selection
20
2: Synchronization Mode - Master/Slave
20
3: AC Fail Delay
20
4: Input/Output Function
21
Auxiliary Power Control
21
5: Charger Enable/Disable
22
6: Door Closers
22
SECTION 4: Trouble Supervision
23
Supervision Via FACP Notification Appliance Circuit
23
1: Supervision of FACP to FCPS Wiring
23
2: Supervision of FCPS-24S Faults
23
3: Trouble Relay
24
AC Loss Reporting Delay
24
SECTION 5: Applications
25
Controlling Four Nacs with One Input and Selective Silence
25
Controlling Three Nacs and One Door Holder with One Input
27
Split Temporal Mode of Operation
29
Remote Supply with Resettable and Nonresettable Power
31
Door Release Service for All Four Outputs
33
Multiple Synchronized FCPS-24S Power Supplies
34
Multiple Cascaded & Synchronized FCPS-24S Power Supplies
35
Cascaded FCPS-24S Supplies from Nonsynchronized Source
36
SECTION 6: Power Supply Requirements
37
Overview
37
Calculating the AC Branch Circuit
37
Calculating the System Current Draw
38
1: Overview
38
2: How to Calculate System Current Draw
38
Calculating the Battery Size
40
1: NFPA Battery Requirements
40
2: Selecting and Locating Batteries
40
