Notifier Honeywell UDS-4N

UDS-4 Installation and user manual PAGE - 33
UDS-4_manu M--203.1-UDS4N-ENG Rev A.1 NOTIFIER ITALIA

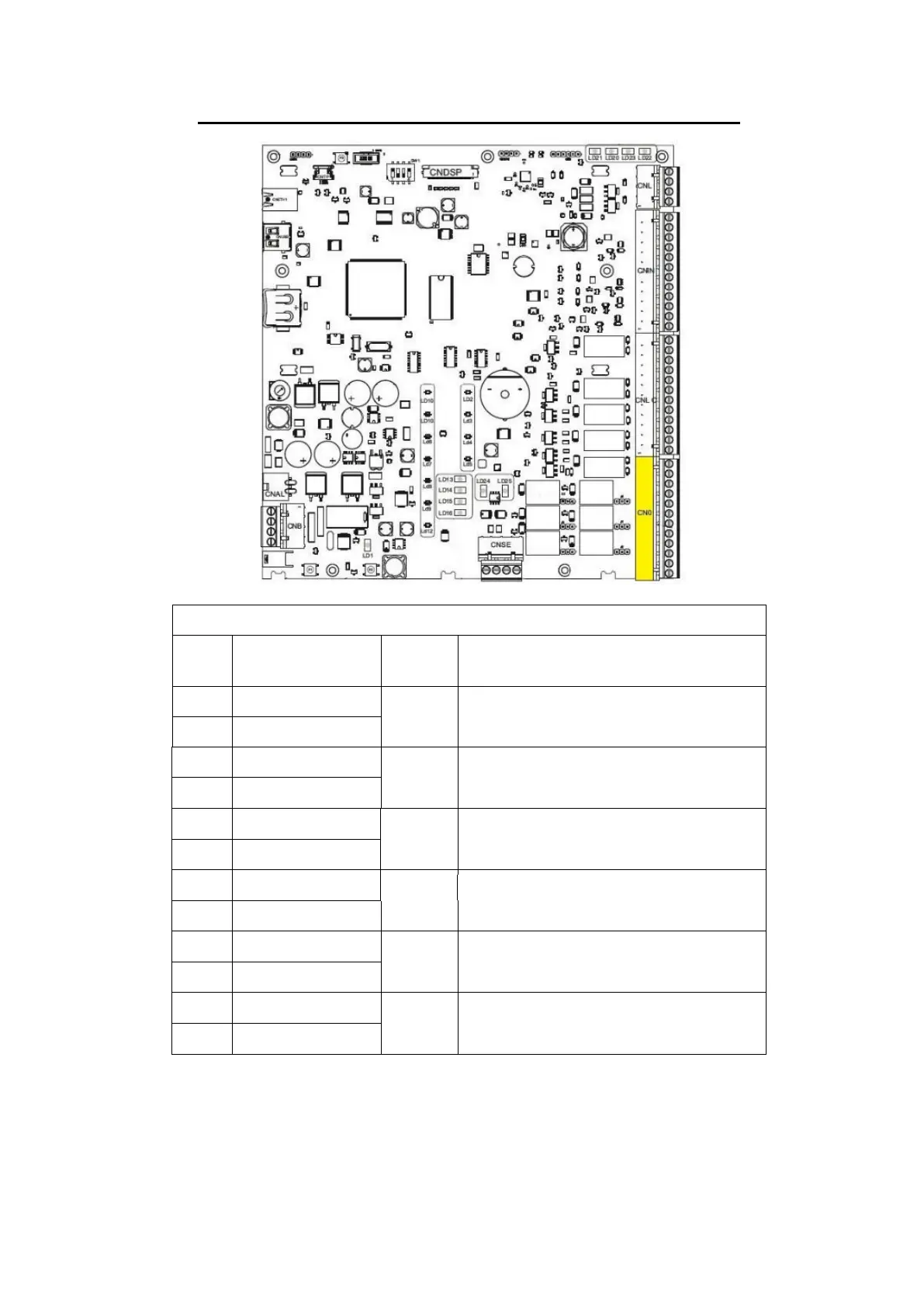

7.9 - Wiring diagrams for CN0 terminal block outputs
CN0
Num
Name
Relay /
Jumper
Description
1
GST NA-NC
RL2 /
J2
General fault
30V 2A NA-NC selectable via J2
2
GST C
3
RILAS NA-NC
RL3 /
J3
Release in progress
30V 2A NO-NC selectable via J3
4
RILAS C
5
PROLE NA-NC
RL4 /
J4
Active emergency extension
30V 2A NO-NC selectable via J3
6
PROLE C
7
MANU NA-NC
RL5 /
J5
Manual shutdown only active
30V 2A NO-NC selectable via J4
8
MANU C
9
INTEM NA-NC
RL6 /
J6
Emergency stop activated
30V 2A NO-NC selectable via J6
10
INTEM C
11
SCAR NA-NC
RL1 /
J1
Download event
30V 2A NO-NC selectable via J1
12
SCAR C
